| Prod Model: |
KC-24C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable Area: |
30-50 Square |
| Cooling Current: |
8.1A |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
15000-18000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
MEPS |
| China Energy Efficiency Standard: |
Level 3 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

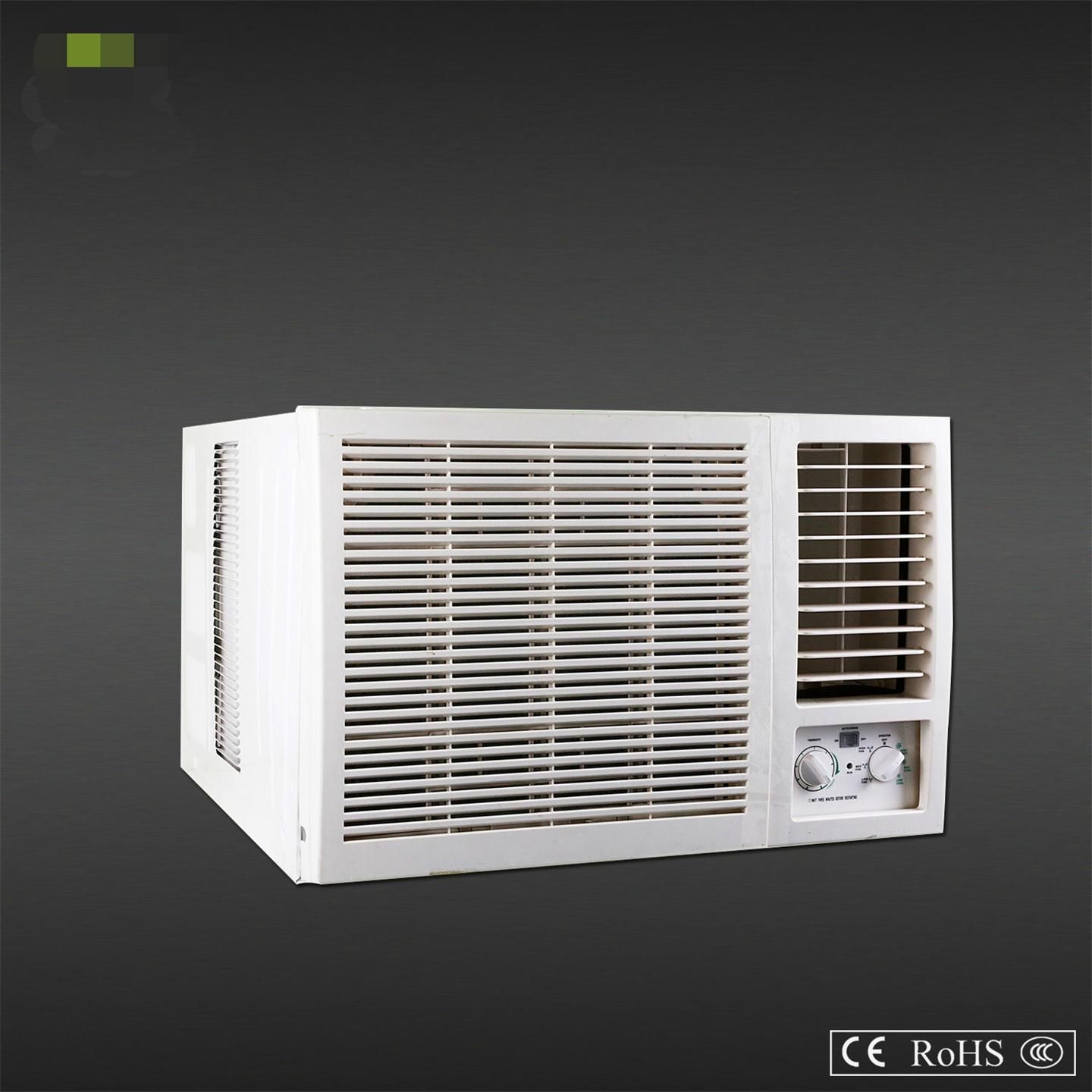

T1&T3 Window Air Conditioner(KC-18C)
Features:
1: High efficiency,low noise air guide design
2: World famouns brand rotary type compressor;
3: High Efficient Internal Thread Copper pipe for condensor and evaporator;
4. Self-evaprative system for condensing water
5: 3 fan speeds
6.High,Mid,Low to adjust cooling capacity
7: Low Voltage Startup, Auto-protection, Auto Restart;
8: Refrigerant: R410A
9: With ETL, RoHS, ISO9001, ISO14001 standard;
Parameters:
| Technical Specifications |
|
| Model No. | KC-18C | KC-24C |
| Type | T1 | T3 | T1 | T3 |
| Control type | Mechanical |
| Rated cooling capacity | Btu/h | 17700 | 14500 | 20500 | 17050 |
| W | 5200 | 4250 | 6000 | 5000 |
| Current | Cooling | A | 8.1 | 9.5 | 9.4 | 11.3 |
| Power input | Cooling | W | 1720 | 2040 | 2030 | 2420 |
| EER for cooling | Btu/h.w | 10.29 | 7.1 | 10.1 | 7.05 |
| W/W | 3.02 | 2.08 | 2.96 | 2.07 |
| Moisture removal | Liters/h | 1.9 | 1.9 | 2.1 | 2.1 |
| DB Temp. of Outlet(T1:27.C/19.C) | .C | 14.01 | 14.01 | 13.4 | 13.4 |
| Pressure | High(DP) | MPa | 4.5 | 4.5 | 4.5 | 4.5 |
| Low(SP) | MPa | 1.5 | 1.5 | 1.5 | 1.5 |
| Indoor noise level | dB(A) | 55 | 55 | 56 | 56 |
| Outdoor noise level | dB(A) | 61 | 61 | 63 | 63 |
| Power supply | 220V/50Hz; 220V/60Hz |
| Voltage Range | V | 198~253 | 198~253 | 198~253 | 198~253 |
| Refrigerant/Charge | Gram | R410A /820g | R410A /900g |
| Indoor air volume(Cooling/Heating) | m3/h | 750 | 750/750 | 750 |
| fan speed H/M/L | Cooling | rpm | 910/810/710 | 1000/910/830 |
| motor capacitor | Rated capacitance CR | µF | 8 | 8 |
| Rated voltage VR |
| 450VAC | 450VAC |
| Suitable area | m2 | 30~50 | 50~70 |
| Net dimensions (W x Dx H) | 660x680x430 | 660x680x430 |
| Net weight | 50 | 51 |
| Packing dimensions (W x Dx H) | 740x795x468 | 740x795x468 |
| Gross weight | 54 | 55 |
| Stuffing qty | 40'HQ | sets | 220 | 220 |
