| Prod Model: |
KC-18C-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable Area: |
30-50 Square |
| Cooling Current: |
8.1A |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
15000-18000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
MEPS |
| China Energy Efficiency Standard: |
Level 3 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

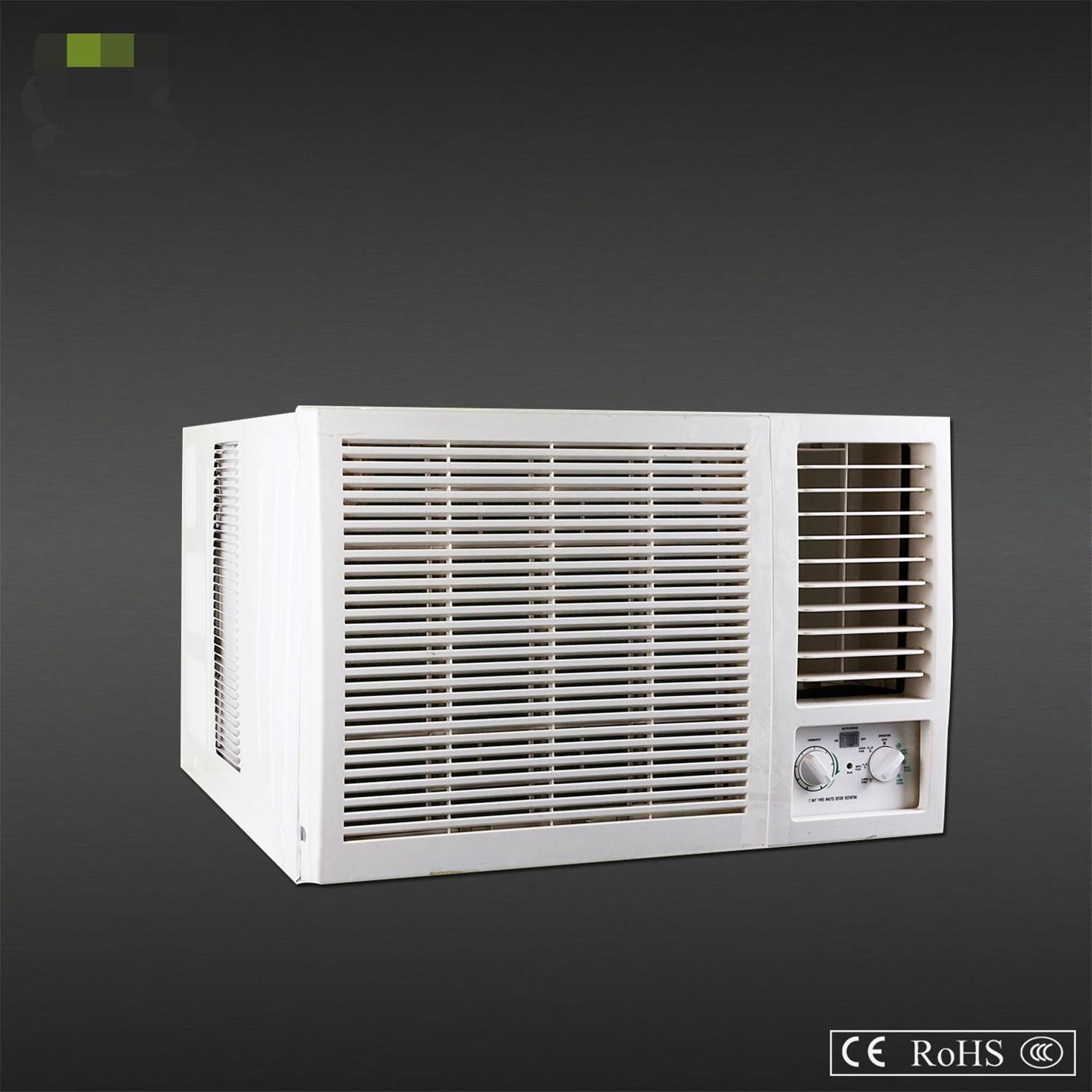

Window AC Specification for Mid-East market(KC-18C)
Features:
1: High efficiency,low noise air guide design
2: World famouns brand rotary type compressor;
3: High Efficient Internal Thread Copper pipe for condensor and evaporator;
4. Self-evaprative system for condensing water
5: 3 fan speeds
6.High,Mid,Low to adjust cooling capacity
7: Low Voltage Startup, Auto-protection, Auto Restart;
8: Refrigerant: R410A
9: With ETL, RoHS, ISO9001, ISO14001 standard;
Parameters:
| Technical Specifications |
|
| Model No. | KC-18C | KC-24C |
| Type | T1 | T3 | T1 | T3 |
| Control type | Mechanical |
| Rated cooling capacity | Btu/h | 17700 | 14500 | 20500 | 17050 |
| W | 5200 | 4250 | 6000 | 5000 |
| Current | Cooling | A | 8.1 | 9.5 | 9.4 | 11.3 |
| Power input | Cooling | W | 1720 | 2040 | 2030 | 2420 |
| EER for cooling | Btu/h.w | 10.29 | 7.1 | 10.1 | 7.05 |
| W/W | 3.02 | 2.08 | 2.96 | 2.07 |
| Moisture removal | Liters/h | 1.9 | 1.9 | 2.1 | 2.1 |
| DB Temp. of Outlet(T1:27.C/19.C) | .C | 14.01 | 14.01 | 13.4 | 13.4 |
| Pressure | High(DP) | MPa | 4.5 | 4.5 | 4.5 | 4.5 |
| Low(SP) | MPa | 1.5 | 1.5 | 1.5 | 1.5 |
| Indoor noise level | dB(A) | 55 | 55 | 56 | 56 |
| Outdoor noise level | dB(A) | 61 | 61 | 63 | 63 |
| Power supply | 220V/50Hz; 220V/60Hz |
| Voltage Range | V | 198~253 | 198~253 | 198~253 | 198~253 |
| Refrigerant/Charge | Gram | R410A /820g | R410A /900g |
| Indoor air volume(Cooling/Heating) | m3/h | 750 | 750/750 | 750 |
| fan speed H/M/L | Cooling | rpm | 910/810/710 | 1000/910/830 |
| motor capacitor | Rated capacitance CR | µF | 8 | 8 |
| Rated voltage VR |
| 450VAC | 450VAC |
| Suitable area | m2 | 30~50 | 50~70 |
| Net dimensions (W x Dx H) | 660x680x430 | 660x680x430 |
| Net weight | 50 | 51 |
| Packing dimensions (W x Dx H) | 740x795x468 | 740x795x468 |
| Gross weight | 54 | 55 |
| Stuffing qty | 40'HQ | sets | 220 | 220 |
About us:
Chuanglan is aiming at building its name in chean energy development and usage.By having hybrid solar air conditioner,air purifier,dehumidifier as its core products,it is also working to diversify in solar water heaters,atmospheric water generators,high energy drinkable water machines etc.A technicalization,industrialization and internationalization CHUANGLAN and SUNSNOW are appearing into the market.
Our products in other countries:
Contract:
Monica Gong
Chuanglan Solar Air Conditioner Co., Ltd.
Suzhou Sunsnow New Energy Technology Co., Ltd.
Address: #69 Jinxiu Rd, Zhitang Town, Changshu City. Jiangsu, China
Tel: 0512 8063 6822 |Mob: 0086 13915626004
Fax: 0086 512 5239 2621 |Web:www.jschuanglan.com
Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.
Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.
Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
