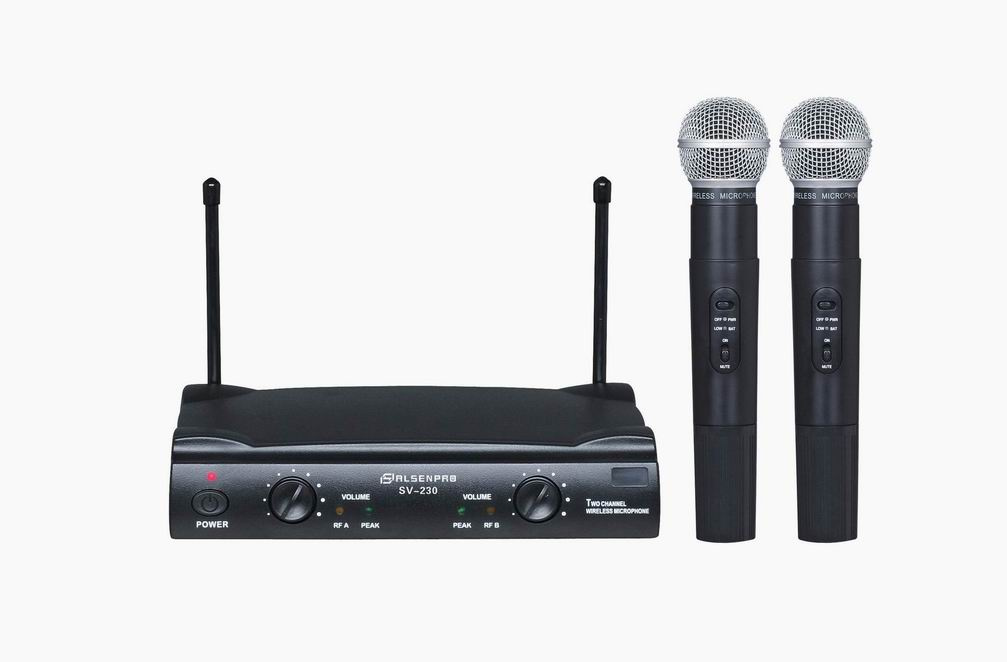

| Prod Model: |
SV-230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
Dual Channel |
| Signal Transmission: |
Wireless |
| Application: |
Voice |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
Product Description
Features:
1. VHF Wireless System
2. Fixed frequency
3. Dual channels
4. Plastic receiver case
5. Popular design
Specification:
System
Working range: -----------------------------50M
Frequency range: --------------180-280MHz
Receiver Receiving sensitivity: ---------------------------------- < 8uV
P/N Ratio: ------------------------------- > 50dB
De-emphasis: ---------------------------- 50uS
Output impedance: ---------------600 Ohms
Audio output: ----------------------------- 0-0.5V
Power: ---------------------------AC220V/110V
Dynamic range: ------------------------- ≥ 60dB
THD: --------------------------------------- ≤ 1%
Transmitter
Frequency stability: ------------------ ± 0.005%
Output power: -------------------------- ≤ 30mW
Suppression of stray radiation: ----- > 40dB
Modulate mode: ----------------------------- FM
Max. Frequency: ----------------------- ± 75KHz
Microphone: ------------------------- Dynamics
Pre-emphasis: ---------------------------- 50uS
