| Prod Model: |
LBG-509 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
20W |
| Place Of Origin: |
Guangzhou, Cn |
| Brand Name: |
Qqchinapa |
| Use: |
Hotel, School, Airport, Departmen, Church |
| Certificate: |
Ce, FCC, RoHS, CB |
| Protetion: |
High Temp, Overload&Short-C |
| Factory History: |
More Than 10 Years |
| Warranty: |
3 Years |
| Deliver Time: |
2-25days |
| Factory Ability: |
Factory Ability |
| Amplification Type: |
Active |
| Speaker Material: |
Plastic |
| Usage: |
Mobile Phone |
| Adjusting Method: |
Knob |
| Sound Channel: |
2 |
| Structure: |
Closed Enclosure |
| SNR: |
81-90dB |
| Function: |
No |
Product Description

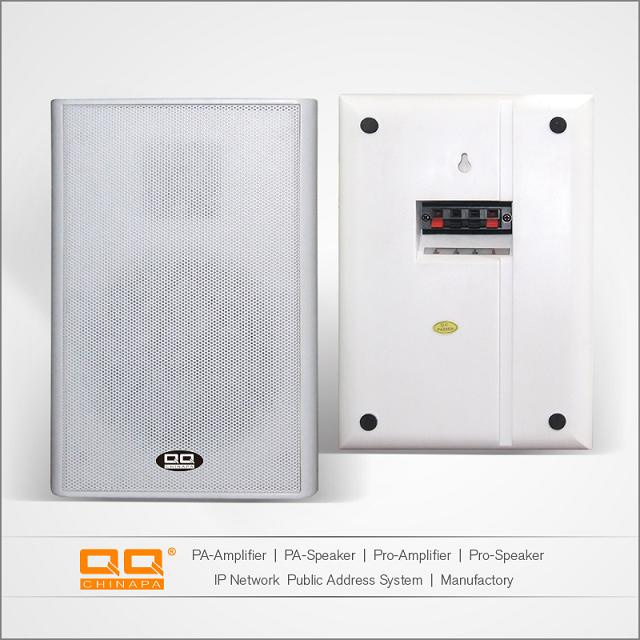

Fashion Speaker & Wall Mounted Speakers for indoor & outdoor public address system and amplifier system. the rated power is from 2.5W to 60W for your choose, Drive size has 4",5",6"8".it can be use in restaurant,bars,family,school,hospital,meeting room, easy to operate and install.
| Model | LBG-5084 | LBG-5085 | LBG-5086 | LBG-5088 |
| Drive | L:4"/H:1" | L:5"/H:1" | L:6"/H:1" | L:8"/H:1" |
| Rated Power | 2.5W/5W/10W/20W/8Ohms | 3.75W/7.5W/15W/30W/8Ohms | 5W/10W/20W/40W/8Ohms | 7.5W/15W/30W/60W/8Ohms |
| Line Voltage | 70-100V | 70-100V | 70-100V | 70-100V |
| Sensitivity | 87dB | 88dB | 87dB | 88dB |
| Frequency Response | 90-20KHz | 90-20KHz | 90-20KHz | 40-20KHz |
| Dimension mm | 220*150*135 | 255*178*155 | 310*213*195 | 417*289*255
|
| Material |
HIPS |
HIPS |
HIPS |
HIPS |
| Weight Kgs | 2.5 | 3.1
| 3.7
| 6.6
|

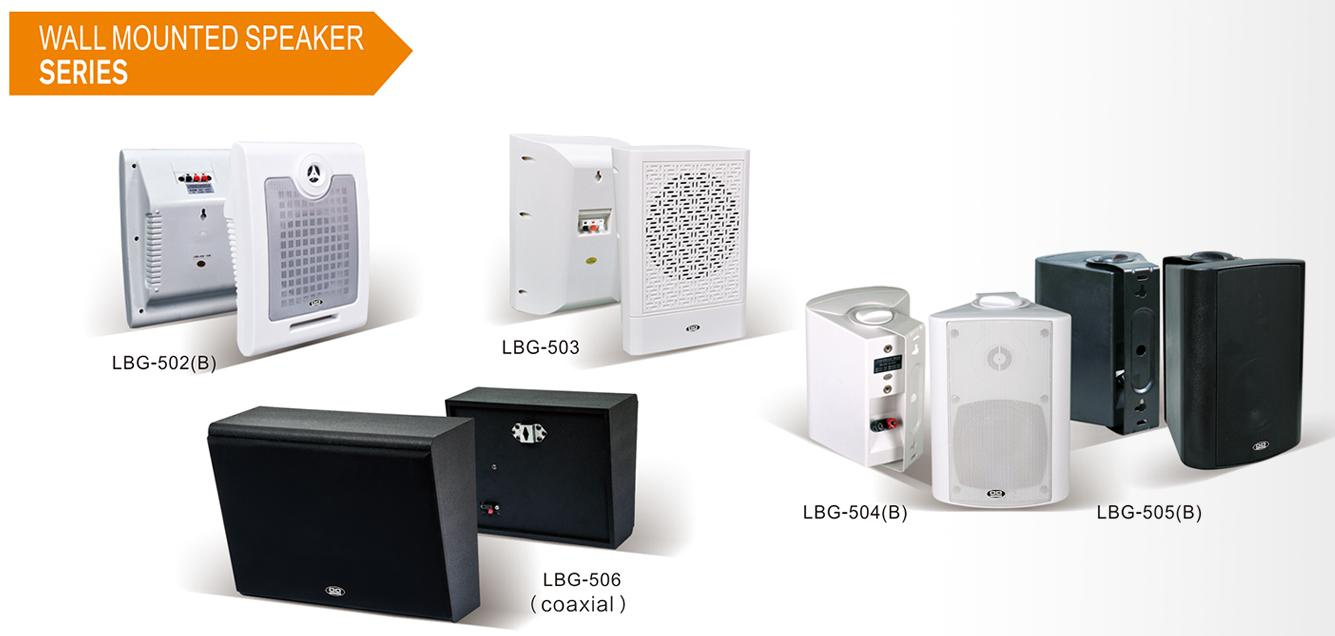

| Model | LBG-502 | LBG-502B | LBG-503 | LBG-504 | LBG-504B | LBG-505 |
LBG-505B | LBG-506
|
| Drive | L:6"/H:2"
| L:6"/H:2"
| 6"
| L:4"/H:2"
| L:6"/H:2"
| L:4"/H:2"
| L:6"/H:2"
| 6"
|
| Rated Power | 15W | 15W | 15W | 25W | 35W | 25W | 35W | 30W |
| Line Voltage |
70-100V |
70-100V |
70-100V |
100V |
100V |
100V |
100V |
100V |
| Sensitivity | 92dB | 91dB | 92dB | 89dB | 88dB | 89dB | 88dB | 98dB |
| Frequency Response | 130-16KHz | 130-16KHz | 150-15KHz
| 100-20KHz
| 70-20KHz
| 100-20KHz
| 70-20KHz
| 70-20KHz
|
| Dimension | 200*105*275 | 200*105*275 | 175*75*265 | 182*162*245 | 215*190*285 | 182*162*245 | 215*190*285 | 312*242*123 |
| Material | HIPS | HIPS | HIPS | HIPS | HIPS | HIPS | HIPS | M.D.F. |
| Weight Kgs |
1.4 |
1.2 |
1.1 |
2.5 |
3.5 | 2.5 | 3.5 |
3.2 |
