| Prod Model: |
PA-280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
280W-1000W |
| Usage: |
Public Address System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Sound Channel: |
3.1 |
| Output Number: |
8 |
| Voltage: |
AC 110V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Function: |
PA Amplifier |
Product Description

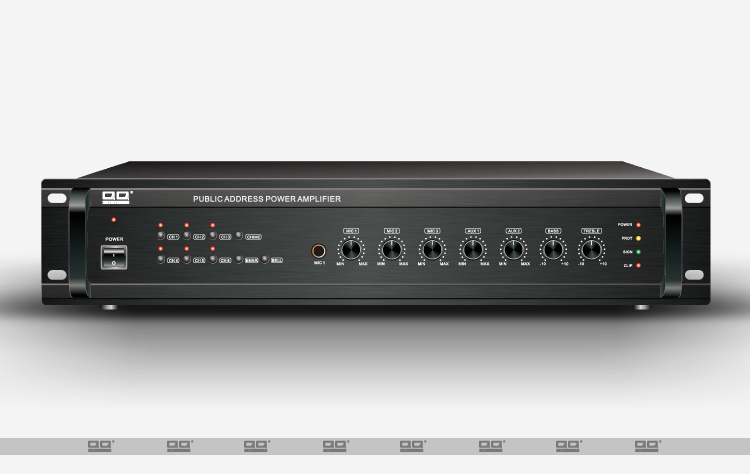

Pre-amplifier with 4zone+FM+USB+MMC+Wirless contronal+individual volume contronal(60-880w)
1: Plug play U disk, FM radio, MMC,wireless remote control

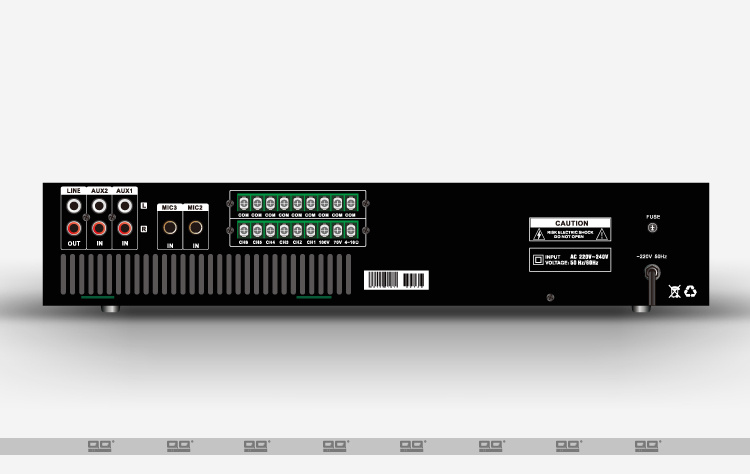

2: Three microphone inputs. Two auxiliary inputs, and one auxiliary outputs for link.
3: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
4: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
5: Muting function.
6: Four zone,Individual volume control, low and high tone control
7: Short circuit protection & alarm
8: Individual distributor for each channel
All-in-one public address device combining tuner, MP3 player, pre-amplifier and power amplifier together With USB port, supports running flash disk or portable hard disk Tuning station saving function after power failure 3 MIC inputs with individual volume control 2 Aux line inputs & 1 line output for additional mixer or amplifier link 1 emergency signal input Built-in chime generator with two types of tone Two levels of priority muting function: MIC1> Chime Bass, treble, and master volume control Output short-circuit protection and alarm function 3 types of speaker output: 100V, 70V, 4-16 Ω
| Model |
| PA-60 | PA-100 | PA-150 | PA-200 |
| Rated power |
| 60W | 100W | 150W | 200W |
| Line voltage |
| 70-100V | 70-100V | 70-100V | 70-100V |
| impedance |
| 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω |
| Dimension |
| 485*360*90 | 485*360*90 | 485*360*90 | 485*395*90 |
|
|
| Model | PA-280 | PA-380 | PA-480 | PA-680 | PA-880 |
| Rated power | 280W | 380W | 480W | 680W | 880W |
| Line voltage | 70-100V | 70-100V | 70-100V | 70-100V | 70-100V |
| impedance | 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω |
| Dimension | 485*395*90 | 485*395*90 | 485*445*90 | 485*445*90 | 485*445*90 |
