| Prod Model: |
STX812M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Rating: |
450W |
| Frequency Range (-10dB): |
50 Hz-20 kHz |
| Frequency Response (±3dB): |
75 Hz-20 kHz |
| Sensitivity (1W/1m): |
95dB |
| Rated Maximum Spl: |
130dB Spl Peak |
| Input Connectors: |
Two Nl4 |
| Operational Modes: |
Full Range/Bi-AMP |
| Noise: |
<95dB |
| Operation Mode: |
Wire / Remote Control |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker Material: |
Birch Plywood |
| Application: |
Professional Performance |
Product Description

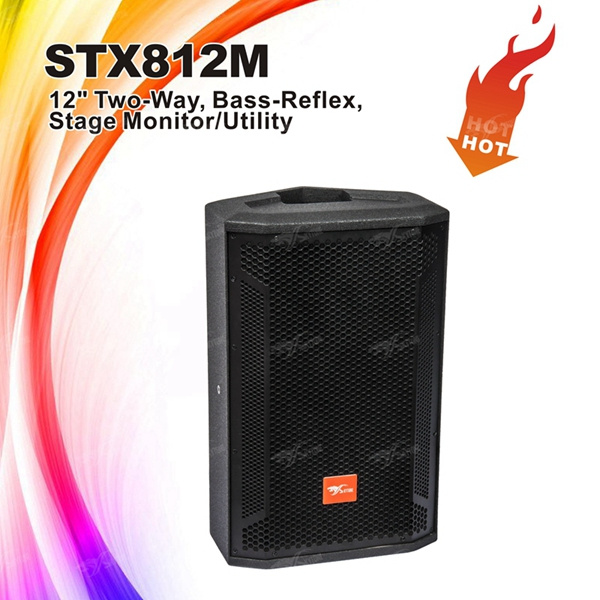

Jbl Stx812m Style Full Frequency Speaker Box
Jbl Stx812m Style Full Frequency Speaker
12" Two-Way, Bass-Reflex, Stage Monitor/Utility
12" two-way floor monitor
Designed specifically to be a high performance 12" two-way floor monitor, it can also do double duty as a utility speaker for use on a tripod stand or over a subwoofer, utilizing a single-position pole mount. A 70 degree by 70 degree waveguide is utilized for precise coverage.
Features:
--Compact and low-profile for minimal obstruction of audience sight-lines.
--70° X 70° Nominal coverage.
--Bi-amplified or full-range passive operation.
--Pole socket for applications requiring pole or tripod mounting.
--High power handling, low distortion Vented Gap Cooling™ LF driver.
--3 in. (diaphragm) neodymium magnet compression driver.
--Rugged DuraFlex™ Coated enclosures sized to be truck pack friendly.
--14-Gauge steel grille lined with acoustically transparent cloth.
Here we promise:
Quality and reputation is first.
Service is best.
Delivery on time.
SKYTONE are committed to bring you the best speakers and amplifiers at the best possible price.
SKYTONE sell directly to you at factory prices. NO MIDDLE MEN.
SKYTONE will stick by you and won't let you down.
Welcome to visit our company for feeling real sound.
| Jbl Stx812m Style Full Frequency Speaker |
| Specifications : |
| Frequency Range (-10dB): | 50 Hz-20 kHz |
| Frequency Response (±3dB): | 75 Hz-20 kHz |
| Coverage Pattern: | 70×70(degree) nominal |
| Sensitivity (1W/1m): | 95dB |
Power Rating:
(Cont. Pink Noise/Program/Peak) | 450W/900W/1800W
(Continuous/Program/Peak) |
| Rated Maximum SPL: | 130dB SPL Peak |
| Nominal Impedance: | 8Ω |
| Input Connectors: | Two NL4 |
| Operational Modes: | Full Range/Bi-Amp |
| Dimensions(HxWxD): | 571mm x 355mm x 264mm
(22.5"x 13.4"x 10.4") |
| Net Weight: | 19 kg(42lbs) |
Applications:
1. Live performance stage monitoring
2. Speech reinforcement
3. Reinforcement of vocal and acoustic music
4. High-performance satellite speaker for use with subwoofers
