| Prod Model: |
SFS3T-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Stainless Steel 1.5-2.2mm 3t Sea Water Ice Flake M |
| Refrigeration Capacity: |
18 Kw |
| Ice Machine Total Input: |
10.2kw |
| Ice Machine Power Supply: |
380V/50Hz/3p or Else |
| Nominal Current: |
18A |
| Evaporating Temp.: |
-22°c |
| Condensing Temp.: |
45°c |
| Flake Ice Temp.: |
-5°c |
| Ice Maker Compressor: |
Bock/Bitzer |
| Electrical Parts: |
Schneider |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Description

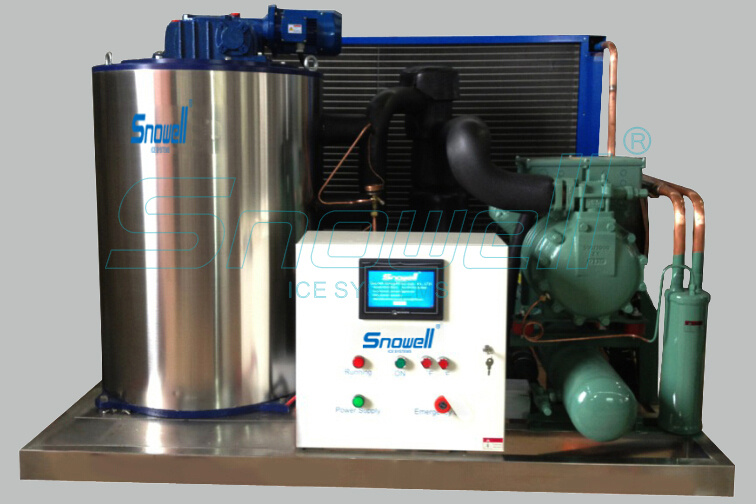

Stainless Steel 1.5-2.2mm 3T Sea Water Ice Flake Maker
Model: SF3T-R4A
Flake Ice Maker Daily Capacity: 3000kg
Ice Maker Compressor: Copeland from USA
Cooling way: water Cooled
Production Capacity Available: 1-60T Per Day
Note: We have sea water flake ice plants of small, medium, large capacity, which ranges from 1t to 30t. All the specifications can be personalized according to your requirments.
Application:
1. Freezing drinks, mix wines. cool foodstuffs, make ice pastries and keep fresh.
2. Widely used in hotel, bar, KTV, restaurant, catering, supemarket, ballroom, etc.
3. Food production process.
4. Cold accumulation.
5. Chemical industry process, etc.
7. Fish industry
8. Special fields
Additional Detailed Specifications for the sea water flake ice maker:
| NO. | Description | Specs. |
| 1 | Product Name | Food Refrigeration Snowell 3T flake ice maker |
| 2 | Refrigeration capacity | 19.5KW |
| 3 | Total Input | 13.8kW |
| 4 | Cooling mode | Air cooled |
| 5 | Evaporator structure | Spiral groove |
| 6 | Evaporating temp. | -22°C |
| 7 | Condensing temp. | 45°C |
| 8 | Flake ice temp. | -5°C |
| 9 | Thickness of flake ice | 1.5-2.2mm |
| 10 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 11 | Design ambient temp. | 25°C |
| 12 | Design water inlet temp. | 18°C |
Ice flake maker machine Features
Auto control
Micro-computer control system will give friendly operating experience .
* Perfect failure searching system and safety unit make the machine operation as simple as home appliance.
High Capacity
Makes from 1 to 30 MT tons of ice per 24 hours, depending on the model
Economical
* Produces more ice than any other ice maker using an equally rated compressor
* Lowest refrigeration losses due to special fiberglass insulated enclosure.
* Easy to install & low maintenance due to high reliability components
Dependable
* Built for industrial use with high quality heavy-duty parts.
* Designed with a stationary double-walled evaporator and no refrigerant seals to eliminate leaks.
* Includes important safety features, such as a see-through inspection hatch with safety switch mechanical load limit switch, emergency stop switch and jog switch.
* Applicable ambient temperature range from -5°C to 40°C
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines (like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2: What is the payment terms and trder terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
