St7920 COB 122X32 Graphic LCD Display

Prod Model:	YB12232ZE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format:	122X32 Dots
Outline Dimension:	79*28*8.7mm
Visual Area:	60*18mm
Active Area:	48.76*14.68mm
Diagonal Size:	2 Inch
IC Package:	COB
IC Or Equivalent:	St7920 or Eqv
Appearance:	Blue/Yellow Green/Grey
Power Supply(Typ):	3.3V/5V
Backlight Current (Typ):	15mA
Type:	LCM
Usage:	Small-sized LCM
LCD Drive Mode:	Static Drive LCD Module
Digital LCD Module Type:	Counting Module
Display Technology:	COB
Response Time:	2ms
Customized:	Customized

Product Description

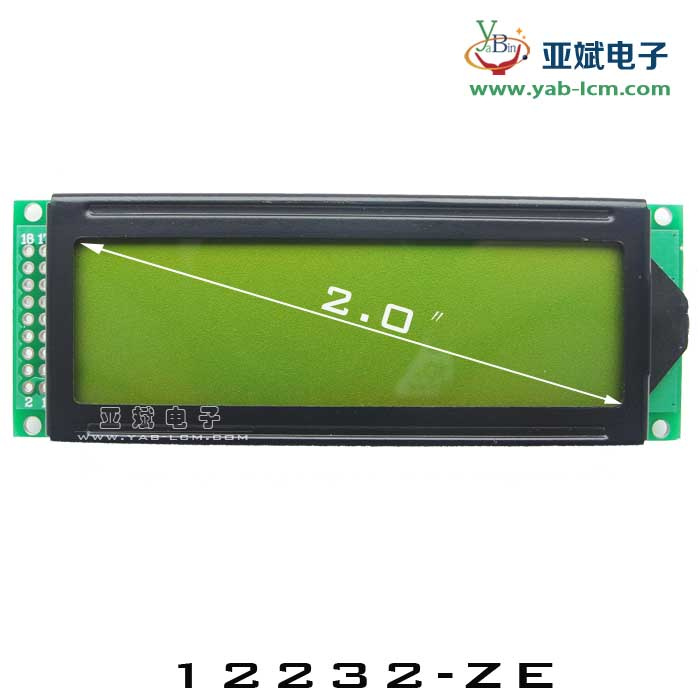

ST7920 COB 122X32 graphic lcd display


1.Product Description

Manufacturer	YaBin
Series Number	YB12232ZE
Display Format	122X32  Dots
Outline Dimension	79*28*8.7mm
Visual Area	60*18mm
Active Area	48.76*14.68mm
Diagonal Size	2'
Dot (Pixel) Size	0.36*0.42mm
Dot (Pixel) Pitch	0.4*0.46mm
IC Package	COB
IC or Equivalent	ST7920 or EQV
Interface	8-bit/4-bit Parallel,3-SPI Serial
Interface	parallel/serial
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)	3.3V/5V
Backlight Current (Typ)	15mA
Operating Temp	-20ºC~70ºC
Storage Temperature	-30ºC~80ºC
If accept customized	Yes
RoHS Compliance	Yes

2.Interface pin connect:

ITEM	SYMBOL	LEVEL	FUNCTIONS
1	VSS	0V	Power Ground
2	VDD	5.0V	Power Supply For Logic
3	V0/NC	-	Contrast Adjust
4	RS(CS)	H/L	H:Data L:Command		H:Enable the data transfer L:Reset the serial data counter
5	R/W(SID)	H/L	H:Read L:Write		Seril data input
6	E(SCLK)	H,H->L	Enable Signal		Seril clock input
7-14	DB0-DB7	H/L	Data Bus		Keep open when choosing serial bus MPU interface
15	PSB	H/L	H:Parallel  L:Serial
16	RST	H/L	Reset Signal
17	LEDA	5.0V	Power Supply For LED Backlight
18	LEDK	0V

3. Packaging & Delivery

      Packaging Detail:
      1>.Cartons, Cupboard, EPE, Blister Tray.
      2>.About how many products in one package, it is up to the size of products.
      3>.according to customer request.
     Delivery Detail: 7-10 days



4. Product Range

  According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight.
1>.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG ( 8   Digital LCM )
2>.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters
3>. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,
     192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.
4>. LCD Display Module, TFT,OLED.



5. Our advantages

1>.Skilled technology and strict for quality.
2>.Powerful products design and develop.
3>.Experienced sales team
4>.Prompt delivery and service
5>.Low cost solutions and high quality product.
6>. Backlight Replaceable
7>. LED backlight
8>. Wide view angle
9>. High Quality
10>. Produced in our own factory
11>. Reasonable Price



6. OEM Service

OEM is accepted Customized LCD Module we are welcome Various LCD Display Mode Available
Various LED Backlight Color Available Various Temperature Range Available



7. FAQ

1>. Long Term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every
customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller
IC may stop the production,we'll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we'll make the new
tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.

2>. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the
date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment.
If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3>. What is not covered?

Warranty is void and no repair or replacement is granted under the following conditions:
3-1>. Evidence of mechanical stress to parts including but not limited to.
3-2>. Damaged or broken glass or touch screen.
3-3>. Damaged conductors/components.
3-4>. Damaged polarizer.
3-5>. Damaged mounting holes.
3-6>. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind.
3-7>. Addition or removal of components.
3-8>. Evidence of damage caused by applying incorrect voltage.
3-9>. Evidence of damage caused by operating outside of specified temperature range.
3-10>.Evidence of damage caused by electrostatic discharge (ESD).

4>. What if I have a defective product under warranty?

We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product.
"Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos.

5>. How do I make a warranty claim?

For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our "Return"policy for more detail.)
