| Prod Model: |
YB1602E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
16X2 Dots |
| Outline Dimension: |
84(W)X44(H)X12(T)mm |
| Visual Area: |
62.0×18.0mm |
| Active Area: |
55.45(W)X10.75(H)mm |
| Diagonal Size: |
2.6" |
| IC Or Equivalent: |
Splc780c/Hs44780/Ks0066 or Equivalent |
| Interface: |
6800 8-Bit/4-Bit Parallel |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ): |
5V/3.3V |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Character |
| Response Time: |
3ms |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
6.0 |
Product Description
>>Company profile
Shenzhen yabin electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises
Products cover the TN, HTN, the STN, FSTN, TFT LCD series products, including COB, TAB, COG, etc. Series of liquid crystal display module. The main products are: character lattice, the graph lattice, character and period of code standard or non-standard modules, and can customize according to the requirements of your company processing all kinds of liquid crystal display module.
>>product description

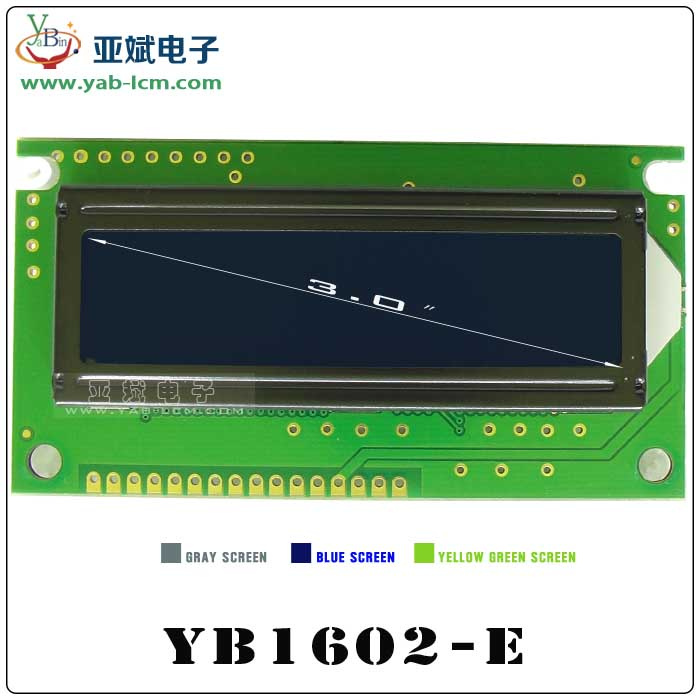

16 * 2 blue LCD display with different size module
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB1602-E |
| Display Format | 16x2 Dots |
| Outline Dimension | 84(W)x44(H)x12(T)mm |
| Visual Area | 62.0×18.0mm |
| Active Area | 55.45(W)x10.75(H)mm |
| Character Size | 2.95x5.55mm |
| Diagonal Size | 2.6" |
| Dot (Pixel) Size | 0.55X0.65mm |
| IC Package | COB |
| IC or Equivalent | SPLC780C/HS44780/KS0066 or Equivalent |
| Interface | 6800 8-bit/4-bit Parallel |
| Interface | parallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 5V |
| Backlight Current (Typ) | 15mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
>> interface definition
| ITEM | SYMBOL | LEVEL | FUNCTIONS |
| 1 | VSS | 0V | Power Ground |
| 2 | VDD | +5V | Power Supply For Logic |
| 3 | V0 | - | Contrast Adjust |
| 4 | RS | H/L | H: Data L: Command |
| 5 | R/W | H/L | H: Read L: write |
| 6 | E | H,H→L | Enable Signal |
| 7~14 | DB0~DB7 | H/L | Data Bus |
| 15 | LEDA | +5V | Power Supply For LED Backlight |
| 16 | LEDK | 0V |
>>The packing and shipping
Packaging:
1).Cartons, Cupboard, EPE, Blister Tray.
2).About how many products in one package, it is up to the size of products.
3).according to customer request.
Shipping:
Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
>>LCM module production process
SMT production:PCB input→Solder paste printing→Printing detection→Component placement→Visual inspection before furnace→Reflow soldering→Visual inspection→Complete the collecting plate→AI/MI
Dependend IC production:Clean the PCB→Drops of glue→Chip paste(solid crystal)→IC cable→test→Black rubber sealing→Heat curing→test→Put in storage
LCM production:SMT→Dependend (IC)→Assembly→test→packaging→The finished product warehouse→shipment
>>Material source
1).Tianma LCD (glass)
2).Ling Yang IC
3).Gold-plated PCB (printed circuit board)
4).Japan's murata electronic components
5).The LED backlight power supply
>>Competitive Advantages
1).High Quality. RoHS ,SGS ISO9001 compliant. Every products are strictly checked by our quanlity control department before shipment.
2). Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3).Best Service. We provide best pre-sales and after-sales service to you
4).Custom Design,can specially meet your needs
5).Samples available on request
6).Small MOQ orders can be negotiated
