| Prod Model: |
Heat pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
Porcelain Steel |
| Stand: |
Aluminum |
| Solar Tube: |
Heat Pipe |
| Insulation Layer: |
Polyurethane Foam |
| Housing Material: |
Galvanized Steel |
| Collector Components: |
Glass Vacuum Tube |
Product Description

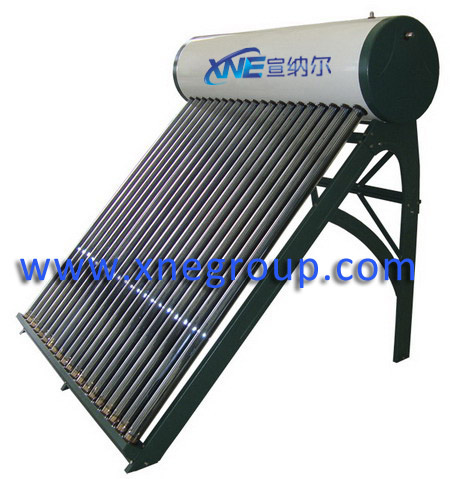

Solar geyser, Pressure solar water heater, pressurized solar water heater:
Water tank and Supporting stand
Material of inner tank Enameled steel
Material of outer tank Aluminum zinc steel
Operational pressure To 0.6 MPA
Inlet and outlet connections G 1/2, G 1/2
Electric heating element 1500W / ~240V / 50 Hz
Heat - insulation Polyurethane foam 65mm without freon
Material of Supporting stand Aluminium alloy
Working Temp. From -40 ° C to +100 ° C
Features:
Heat pipe inside vacuum tube for heat transfer with big power, high efficiency, long service life;
No water in the tube, one tube broken don't influence the system working;
Anti hail drops, anti freeze;
With electric heater inside the tank, constant hot water is available all the year.
|
Model |
Aperture area (m2) |
SHCMV Tube |
Capacity
(Liter) |
Qty. per 20' /40' Container |
|
Diameter |
Length |
No |
|
PA-100-70/1900-10 |
1.42 |
70mm |
1900mm |
10 |
100 |
40/80 |
|
PA-150-70/1900-15 |
2.21 |
70mm |
1900mm |
15 |
150 |
30/54 |
|
PA-200-70/1900-20 |
2.83 |
70mm |
1900mm |
20 |
200 |
23/46 |
|
|
|
Model |
Aperture area (m2) |
Heat Pipe Tube |
Capacity
(Liter) |
Qty. per 20' /40' Container |
|
Diameter |
Length |
No |
|
PB-100-58/1800-12 |
1.45 |
58mm |
1800mm |
12 |
100 |
45/90 |
|
PB-140-58/1800-16 |
1.93 |
58mm |
1800mm |
16 |
140 |
32/64 |
|
PB-170-58/1800-20 |
2.41 |
58mm |
1800mm |
20 |
170 |
27/54 |
|
PB-200-58/1800-24 |
2.9 |
58mm |
1800mm |
24 |
200 |
23/46 |
Changzhou XNE Group is a leading manufacturer with the research and application of solar thermal products, which is specialized in Enamel Hot Water Storage Tanks, Solar Water Heaters, Solar Collectors, Flat Plate Collectors with the most advanced facilities and qualified workers. We are located in Changzhou city nearby Shanghai and cover an area of 32, 000 square meters. We have passed the approvals of Solar Keymark, WaterMark, IEC 60335, CB, ISO9001, ISO14001, CE, and SGS inspection. Our products have been exported to over 80 countries in the past years.
We have been engaged in the solar thermal products for many years. With our scientific research unit's cooperative development with Nanjing Aerospace University, our new generation solar water heater with blue color - titanium gold tank has been published. Using the seamless enamel technology, it has high-tech digital design. It also has such merits as strong and compression-resistant outside, with new craft and new material. Simultaneously we have also solved the problems which have puzzled the domestic and foreign experts. We take the quality as a foundation, take the service as a core, pays attention to the detail as the key point and take the standard service as the guarantee. With advanced science and technology, we have set up the domestic first-class enterprise image and the international well-known brand image. Our products are popular in the European, American, and Southeast Asian markets, and have won domestic and foreign user communities' favor and high praise.
