| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Color: |
Sliver, Black |
| Working Pressure: |
6 Bar |
| Wind Stress: |
180km/H |
| Hot Water Output: |
300l |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Certification: |
CB |
Product Description

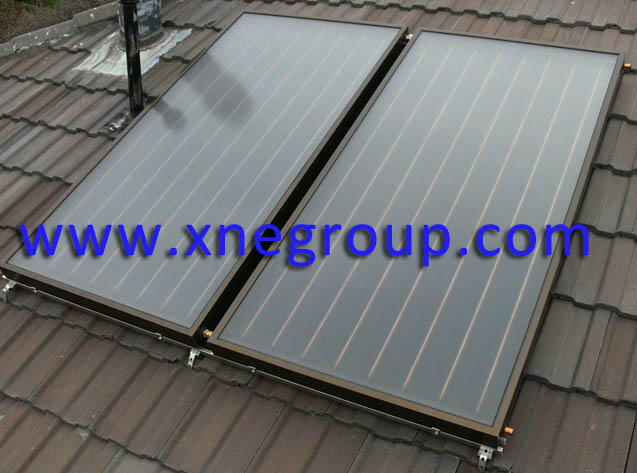

Flat Plate Solar Collector / Flat Panel Solar Collector / Solar Flat Panel
---XNE Group Solar water heater ----- We have passed the approvals of？Solar Keymark, WaterMark, IEC 60335, CB, ISO9001, ISO14001, CCC, CE, TUV inspection
XNE Flat Plate Solar Collector has a high efficiency, stable performance and long service life. Ultrosonic welding ensures the quick conduction from the thermal heat to the risers. It can endure high temperature without leakage. Its operation temperation can reach -35 ~ +120 degree centigrade. Patterned temper glass or low iron temper glass is not easy to be broken even under very high transmission. Low emission black chrome or magnetic blue sputtering coating imported from Germany has higher absorption rate.？
|
Model |
FB-2C |
FB-2K |
FB-2T |
|
Dimension (mm) |
2000 x 1000 x 80 |
2000 x 1000 x 80 |
2000 x 1000 x 80 |
|
Surface Area (m2) |
2 |
2 |
2 |
|
Absorber Area (m2) |
1.84 |
1.84 |
1.84 |
|
Working Pressure (bar) |
6 |
6 |
6 |
|
Header Pipes(mm) |
Copper TP2 22*0.8 |
Copper TP2 22*0.8 |
Copper TP2 22*0.8 |
|
Riser Tubes(mm) |
Copper TP2 10*0.6 |
Copper TP2 10*0.6 |
Copper TP2 10*0.6 |
|
Absorber Structure |
Grid, Full-surface |
Grid, Full-surface |
Grid, Full-surface |
|
Absorber Coating |
Black chrome |
Blue titanium |
Blue titanium from Germany BlueTec |
|
Welding |
Laser |
Laser |
Laser |
|
Absorption |
97%±2% |
94%±2% |
95%±2% |
|
Emissivity |
10%±2% |
6%±1% |
5%±1% |
|
Insulation Material |
Rock wool, 40mm |
Rock wool, 40mm |
Rock wool, 40mm |
|
Frame |
Aluminum alloy 6063 |
Aluminum alloy 6063 |
Aluminum alloy 6063 |
|
Frame Color |
Silver / Black |
Silver / Black |
Silver / Black |
|
Cover Glass |
Low iron textured tempered glass |
Low iron textured tempered glass |
Low iron textured tempered glass |
|
Cover Glass thickness |
3.2 mm |
3.2 mm |
3.2 mm |
|
Glass Transmittance |
>92% |
>92% |
>92% |
|
Testing Pressure |
12 bar |
12 bar |
12 bar |
|
Hot Water Output (L) |
100L-150L |
100L-150L |
100L-150L |
|
Back Sheet |
Galvanized steel |
Galvanized steel |
Galvanized steel |
|
Sealing Material |
EPDM |
EPDM |
EPDM |
|
Qty. per 20'/40' Container |
120 / 240 |
120 / 240 |
120 / 240 |
Changzhou XNE Group is a leading manufacturer with the research and application of solar thermal products, which is specialized in Enamel Hot Water Storage Tanks, Solar Water Heaters, Solar Collectors, Flat Plate Collectors with the most advanced facilities and qualified workers. We are located in Changzhou city nearby Shanghai and cover an area of 32, 000 square meters. We have passed the approvals of Solar Keymark, WaterMark, IEC 60335, CB, ISO9001, ISO14001, CE, and SGS inspection. Our products have been exported to over 80 countries in the past years.
We have been engaged in the solar thermal products for many years. With our scientific research unit's cooperative development with Nanjing Aerospace University, our new generation solar water heater with blue color - titanium gold tank has been published. Using the seamless enamel technology, it has high-tech digital design. It also has such merits as strong and compression-resistant outside, with new craft and new material. Simultaneously we have also solved the problems which have puzzled the domestic and foreign experts. We take the quality as a foundation, take the service as a core, pays attention to the detail as the key point and take the standard service as the guarantee. With advanced science and technology, we have set up the domestic first-class enterprise image and the international well-known brand image. Our products are popular in the European, American, and Southeast Asian markets, and have won domestic and foreign user communities' favor and high praise.
