| Prod Model: |
KF80-A/100F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cop: |
4.12 |
| Water Tank Volume: |
100L |
| Rated Outlet Water Temp.: |
55c |
| Max Outlet Water Temp.: |
60c |
| Power Supply: |
220-240V/50Hz/1pH |
| Compressor Type: |
Rotary |
| Number Of Compressors: |
1 |
| Throttling Device: |
Capillary |
| Fan Discharge: |
Horizontal |
| Fan Quantity: |
1 |
| Heat Source: |
Air-source + Water-source |
| Certification: |
RoHS |
| Work Environment: |
Common Heat Pump |
| Application: |
Villa Family |
Product Description

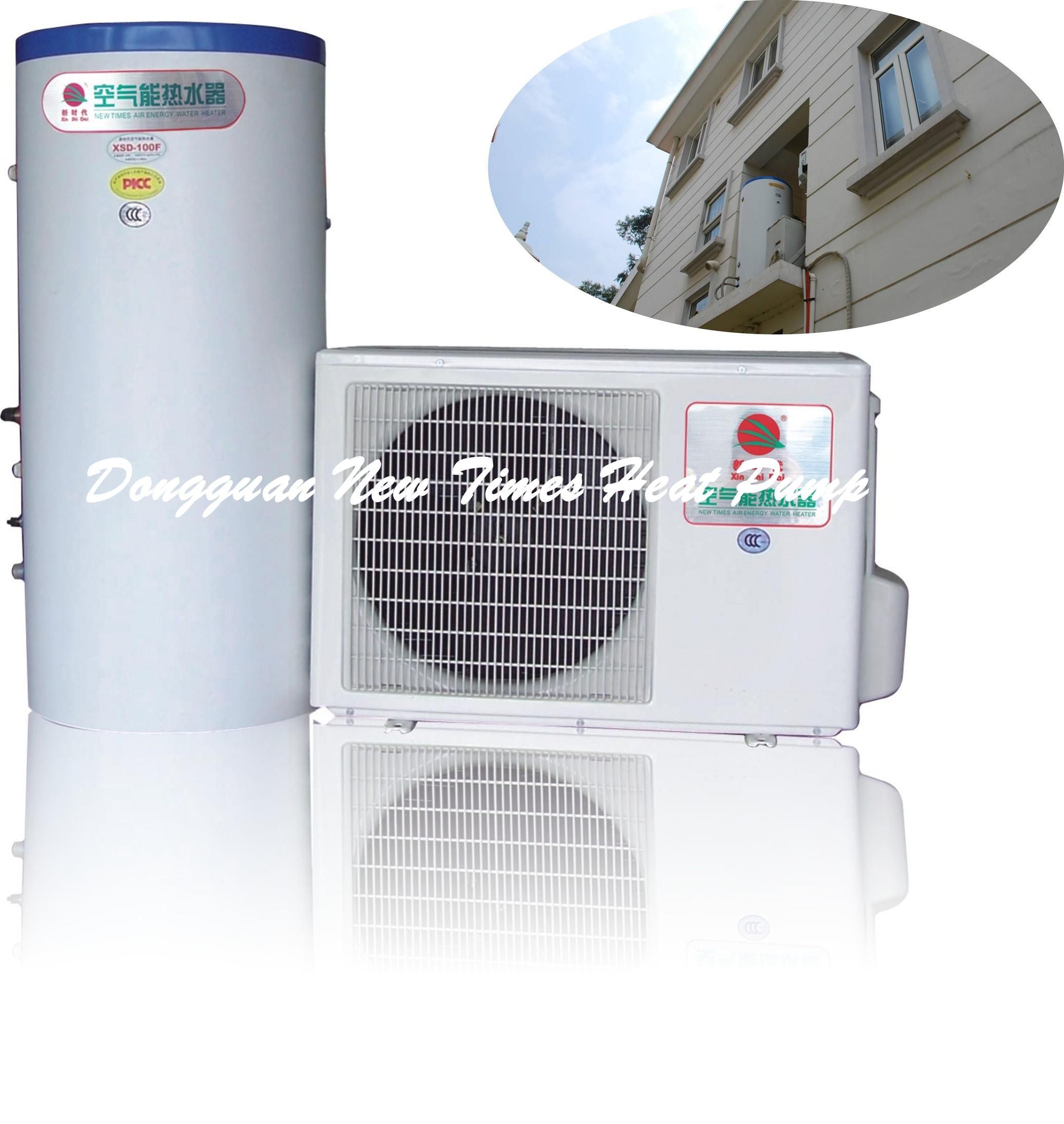

This type of Domestic Split Heat Pump adopts copper/ss316 coil heat exchanger inside/outside the pressurized water tank, supplying sanitary hot water for homes and residence.
Features
1. Intelligent defrosting
2. Famous brand rotary compressor
3. R22/R410A refrigerant
4. Horizontal fan discharge
5. Safe, reliable, stable running & durable
6. Concise design
7. Easy installation & operation
8. Intelligent controller
Optional:
1. Pressured water tank with external copper coil heating exchanger
2. Pressured water tank with internal copper/ss316 coil heating exchanger.
|
Model |
|
KF120-A/200F |
Heating capacity |
KW |
4.9 |
|
COP |
|
3.98 |
|
Water tank volume |
L |
200 |
|
Rated heated water output |
L/h |
105 |
|
Rated outlet water temp. |
° C |
55 |
|
Maxoutlet water temp |
° C |
60 |
|
Rated power input |
KW |
1.23 |
|
Rated current |
A |
5.89 |
|
Power supply |
Voltage/Hz/Phase |
220V/50Hz/1Ph |
|
Compressor type |
|
Rotary |
|
Number of Compressors |
|
1 |
|
Heat exchanger type |
|
Copper coil pipe |
|
Throttling device |
|
Capillary |
|
Fan type |
|
Low noise high efficiency axial type |
|
Fan discharge |
|
Horizontal |
|
Fan quantity |
|
1 |
|
Fan input |
W |
60 |
|
Fan speed |
RPM |
830 |
|
Ambient temperature |
° C |
(-10 ° C~43 ° C) |
|
Refrigerant |
|
R22/R410A |
|
Noise in 1 meter distance |
dB |
≤ 54dB(A) |
|
Water pipe size |
|
Rc3/4 |
|
Cabinet |
|
Steel with powder coated |
|
Low pressure protection system |
|
Yes |
|
High pressure protection system |
|
Yes |
|
Water flow switch |
|
No |
|
Automatic defrosting system |
|
Yes |
|
Product dimensions |
MM |
850× 260× 540 |
|
Packaging dimensions |
MM |
930× 370× 620 |
|
Product dimensions(water tank) |
MM |
555*1333 |
|
Packaging dimensions(water tank) |
MM |
640*620*1390 |
|
Net weight |
KG |
33 |
|
Gross weight |
KG |
38 |
|
Net weight(water tank) |
KG |
48 |
|
Gross weight(water tank) |
KG |
72 |
|
Testing condition |
Ambient temp. (DB/WB) = 20 ° C / 15 ° C, Inlet/outlet water temp. = 15 ° C /55 ° C |
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
