| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Beauty Salons |
Product Description

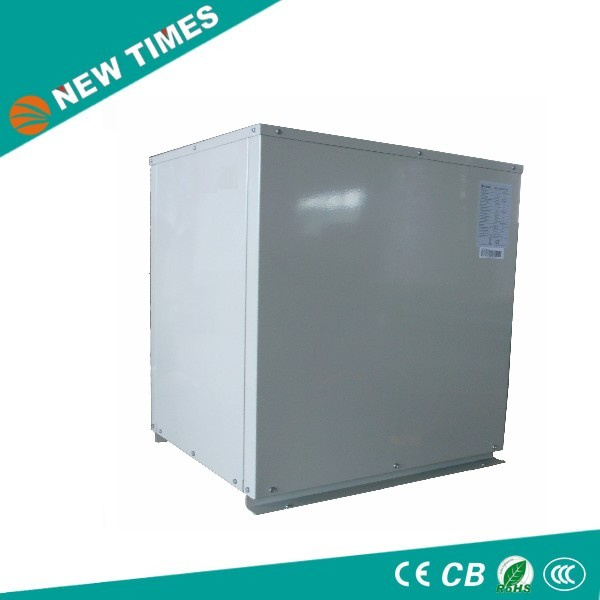

Water source heat pump water heaters
The sole hot water facilities supplier for Olympic Village in Beijing)
Product features:
1. Cop as high as 4.4-5.5
2. Safe and reliable
3. Scroll compressor
4. For cooling, heating, hot water
Geothermal heat pump make use of water from river, lake, underground to transfer heat into domestic hot water, floor heating or cooling, especially in low temperature area, using environmentally friendly refrigerant to achieve high heating capacity.
High-efficiency:
1) our own advanced heat pump technology
2) World famous brand Compressor
3) S & C high efficiency heat exchanger
4) COP more than 4.5
5) saving cost as high as 60%~80% compared with oil boiler, gas boiler, coal boiler, electricity water heater etc.
Environment-friendly:
ODP---Ozone Depletion Potential,
GWP--Global Warming Potential
1) environment-friendly refrigerant R407c: - ODP = 0, GWP = 1610
2)extract heat energy in the air and transfer it to heat water through heat exchanger.
3)no potential hazards of inflammable, explosive, electric shock, gas poisoning.
Range of application
It is suitable for family, villa, apartment, high-floor residence,
Business restaurant, hotel and multi-floor living building in country and village.
Specification-Water Source Heat Pump
|
|
TECHNICAL DATA |
DWW-06HA |
DWW-08HA |
DWW-10HA |
DWW-13HA |
DWW-16HA/3 |
DWW-20HA/3 |
DWW-30HA/3 |
|
Heating |
Nominal capacity |
KW |
7.2 |
9.55 |
10.74 |
14.3 |
17.5 |
23.4 |
33.2 |
|
Power input |
KW |
1.42 |
1.9 |
2.16 |
2.75 |
3.38 |
4.46 |
6.38 |
|
COP |
W/W |
5.08 |
5.03 |
4.97 |
5.2 |
5.18 |
5.25 |
5.2 |
|
DHW |
Nominal capacity |
KW |
6.35 |
8.32 |
9.5 |
12.5 |
15.4 |
20.6 |
37.6 |
|
Power input |
KW |
1.69 |
2.26 |
2.56 |
3.25 |
4.05 |
5.28 |
11.12 |
|
COP |
W/W |
3.76 |
3.68 |
3.71 |
3.85 |
3.8 |
3.9 |
4.25 |
|
Power supply |
V/Ph/Hz |
220-240/1/50 |
380-415/3/50 |
|
Max. water-outlet temperature |
|
°C |
58 |
|
Refrigerant type |
R410A |
|
Compressor type |
Rotary |
Scroll |
|
Heat exchangers |
Coaxial Heat Exchanger |
Plate Heat Exchanger |
|
Dimensions (Net) |
HxWxD |
mm |
982x606x634 |
982x606x634 |
982x606x634 |
982x606x634 |
982x606x634 |
982x910x634 |
982x910x634 |
|
Dimensions (Packing) |
HxWxD |
mm |
1110x715x715 |
1110x715x715 |
1110x715x715 |
1110x715x715 |
1110x715x715 |
1110x1020x715 |
1110x1020x715 |
|
Net weight |
kg |
130 |
138 |
140 |
135 |
138 |
150 |
170 |
|
Gross weight |
kg |
135 |
143 |
145 |
140 |
143 |
160 |
180 |
|
Noise level |
dB(A) |
47 |
47 |
47 |
48 |
48 |
53 |
56 |
|
Container loading |
20' GP (units) |
48 |
48 |
48 |
48 |
48 |
48 |
48 |
|
40' GP (units) |
96 |
96 |
96 |
96 |
96 |
96 |
96 |
|
40' HQ (units) |
96 |
96 |
96 |
96 |
96 |
96 |
96 |
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
