| Prod Model: |
2268HPL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
2268HPL |
| Nominal Diameter: |
18" |
| Power Handling (Max): |
1,600 Watts |
| Power Handling (RMS): |
800 Watts |
| Magnet Material: |
Neodymium |
| Voice Coil Diameter: |
3" |
| Sensitivity: |
96 Db 1W/1m |
| Impedance: |
8 Ohms |
| Cone Material: |
Paper |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Certification: |
ETL |
| THD: |
<0.005% |
| Application: |
Professional Performance |
| Monitor: |
Non |
Product Description
Product Description

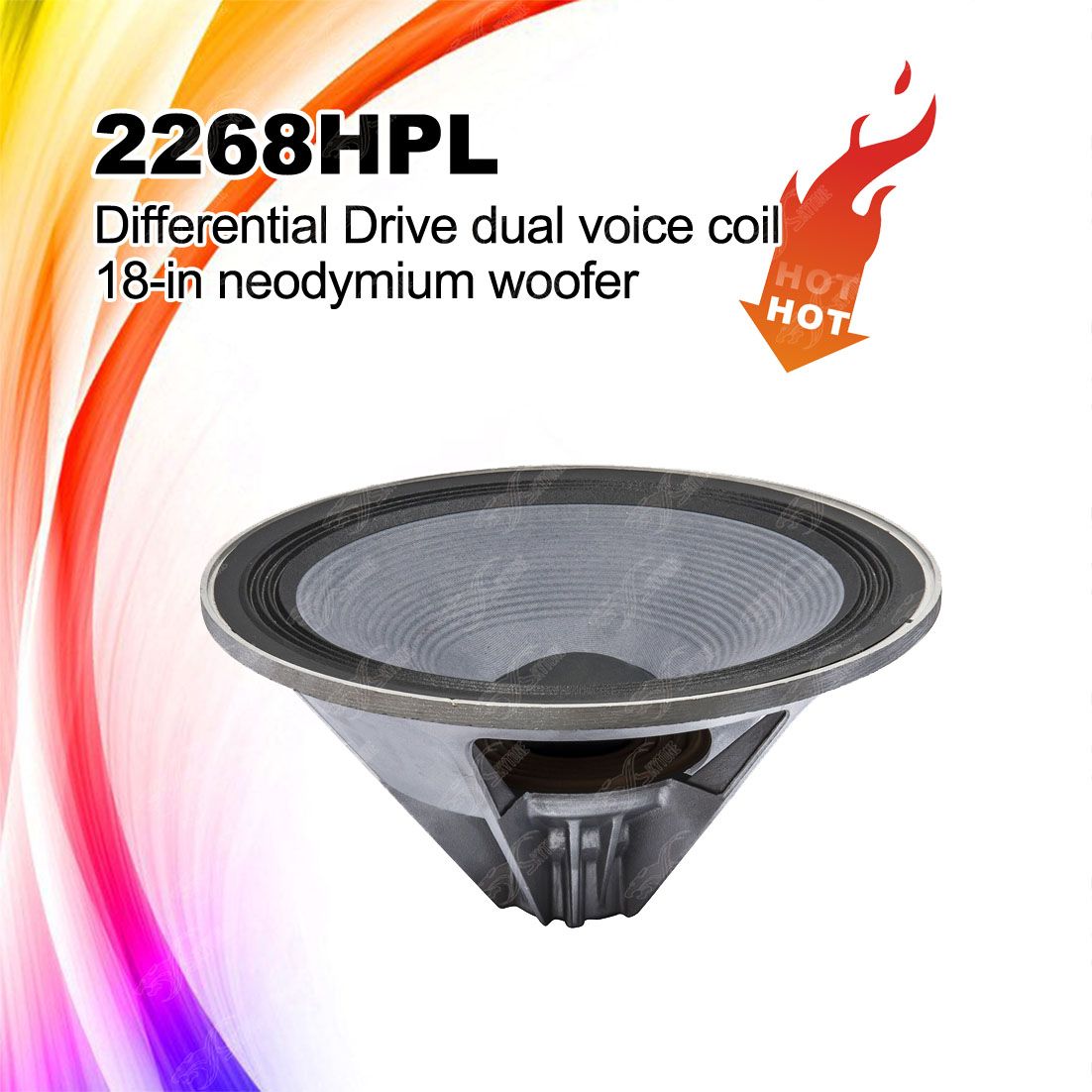

2268HPL 18' Lf High Quality Neodymium Woofer
Overview
The 2268HPL Differential Drive 18" speaker is the driver of choice for premium, high quality professional subwoofer systems.
Highlights
Tour-class woofer with patented motor design
Better heat dissipation increases power handling, reduces power compression
Reduced inductance extends upper response
Lightweight, compact neodymium magnet system
Push-pull operation lowers distortion
Magnetically shielded for use anywhere
Suitable for the following model professional speaker:
1. SRX718S subwoofer
2. SRX728S high power subwoofer/Bass
3. VRX918S subwoofer/ Bass
4.SRX 738
2268HPL PRODUCT SPECIFICATIONS |
| Power Handling (RMS) | 800 Watts |
| Power Handling (max) | 1,600 Watts |
| Impedance | 8 ohms |
| Sensitivity | 96 dB 1W/1m |
| Voice Coil Diameter | 3" |
|
|
| THIELE-SMALL PARAMETERS |
| Resonant Frequency (Fs) | 33 Hz |
| DC Resistance (Re) | 5.3 ohms |
| Voice Coil Inductance (Le) | 1.85 mH |
| Mechanical Q (Qms) | 3.80 |
| Electromagnetic Q (Qes) | 0.39 |
| Total Q (Qts) | 0.36 |
| Compliance Equivalent Volume (Vas) | 11.58 ft.³ |
| Maximum Linear Excursion (Xmax) | 8 mm |
|
|
| MATERIALS OF CONSTRUCTION |
| Cone Material | Paper |
| Magnet Material | Neodymium |
|
|
| MOUNTING INFORMATION |
| Overall Outside Diameter | 18.125" |
| Baffle Cutout Diameter | 16.625" |
| Depth | 8.875" |
| # Mounting Holes | 8 |
