| Prod Model: |
2268HPL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
2268HPL |
| Nominal Diameter: |
18" |
| Power Handling (Max): |
1,600 Watts |
| Power Handling (RMS): |
800 Watts |
| Magnet Material: |
Neodymium |
| Voice Coil Diameter: |
3" |
| Sensitivity: |
96 Db 1W/1m |
| Impedance: |
8 Ohms |
| Cone Material: |
Paper |
| Noise: |
<95dB |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Certification: |
ETL |
| THD: |
<0.005% |
| Hi-Fi: |
Professional |
| Activity: |
Speaker Driver Unt |
| Speaker Material: |
Non |
| Application: |
Professional Performance |
| Monitor: |
Non |
Product Description

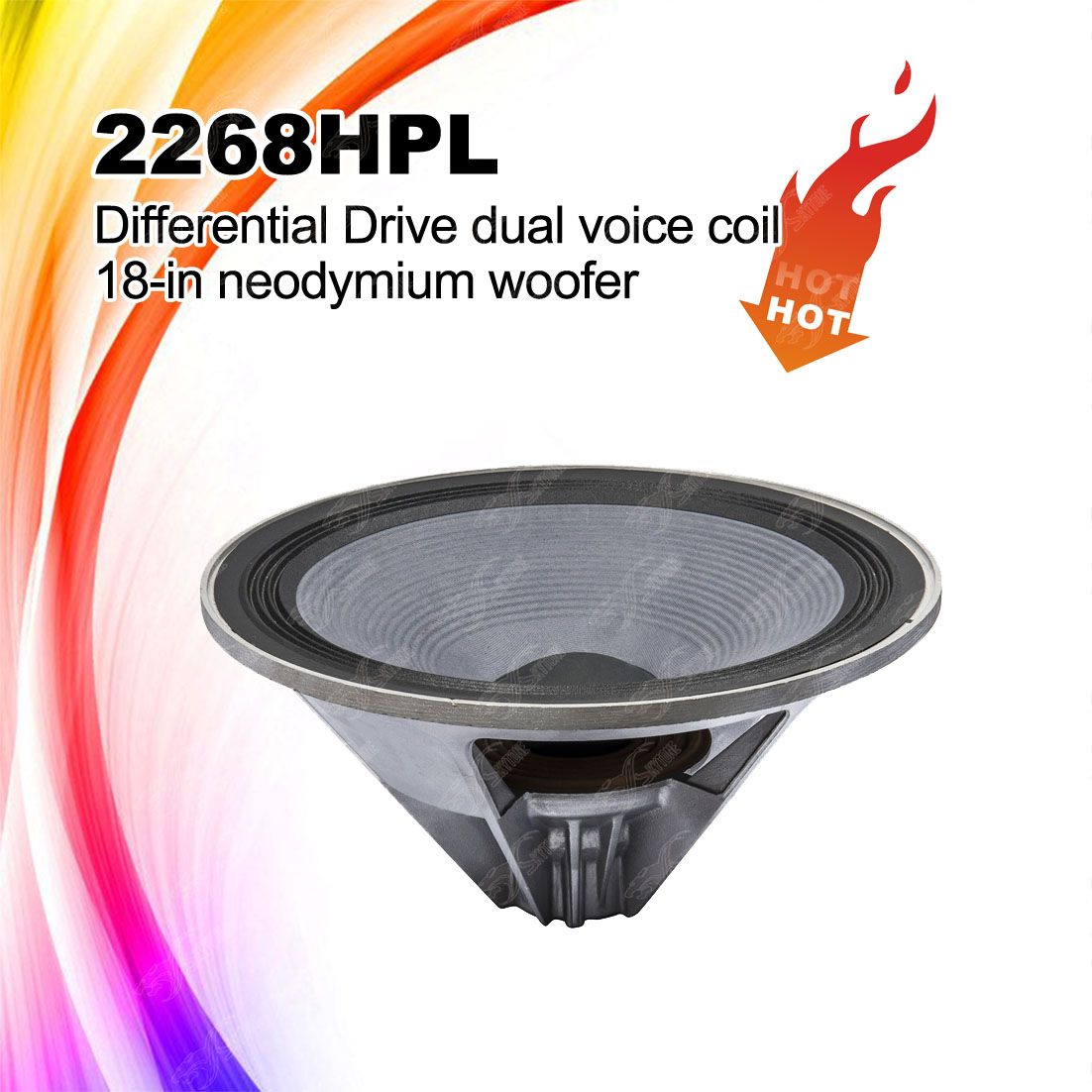

18" neodymium subwoofer speaker driver unit
Overview
The 2268HPL Differential Drive 18" speaker is the driver of choice for premium, high quality professional subwoofer systems.
Highlights
Tour-class woofer with patented motor design
Better heat dissipation increases power handling, reduces power compression
Reduced inductance extends upper response
Lightweight, compact neodymium magnet system
Push-pull operation lowers distortion
Magnetically shielded for use anywhere
Suitable for the following model professional speaker:
1. SRX718S subwoofer
2. SRX728S high power subwoofer/Bass
3. VRX918S subwoofer/ Bass
4.SRX 738
2268HPL PRODUCT SPECIFICATIONS |
| Power Handling (RMS) | 800 Watts |
| Power Handling (max) | 1,600 Watts |
| Impedance | 8 ohms |
| Sensitivity | 96 dB 1W/1m |
| Voice Coil Diameter | 3" |
|
|
| THIELE-SMALL PARAMETERS |
| Resonant Frequency (Fs) | 33 Hz |
| DC Resistance (Re) | 5.3 ohms |
| Voice Coil Inductance (Le) | 1.85 mH |
| Mechanical Q (Qms) | 3.80 |
| Electromagnetic Q (Qes) | 0.39 |
| Total Q (Qts) | 0.36 |
| Compliance Equivalent Volume (Vas) | 11.58 ft.³ |
| Maximum Linear Excursion (Xmax) | 8 mm |
|
|
| MATERIALS OF CONSTRUCTION |
| Cone Material | Paper |
| Magnet Material | Neodymium |
|
|
| MOUNTING INFORMATION |
| Overall Outside Diameter | 18.125" |
| Baffle Cutout Diameter | 16.625" |
| Depth | 8.875" |
| # Mounting Holes | 8 |
