| Prod Model: |
Sanway FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Usage: |
KTV System |
| Sound Channel: |
4.1 |
| Conductive Mode: |
Td Class |
Product Description

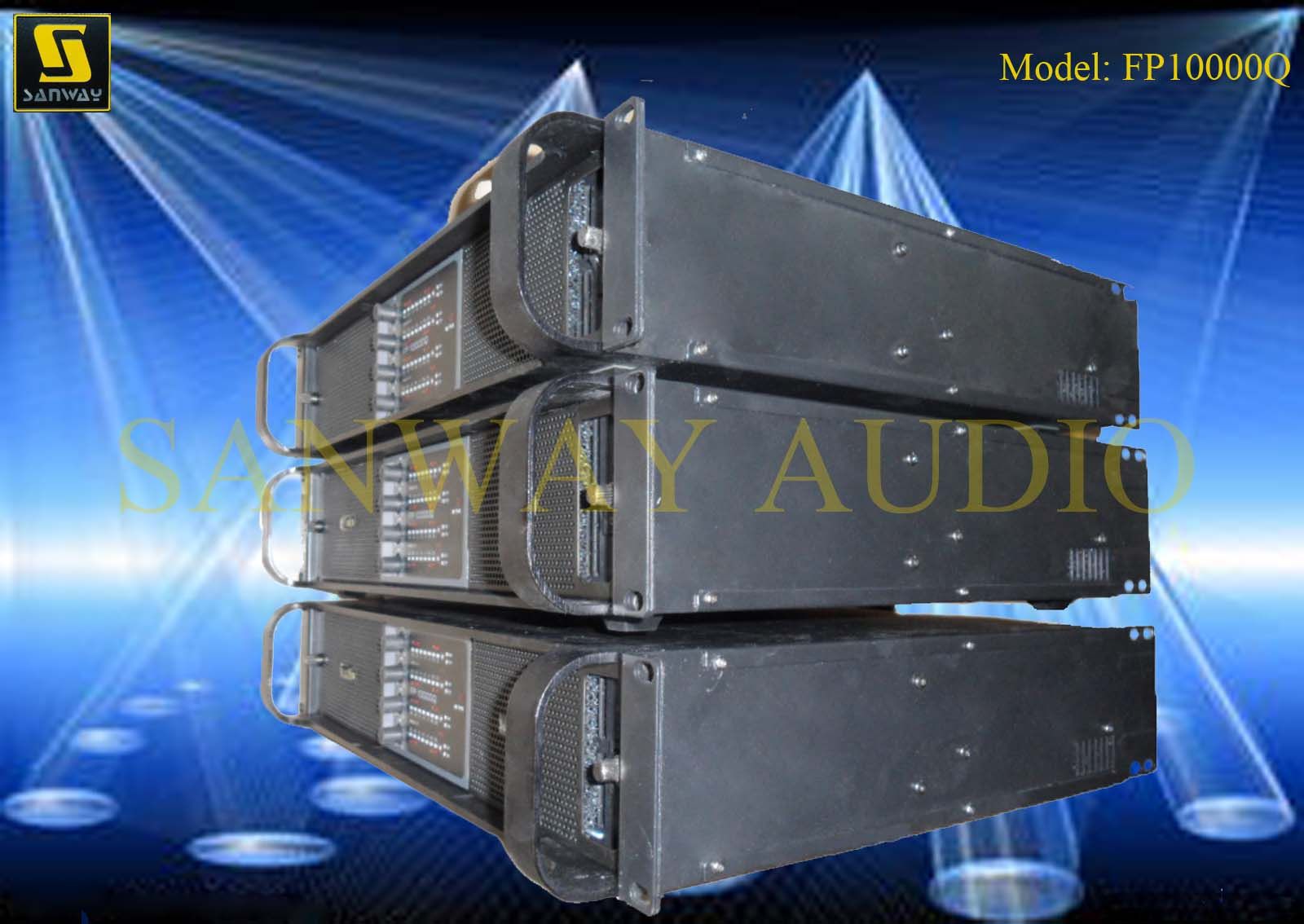

Professional Sound System Mixer Power Amplifier Audio (FP10000Q)
OVERVIEW
The FP-series switching power amplifiers are Sanway another innovative technology fruit. They are designed to achieve unsurpassed sonic performance and long-term reliability for operating even under extreme rigorous conditions. In addition, this workhorse of the amplifier is loaded with features including full short circuit, open circuit, thermal and mismatched loads protection, toroidal power transformer and intelligent cooling system etc. Combines tremendous power output, exceptional, low-end response, robust and rugged chassis make this amplifier an ideal choice for fixed installations and rental applications that demand both the power and finest audio quality.
KEY FEATURE
1). Switching power supply
High efficiency and stability of the new switching power supply so that the signal transmission speed faster and more stable voltage changes, sensitivity stronger, lighter weight.
2). Intelligent signal limiter
Each channel has an independent output signal overload distortion, automatic pressure limited function, when the output signals are now clipping distortion can be quickly restored to the output signal compression is not the biggest distortion level and no reduction in the frequency response of audio signals, to avoid DC level because of the audio signal output and burned speakers.
3). Multiple detection, multiple protection
A soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
4). High efficiency, low fever
Efficient Class H amplifier, significantly reduce heat loss.
5). Pristine audio
Metal Packaging, high-power transistors, Yanyi a pure, passionate, authentic audio effects.
6). Removable face Network
Removable the hole into the wind-net, easy cleaning.
|
China Amplifier Manufacturer FP10000Q |
|
ITEM |
FP10000Q |
|
Output Power |
20-20kHz, 1W with 1 KHz |
|
8Ω Stereo Power(RMS) |
1350WX4 |
|
4Ω Stereo Power(RMS) |
2100WX4 |
|
2Ω Stereo Power(RMS) |
2500WX4 |
|
8Ω Bridged Power(RMS) |
4200WX2 |
|
4Ω Bridged Power(RMS) |
5000WX2 |
|
Frequency Response(+o/-0.3dB, 1W/8Ω ) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
< 0.1% |
|
Signal-to-Noise Ratio |
> 112 Dba |
|
Channel separation (Crosstalk) at 1 kHz |
> 70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
short circuit, DC voltage, turn-on/off transient, current, inrush |
|
Operating voltage |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 Kohms |
|
Level adjustment (per ch. ) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W× H× D) |
483× 88× 396mm |
|
Packing dimension |
580× 180× 560mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
18 |
