| Prod Model: |
FP series Amplifier |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Type: |
2 & 4 Channels Amplifier |
| Dimension(Wxhxd): |
483X88X396mm |
| Voltage Gain(dB): |
23,26,29,32,35,38,41,44dB Selectable |
| Function: |
Pre-amplifier |
| Tube Type: |
IC Amplifier |
| Voltage: |
AC 110V |
| Element Number: |
Monoamplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Usage: |
KTV System |
| Sound Channel: |
4.1 |
| Conductive Mode: |
Td Class |
Product Description

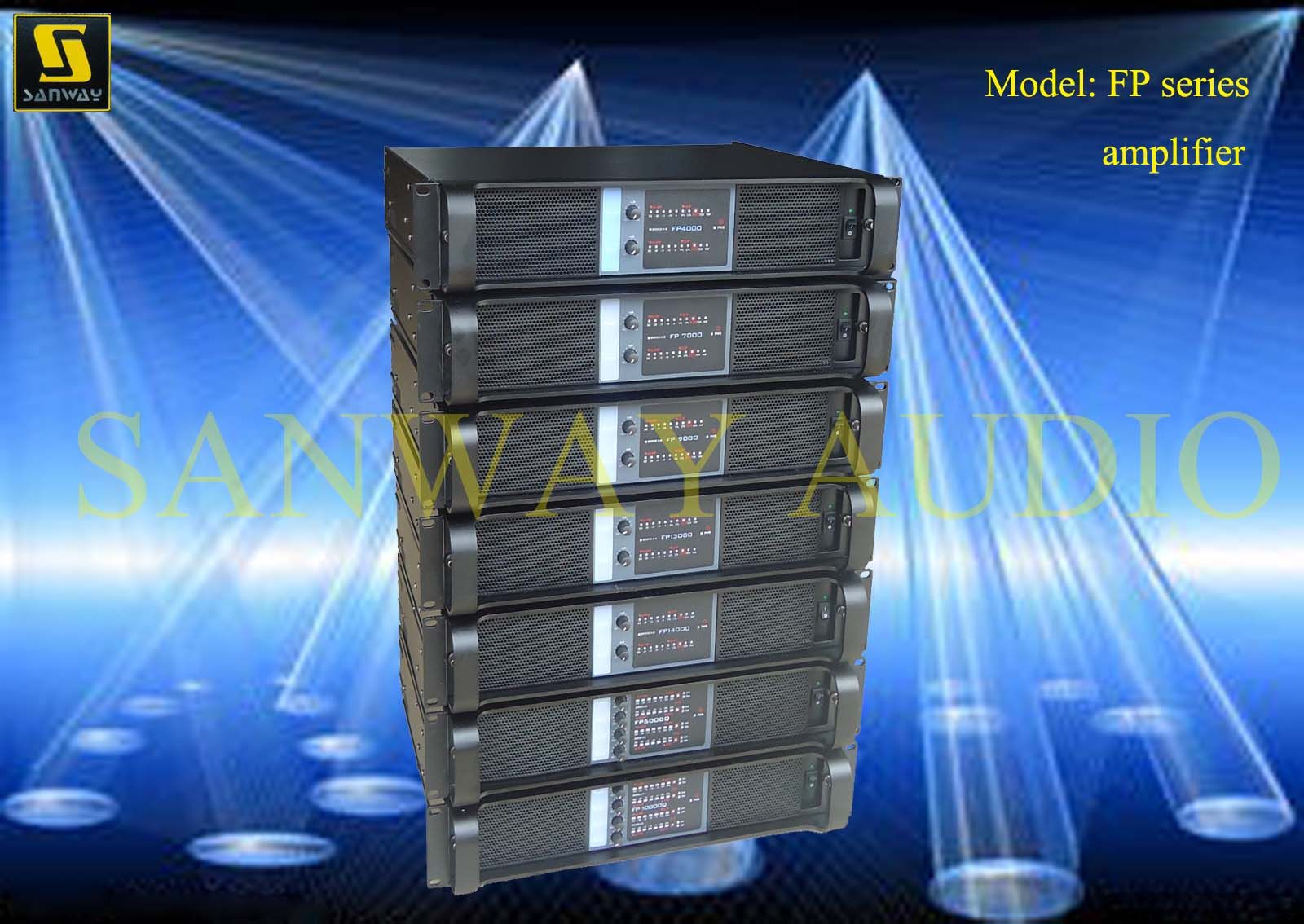

Audio Equipment FP series Amplifier
1>. 2 & 4 Channel Digital Switching High Power Amplifier
2>. Class TD Proved Quality Switching Amplifier
3>. Fastly Delivery and Good After Service
4>. Stereo Audio Amplifier Sound Equipment
5>. Professional High Performance Stable Power Amplifier
Applications
1>. Arenas, Conferences
2>. Concert reinforcement
3>. Medium or large Ballrooms
4>. Club or Church, Performances
5>. Theaters Music, Field
6>. Convention Centers
Specifications:
|
FP+ series Switching Power Amplifier Specification ( CE Certification ) |
|
ITEM |
FP7000 |
FP9000 |
FP13000 |
FP14000 |
FP6000Q |
FP10000Q |
|
Output Power |
20-34kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1450WX2 |
1600WX2 |
2350WX2 |
2350WX2 |
625WX4 |
1350WX4 |
|
4ΩStereo Power(RMS) |
2800WX2 |
3000WX2 |
4400WX2 |
4400WX2 |
1250WX4 |
2100WX4 |
|
2ΩStereo Power(RMS) |
3500WX2 |
4500WX2 |
6500WX2 |
7000WX2 |
1500WX4 |
2500WX4 |
|
8ΩBridged Power(RMS) |
5600W |
6000W |
8800W |
8800W |
2500WX2 |
4200WX2 |
|
4ΩBridged Power(RMS) |
7000W |
9000W |
13000W |
14000W |
3000WX2 |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
TourClass Protection |
short circuit, DC voltage, turn-on/off transient, current inrush |
|
Operating voltage |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
Input impedance |
20 Kohms |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
18 |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
We always keep and follow the principle to do business:
The same product, we win by the quality;
The same quality, we win by the price,
The same price, we win by the service.
We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.
Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
