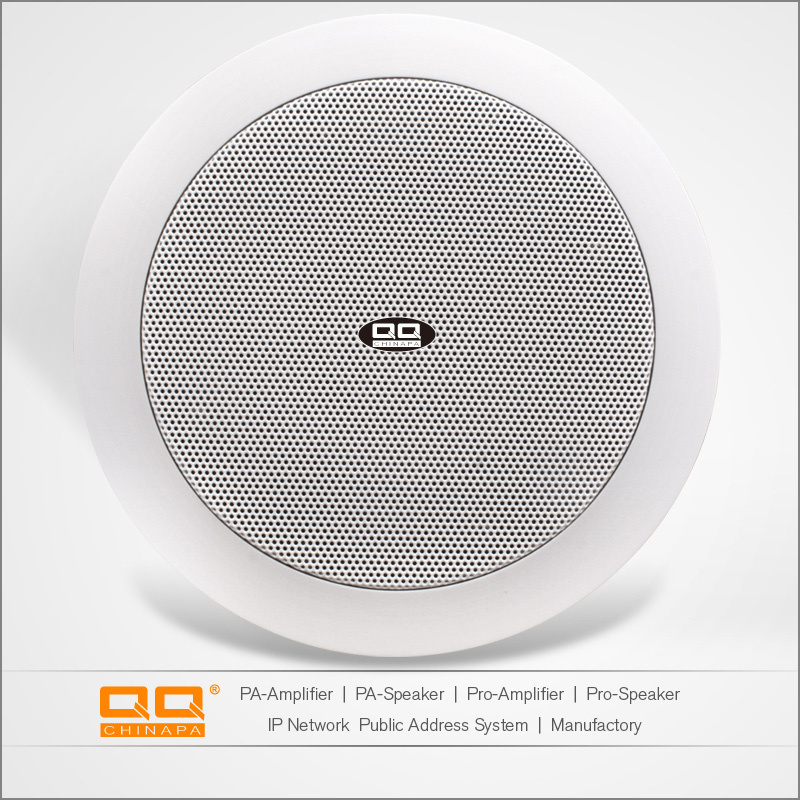

Sound Ceiling Digital Music Speaker 5inch

Prod Model:	LTH-8315TS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Ceiling Speaker
Place Of Origin:	Guangzhou ,Cn
Brand Name:	Qqchinapa
Use:	Hotel,School,Airport,Departmen,Church
Certificate:	CE, FCC,RoHS,CB
Protetion:	High Temp,Overload&Short-C
Factory History:	More Than 10 Years
Warranty:	3 Years
Deliver Time:	2-25days
OEM ODM:	Yes
Amplification Type:	Active
Speaker Material:	Plastic
Usage:	Mobile Phone
Adjusting Method:	Knob
Sound Channel:	2
Structure:	Closed Enclosure
SNR:	81-90dB
Function:	No

Product Description

 Product Advantages:
1. Stable quality,Good price
2.Short product period
3. On time delivery
4. OEM Ability
5. Excellent R&D team
Since2005, over 10 years OEM /ODM experience in Pulic Address System and Professional Audio System ,strict quality control and good price

LHY--8315TS	Bluetooth Speaker	Power Requirements: AC Supply: AC100-240V, 60/50Hz, 1A DC Input: DC12-20V @ 5A Total Quiescent Current: Typical 40mA Frequency Response: 20Hz to 20KHz(± 3dB) Speaker Impedance: 8 ohms - 4 ohms minimum Output Power(RMS): 2CH*20W Weight:1.3kg  size:23*10*24cm
LHY-8316TS	Bluetooth Speaker	Power Requirements: AC Supply: AC100-240V, 60/50Hz, 1A DC Input: DC12-20V @ 5A Total Quiescent Current: Typical 40mA Frequency Response: 20Hz to 20KHz(± 3dB) Speaker Impedance: 8 ohms - 4 ohms minimum Output Power(RMS): 2CH*30W Weight:1.5kg  size:29*13*31cm
LTH-8318TS	Bluetooth Speaker	Power Requirements: AC Supply: AC100-240V, 60/50Hz, 1A DC Input: DC12-20V @ 5A Total Quiescent Current: Typical 40mA Frequency Response: 20Hz to 20KHz(± 3dB) Speaker Impedance: 8 ohms - 4 ohms minimum Output Power(RMS): 2CH*40W Weight:2kg
LTH-8315S	with coaxial tweeter	Impedance:8ohms         Power: 40/20w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 203*80 mm Hole of mounting:Φ 170mm Weight:1.3kg  size:23*10*24cm
LTH-8316S	with coaxial tweeter	Impedance:8ohms         Power: 60/30w Sensitivity :88dB Frequency response: 90-20KHZ Meterial:ABS Dimension:Φ 230*90 mm Hole of mounting:Φ 200mm Weight:1.7kg size:29*13*31cm
LTH-8318S	with coaxial tweeter	Impedance:8ohms         Power: 80/40w Sensitivity :88dB Frequency response: 50-20KHZ Meterial:ABS Dimension:Φ 270*105 mm Hole of mounting:Φ 240mm Weight:2.5kg  size:30*13*31cm
LTH-8315	20W	Line voltage:  100V       Power: 20w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 203*80 mm Hole of mounting:Φ 170mm Weight:1.6kg size:23*10*24cm
LTH-8316	30W	Line voltage:  100V         Power: 30w Sensitivity :88dB Frequency response: 90-20KHZ Meterial:ABS Dimension:Φ 230*90 mm Hole of mounting:Φ 200mm Weight:1.5kg size:26*11*27cm
LTH-8318	40W	Line voltage:  100V   Power: 40w Sensitivity :88dB Frequency response: 50-20KHZ Meterial:ABS Dimension:Φ 270*105 mm Hole of mounting:Φ 240mm Weight:2.3kg size:29*13*31cm
LHY-8214	20w	Line voltage:  100V       Power: 20w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 180*80 mm Hole of mounting:Φ 160mm Weight:1.6kg size:26*11*28cm
LHY-8215	30w	Line voltage:  100V         Power: 30w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 203*85 mm Hole of mounting:Φ 180mm Weight:1.7kg size:26*11*28cm
LHY-8216	40w	Line voltage:  100V   Power: 40w Sensitivity :88dB Frequency response: 70-20KHZ Meterial:ABS Dimension:Φ 232*90 mm Hole of mounting:Φ 200mm Weight:1.8kg
LHY-8214S		Impedance:8ohms          Power: 20w/40w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 180*80 mm Hole of mounting:Φ 160mm Weight:1.6kg  size:26*11*28cm
LHY-8215S		Impedance:8ohms            Power: 30w/60w Sensitivity :88dB Frequency response: 100-20KHZ Meterial:ABS Dimension:Φ 203*85 mm Hole of mounting:Φ 180mm Weight:1.6kg size:26*11*28cm
LHY-8216S		Impedance:8ohms      Power: 40w/80w Sensitivity :88dB Frequency response: 70-20KHZ Meterial:ABS Dimension:Φ 232*90 mm Hole of mounting:Φ 200mm Weight:1.8kg
LTH-8015	10W	5''inch,ABS,    88DB                                                                                     Power: 10W Sensitivity 92dB Frequency response: 110-18KHZ Meterial:ABS Dimension:Φ203*80 Hole of mounting:Φ170 Weight:0.7kg size:21*9*21cm
LTH-8016	15W	6''inch,ABS,88DB                                                                                      Power: 15W Sensitivity 92dB Frequency response: 110-18KHZ Meterial:ABS Dimension:Φ230*80 Hole of mounting:Φ200 Weight:1kg size:23*9*23cm
LTH-8018	20W	8''inch,ABS,88DB                                                                                     Power: 20w Sensitivity 92dB Frequency response: 100-18KHZ Meterial:ABS Dimension:Φ270*85 Hole of mounting:Φ240 Weight:1.5kg  size:28*9*28cm
LTH-8115	0.75/1.5/3/6W	5''inch,ABS                                                                                  Impedance:7.2Ω   Power: 0.75/1.5/3/6W Sensitivity 93dB Frequency response: 100-15KHZ Meterial:ABS Dimension:Φ175*60mm Hole of mounting:Φ150mm Weight:0.6kg  size:18*7*18cm
LTH-8116	6W	6''inch,ABS                                                                                Impedance:7.2Ω   Power: 6W Sensitivity 93dB Frequency response: 100-15KHZ Meterial:ABS Dimension:Φ188*76mm Hole of mounting:Φ170mm Weight:1kg size:19*9*19cm
LTH-8118	10w	8''inch,ABS                                                                           Power: 10W Sensitivity 93dB Frequency response: 100-15KHZ Meterial:ABS Dimension:Φ188*76mm Hole of mounting:Φ170mm Weight:1.1kg size:26*11*28cm

 Our Service:
1.Products design:  we will help our customers to design the full products line .
2.Quality Stability : we assure the quality stability ,once there is quality problem happen, we will withdraw the cargoes unconditionally .
3.pre-production sample confirmation-after get customers 30% deposit . within 7 days we will provide pre-production sample to customers for confirmation before mass production.
4.Quick and intimate service: quickly provide all the files which necessary for handling enrtrance formalities;assist our customers to make certificate
5.On time delivery : for the first order ,we can ship within 25 days ,and for the repeated orders ,15 days in need .
6.Protect our customers privacy of ingredient and market information :
 making usre that for the same our brand of products,in each country ,we only sell to one customer.


Our Advantage:

1.OEM Ability  ---Over10 years speakers and amplifiers product manufacturer experience .
2.Famous factory ---- We have been the supplier of  2008 Beijing Olympics   China .
3.Quality--- We have strict quality control system with  5 steps of inspection to assure the stability of quality. Certificated with CE,CCC,ROHS,FCC,CB and so on .
4.Competitive    ----  we focus on help our customers to build their brand name to be the famous brand  in their country .
5.Excellent R&D team---Lead by 2 engineers who has more than 15 years R&D experiences and 3 engineers who has 6 years R&D experiences.
6.Professional and mature sales team : the operation experience is rich , good english level , familiar with each foreign trade process which ensures no error in order process .
 7. Products positioning : with several years experience in brands operation and been to many countries for market researching , we can help our customer do exactly prouducts positioning toghether .

Our Products:
Speaker :Ceiling speaker,wall speaker,horn speaker,column speaker,garden speaker,project speaker, professnial speaker and so on .
Amplifer:Mixer amplifier, power amplifier,pure amplifier,professianl amplifier and so on .

our market :
get a high reputation all around the world.

Why choose us:

1.We focus on speakers and amplifiers product over 10years
2.Your reliable speakers and amplifiers OEM /ODM partner .You can be confident ,because we are trusted in quality .
3.We have gained many international certificates ,.Such as CE,CCC,ROHS,FCC,CB and so on .
4.Our Factory covers an area of12,000 square meters and has more than 200 employees.
