Prod Model: |
PS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

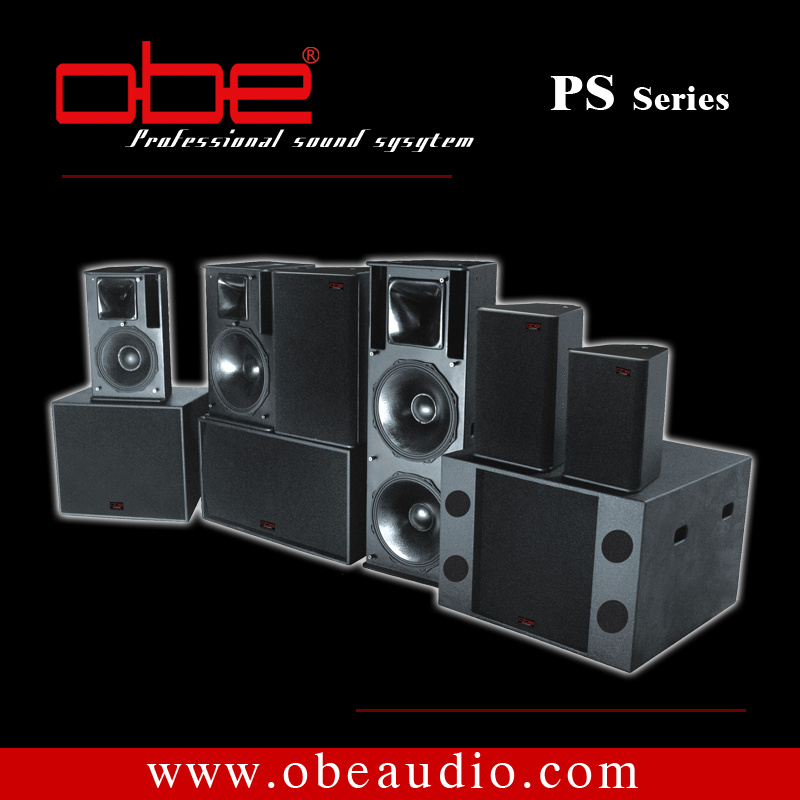

OBE Audio
Model: PS-8
Nominal impedance: 8Ω
Frequency response: 65Hz-19KHz(± 3.5dB); 62Hz-20KHz(-10dB)
Sensitivity: 96dB/w/m
Dispersion: 50° -100° V× 55° H
Component: 8"+1.3"Horn
RMS: 150W
Peak: 300W
Shipping Size: 415× (280× 195× 120)× 260mm
Net Weight: 10Kg
Model: PS-10
Nominal impedance: 8Ω
Frequency response: 62Hz-19KHz(± 3.5dB)
58Hz-20KHz(-10dB)
Sensitivity: 98dB/w/m
Dispersion: 50° -100° V× 55° V
Component: 10"+1.3"Horn
RMS Power: 250W
Peak Power: 500W
Shipping Size: 515× (325× 235× 120)× 290mm
Net Weight: 13Kg
Model: PS-12
Nominal impedance: 8Ω
Frequency response: 55Hz-19.5KHz(± 3.5dB)
52Hz-20KHz(-10dB)
Sensitivity: 100dB/w/m
Dispersion: 50° -100° V× 55° H
Component: 12"+1.7"Horn
RMS Power: 350W
Peak Power: 700W
Shipping Size: 590× (370× 275× 150)× 320mm
Net Weight: 19Kg
Model: PS-15(Active)
Nominal impedance: 8Ω
Frequency response: 50Hz-19.5KHz(± 3.5dB)
47Hz-20KHz(-10dB)
Sensitivity: 102dB/w/m
Dispersion: 50° -100° V× 55° H
Component: 15"+1.7"Horn
RMS Power: 450W
Peak Power: 900W
Shipping Size: 675× (440× 340× 150)× 385mm
Net Weight: 23Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)8Ω : 500W
Model: PS-2150(Active)
Nominal impedance: 4Ω
Frequency response: 47Hz-19.5KHz(± 3.5dB)
45Hz-20KHz(-10dB)
Sensitivity: 105dB/w/m
Dispersion: 50° -100° V× 55° H
Component: 15"× 2+1.7"Horn
RMS Power: 1000W
Peak Power: 2000W
Shipping Size: 1200× (445× 310× 160)× 410mm
Net Weight: 37Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)4Ω : 900W
Model: PS-18W(Active)
Nominal impedance: 8Ω
Frequency response: 43Hz-180Hz(± 3.5dB)
40Hz-200Hz(-10dB)
Sensitivity: 99dB/w/m
Component: 18"Woofer
RMS Power: 600W
Peak Power: 1200W
Shipping Size: 540× 640× 505mm
Net Weight: 35Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)8Ω : 700W
Model: PS-215W(Active)
Nominal impedance: 4Ω
Frequency response: 40Hz-210Hz(± 3.5dB)
38Hz-230Hz(-10dB)
Sensitivity: 102dB/w/m
Component: 15"× 2Woofer
RMS Power: 1000W
Peak Power: 2000W
Shipping Size: 485× 915× 800mm
Net Weight: 55Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)4Ω : 1100W
Model: PS-218W
Nominal impedance: 4Ω
Frequency response: 35Hz-250Hz(± 3.5dB)
32Hz-270Hz(-10dB)
Sensitivity: 102dB/w/m
Component: 18"× 2Woofer
RMS Power: 1200W
Peak Power: 2400W
Shipping Size: 560× 800× 775mm
Net Weight: 67Kg
