Prod Model: |
PRO |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

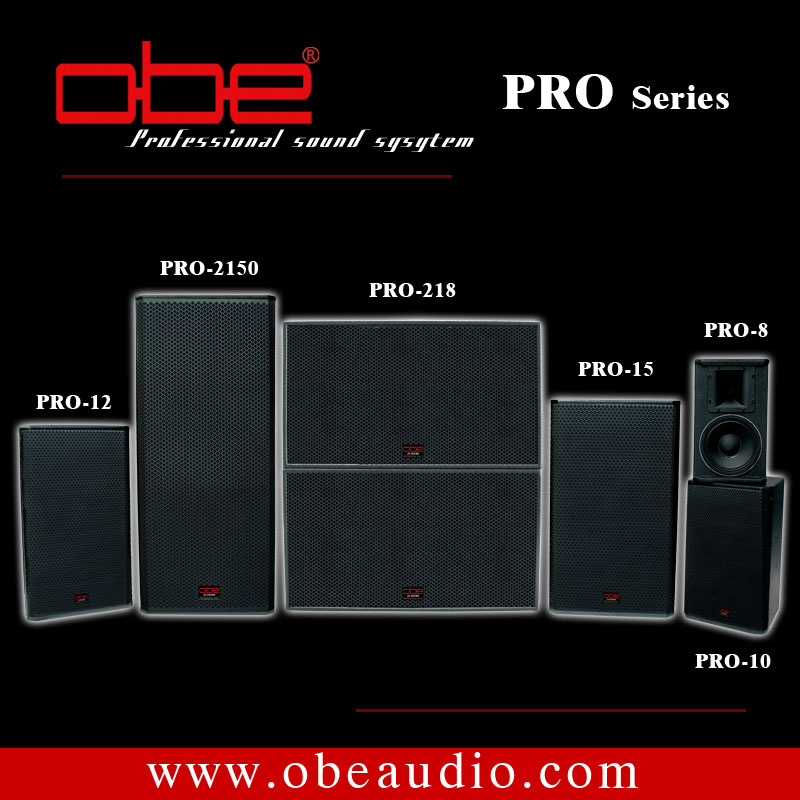

OBE Audio
Model: PRO-218(Active)
Frequency response: 30Hz-250Hz(-10dB)
35Hz-200Hz(± 3.5dB)
RMS Power: 1600W
Peak Power: 6400W
Nominal Impedance: 4Ω
Coverage Angle(-6dB Point): N/A
Crossover: 2.0kHz
Component: N/A
2× 18"Long excursion driver
Sensitivity: 102dB/W/M
Max SPL(1M): 132dB
Dimension(WDH): 1050× 1050× 600mm
Net Weight: 139Kg
Gross Weight: 146Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)4Ω : 1800W
Model: PRO-2150(Active)
Frequency response: 45Hz-19kHz(-10dB)
50Hz-18kHz(± 3.5dB)
RMS Power: 800W
Peak Power: 3200W
Nominal Impedance: 4Ω
Coverage Angle(-6dB Point): 80° H× 50°
Crossover: 2.0kHz
Component: 3''titanium compression driver
2× 15"high efficiency driver
Sensitivity: 104dB/W/M
Max SPL(1M): 133dB
Dimension(WDH): (540× 240)× 550× 1150mm
Net Weight: 46Kg
Gross Weight: 50Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)4Ω : 900W
Model: PRO-15(Active)
Frequency response: 50Hz-19kHz(-10dB)
55Hz-18kHz(± 3.5dB)
RMS Power: 450W
Peak Power: 1800W
Nominal Impedance: 8Ω
Coverage Angle(-6dB Point): 80° H× 50°
Crossover: 2.2kHz
Component: 3'' titanium compression driver
15"high efficiency driver
Sensitivity: 102dB/W/M
Max SPL(1M): 128dB
Dimension(WDH): (460× 248)× 450× 780mm
Net Weight: 32Kg
Gross Weight: 35.5Kg
AMPLIFIER SPECIFICATIONS:
Power Output(RMS)8Ω : 550W
Model: PRO-12
Frequency response: 55Hz-19kHz(-10dB)
60Hz-18kHz(± 3.5dB)
RMS Power: 400W
Peak Power: 1600W
Nominal Impedance: 8Ω
Coverage Angle(-6dB Point): 80° H× 50°
Crossover: 2.0kHz
Component: 3''titanium compression driver
12"high efficiency driver
Sensitivity: 100dB/W/M
Max SPL(1M): 126dB
Dimension(WDH): (390× 215)× 380× 680mm
Net Weight: 27.5Kg
Gross Weight: 30.5Kg
Model: PRO-10
Frequency response: 60Hz-20kHz(-10dB)
65Hz-19kHz(± 3.5dB)
RMS Power: 300W
Peak Power: 1200W
Nominal Impedance: 8Ω
Coverage Angle(-6dB Point): 100° H× 90°
Crossover: 3.2kHz
Component: 1.7''titanium compression driver
10"high efficiency driver
Sensitivity: 98dB/W/M
Max SPL(1M): 122dB
Dimension(WDH): (310× 160)× 330× 500mm
Net Weight: 17Kg
Gross Weight: 19Kg
Model: PRO-8
Frequency response: 65Hz-20kHz(-10dB)
70Hz-19kHz(± 3.5dB)
RMS Power: 250W
Peak Power: 1000W
Nominal Impedance: 8Ω
Coverage Angle(-6dB Point): 100° H× 90°
Crossover: 2.7kHz
Component: 1.7''titanium compression driver
Sensitivity: 97dB/W/M
Max SPL(1M): 121dB
Dimension(WDH): (250× 130)× 268× 417mm
Net Weight: 13Kg
Gross Weight: 14.5Kg
