| Prod Model: |
JHNPA |
| Frame: |
aluminum alloy |
| Color Of Tank: |
red, green, blue |
| Collector Components: |
Glass Vacuum Tube |
Product Description

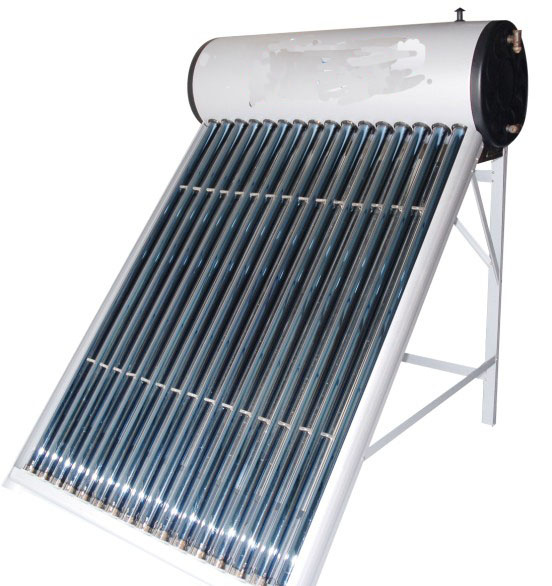

Solar water heater with aluminum frame relies on the natural circulation of water between the collector and the tank. As water in the vacuum tubes is heated it rises naturally into the tank, while cooler water in the tank flows down to the bottom of the vacuum tubes, causing circulation throughout the system. The assistant tank plays as the automatic feeder
Characters
1. Can be operated completely automatic if connect with intelligent controller.
2. Simple structure, easy plug-in installation, can be installed both on flat and inclined roof,
3. Superior heat preservation ensured by one-off molding polyurethane foam with thickness 50 to 65mm.
4. Suitable for camping area, holiday residences.
5. Stable and reliable performance, well wind resistance.
6. Meet the mankind healthy bath standard: The material of inner tank is SUS304-2B stainless steel plate;
7. Can be complete with assistant tank as water feeder, and can be complete with electric heater as backup heating supplier while cloudy day
8. Can be complete with magnesium bar while the water quality poor.
Specification:
Evacuated tube: High quality borosilicate glass 3.3, Φ 47× 1500, Φ 58× 1800/2100, Φ 70× 2100
Inner tank: SUS304-2B stainless steel plate
Outer tank: Color steel plate /galvanized steel
Insulating layer: Polyurethane foam
Bracket: Galvanized steel
Capacity of tank: 75L 100L 125L 150L 200L 225L 250L 300L
| Item No. | tube data(mm/pcs) | volume of tank(L) | Collecting Area(m²) | Volume (m3) | Loading QTY.(sets) |
| size | No.of tubes | 20'GP | 40'GP | 40'HQ |
| JHNP-CS- 100-12 | 58*1800 | 12 | 100 | 1.68 | 0.500 | 50 | 110 | 136 |
| JHNP-CS-125-15 | 58*1800 | 15 | 125 | 2.16 | 0.526 | 48 | 105 | 130 |
| JHNP-CS-150-18 | 58*1800 | 18 | 150 | 2.52 | 0.722 | 35 | 77 | 95 |
| JHNP-CS-165-20 | 58*1800 | 20 | 165 | 2.80 | 0.809 | 31 | 68 | 84 |
| JHNP-CS-183-22 | 58*1800 | 22 | 183 | 3.17 | 0.875 | 29 | 63 | 78 |
| JHNP-CS-200-24 | 58*1800 | 24 | 200 | 3.36 | 0.956 | 27 | 58 | 72 |
| JHNP-CS-250-30 | 58*1800 | 30 | 250 | 4.20 | 0.979 | 26 | 56 | 70 |
| JHNP-CS-300-36 | 58*1800 | 36 | 300 | 5.04 | 1.407 | 18 | 39 | 48 |
Founded in 1997, Haining Jinhong Solarenergy Industry Co., Ltd. specializes in the production of solar water heaters.
Our company is located in Haining City of Zhejiang Province, covering an area of 14, 652 square meters with more than 50 staff members. We have an annual manufacturing capability of 600 thousand vacuum heat collection tubes and 20, 000 solar energy water heaters, forming a complete industrial chain of high boron-silicon glass tubes-vacuum heat collection tubes-solar energy water heaters.
We play a leading role in China's solar water energy industry, and our products have been sold to 28 provinces in China and exported to many countries and regions around the world, such as the EU, North America, South Africa and Southeast Asia.
After years' practice, we have improved our production technology, trained management personnel and promoted R&D capabilities. At present, our company boasts professional management talents, as well as advanced production and examination equipment. Moreover, we have established a perfect and modern business enterprise management system. All staff members produce and manage in accordance with international standards. We put customers' benefits in the first place. With good after-sales service systems and high product quality, we have won customers' trust.
If you are interested in our products, please do not hesitate to contact us for more information. We are looking forward to cooperating with you.
