| Prod Model: |
CPSWH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
Product Description

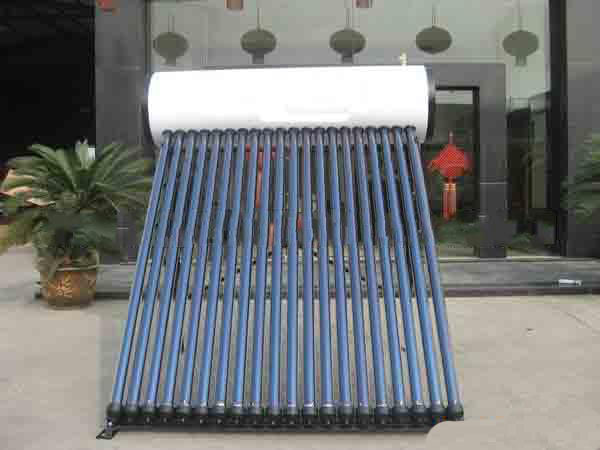

Compact pressurized solar water heater is a solar water heater which highly efficient vacuum tube absorbs heat from sunlight and heat pipe transfers heat to the condenser end of itself. Condensor indirectly contacts with water through a copper cap and it boils water by releasing heat gained from vacuum tube.
Advantages
1) Adopts the best conduction performance metal- heat pipe (copper).
2) Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
3) No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage
4) Can be used all year round in the cold climate
5) Works with high pressure, so do thewater it produces
Specification:
1. Inner tank: SUS304-2B stainless steel, 1.2mm
2. Outer tank: Color steel, 0.4
3. Frame: Galvanized steel, 1.5mm
4. Insulation material: Polyurethane, more than 50mm
5. Working pressure: 0.6Mpa Testing Pressure: 1Mpa
|
Item No. |
Tube size(mm) |
Tube No(pc) |
Capability(L) |
Application People (NO.) |
Loading 20'/40'(sets) |
|
JH-CPSWH-150-58 |
58*1800mm |
18 |
150 |
3-6 |
40/80 |
|
JH-CPSWH-200-24 |
58*1800mm |
24 |
200 |
4-7 |
27/58 |
|
JH-CPSWH-250-30 |
58*1800mm |
30 |
250 |
5-8 |
26/56 |
|
JH-CPSWH-300-36 |
58*1800mm |
36 |
300 |
6-9 |
18/39 |
Founded in 1997, Haining Jinhong Solarenergy Industry Co., Ltd. specializes in the production of solar water heaters.
Our company is located in Haining City of Zhejiang Province, covering an area of 14, 652 square meters with more than 50 staff members. We have an annual manufacturing capability of 600 thousand vacuum heat collection tubes and 20, 000 solar energy water heaters, forming a complete industrial chain of high boron-silicon glass tubes-vacuum heat collection tubes-solar energy water heaters.
We play a leading role in China's solar water energy industry, and our products have been sold to 28 provinces in China and exported to many countries and regions around the world, such as the EU, North America, South Africa and Southeast Asia.
After years' practice, we have improved our production technology, trained management personnel and promoted R&D capabilities. At present, our company boasts professional management talents, as well as advanced production and examination equipment. Moreover, we have established a perfect and modern business enterprise management system. All staff members produce and manage in accordance with international standards. We put customers' benefits in the first place. With good after-sales service systems and high product quality, we have won customers' trust.
If you are interested in our products, please do not hesitate to contact us for more information. We are looking forward to cooperating with you.
