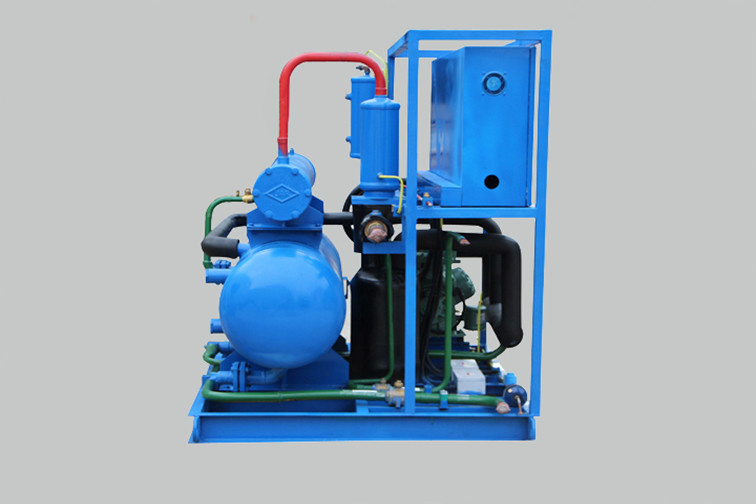

| Prod Model: |
ST10T-R4W |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Snowell |
| Power Supply: |
380V-3p-50Hz or Else |
| Weight: |
1560kg |
| Running Power: |
34.95kw |
| Dimension(L*W*H): |
1800*1500*1600mm |
| Warranty: |
24 Months |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Tube Ice |
Product Description
Application fields of ice tubes:
1. Freezing drinks, mix wines. cool foodstuffs, make ice pastries and keep fresh.
2. Widely used in hotel, bar, KTV, restaurant, catering, supemarket, ballroom, etc.
3. Food production process.
4. Cold accumulation.
5. Chemical industry process, etc.
On Mixing cement used in concrete with water heat is liberated which is known as the heat of hydration formed by the exothermic chemical reaction between cement and water. After the curing the concrete cools down again reducing its volume and thus naturally causing cracks eventually. These detrimental effects can be offset by cooling the aggregate using ice in place of water in the mix of cement and aggregation. The SNOWELL containerized version has the complete tube ice plant housed inside containers making it is very popular with the RMC industry. The Containerized design makes the movement of the ice plant easy from one site to another whenever necessary.
Parameter List of 10T/day Tube Ice Machine:
Subject |
Unit |
Technical parameter |
Power supply |
Voltage/Phase/Frequency |
380V/3P/50Hz or else |
Refrigerant |
|
R22 or R404A |
Capacity |
Kg/day |
10000 |
Temperature |
Ambient temperature |
°C |
35 |
Water inlet temperature |
°C |
20 |
Operating power |
Total running power |
Kw |
34.95 |
Installment power |
Kw |
45 |
Operating power of cutter |
Kw |
0.75 |
Operating power of cold water pump |
Kw |
1.1 |
Fan motor of cooling tower |
Kw |
1.1 |
Operating power of cold water pump |
Kw |
2.2 |
Compressor |
Manufacturer |
|
Bock |
Refrigeration capacity |
Kw |
74.3 |
Operating power |
Kw |
29.8 |
Compressor COP/EER |
Kw/kw |
2.5 |
Horse power |
Hp |
50 |
Cooling way |
|
Water cooling |
Dimension |
Size of ice maker |
(L×W×H)(mm) |
Unit:1800×1500×1600 |
Evaporator:1180×1180×3500 |
Size of cooling tower |
(O.D.×H)(mm) |
Φ2000×2410 |
Size of liquid pipe of cooling tower |
|
3/4" |
Size of cooling water pipe |
|
2-1/2" |
Size of waterinlet pipe of ice maker |
|
1" |
Size of ice outlet |
mm |
300×250 |
Weight of unit |
Operating weight of tube ice maker |
Kg |
Unit:1560 |
Evaporator:2296 |
Operating weight of cooling tower |
Kg |
670 |
Water supply pressure requirement |
Bar |
1.5 |
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
