| Prod Model: |
SF5T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
5t Ice Flake Maker Machine |
| Flake Ice Machine Evaporator Structure: |
Spiral Groove |
| Compressor Brand: |
Bitzer/Bock/Copeland Ect |
| Thinkness Of Flake Ice: |
1.5-2.2mm |
| Water Feeding Pressure: |
0.1 MPa--0.5MPa |
| Design Water Inlet Temp.: |
25°c |
| Design Ambient Temp.: |
18°c |
| Nominal Current: |
31A |
| Power Supply: |
380V/50Hz/3p or Else |
| Refrigeration Capacity: |
30 Kw |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Detailed Description:

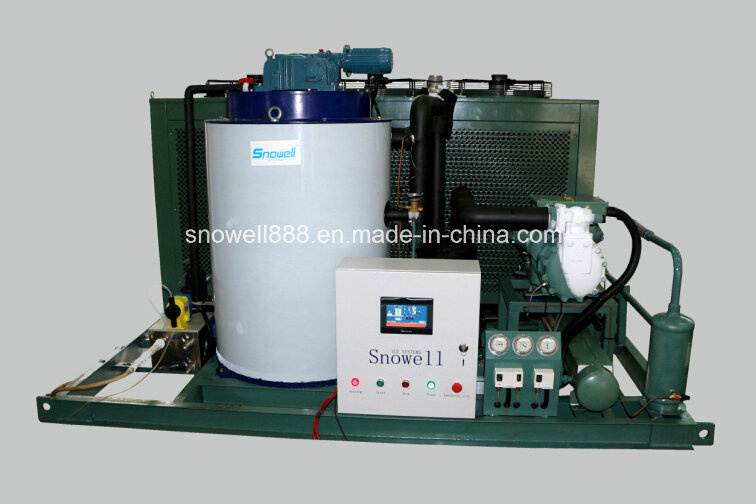

Snowell fast refrigeration 5T per day ice flake maker machine
Fresh water ice flake maker machine application fileds.
1. Large concrete pouring project
2. Man-made snow making project
3. Chemical Industry
4. Fishery, aquatic products processing and vegetable & fruits preservation
5. Food Fermentation
6. Meat, dairy products processing and the other food industries
Ice Falke Maker Machine Features
1. This is Freon System Flake Ice Machine
Freon (R507, R404A, R22) refrigerant is used in small or medium capacity flake ice machines.
2. Safety and sanitation
We use stainless steel, pure aluminium, alloy, and special treatment to prevent corrosion and make sure the flake ice maker machine is clean and safe to use in all industries. Anti-corrsion also extend the machine's service time.
3. High Relaibility and low breakdown rate.
Snowell ice flake maker machines have adopted the newest international ice machine makig techology. We use and only use world famous components like Bitzer, Danfoss,Schneider and so on. According to our test, Snowell flake ice machine can produce quality ice and stand over 29,515 hours of constant operation without breakdown.
4. High efficiency and energy saving.
We optimize the internally-scraping evaporator to make the ice falling reach 100%. We use a special kind of alloy material and patented processing technology to improve the thermal conductivity. The Ice making area of Snowell flake ice machine is 1755m²/ton.
5. Simple installment, iperation and maintenance.
Users just need to connect the system with water and power, press the button, ice comes out. Once some of the parts need to be replaced, it is easy for you to remove the old parts and install the new ones.
6. Great adaptability and stable quality.
Snowell products can ensure good running and normal ice out put at the ambient temperature from 5-40ºC. With our special-designed type, it can normal works in the most unfavorable working condition(-30 ºC to 60 ºC)
| Details of 5T/24 hrs Fresh Water Ice Flake Maker Machine |
| No | Description | Specification |
| 1 | Design Capacity | 5000Kg/24h |
| 2 | Refrigeration Capacity | 30 KW |
| 3 | Refrigerant | R404A |
| 4 | Total Input | 17.6KW |
| 5 | Power Supply | 380V/50Hz/3P or else |
| 6 | Nominal Current | 31A |
| 7 | Cooling Mode | Air Cooling/Water Cooling |
| 8 | Evaporator Structure | Spiral Groove |
| 9 | Evaporating Temp. | -22°C |
| 10 | Condensing Temp. | 45°C |
| 11 | Flake Ice Temp. | -5°C |
| 12 | Thickness of Flake Ice | 1.5-2.2mm |
| 13 | Water Feeding Pressure | 0.1 Mpa--0.5Mpa |
| 14 | Design Water Inlet Temp. | 25°C |
| 15 | Design Ambient Temp. | 18°C |
Company Profile
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine,Tube Ice Machine,Block Ice Machine. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2.: What is the payment terms and trder terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very easy to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
