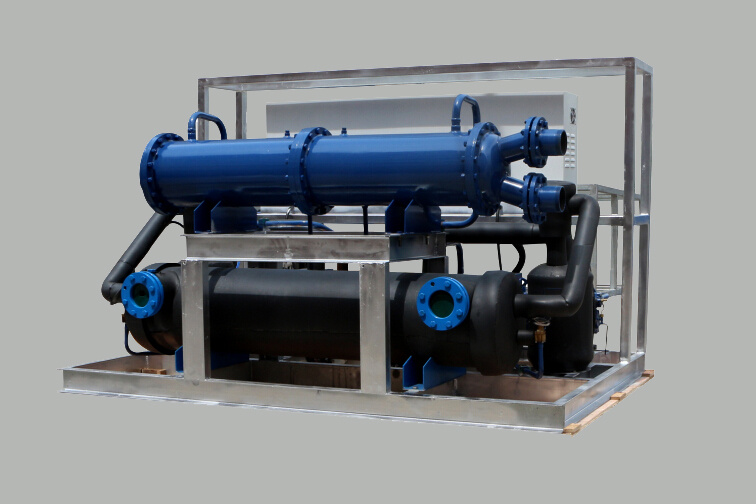

Snowell B10tpd Customized Block Ice Maker Machine for Frozen Food

Snowell B10tpd Customized Block Ice Maker Machine for Frozen Food
Price: US $ 37100/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: B
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: 380V-3p-50Hz or Else
Refrigerant: R404A or R22
Refrigeration Capacity: 97.2 Kw
Running Power: 44.1 Kw
Installation Power: 55.1 Kw
Running Current: 83.71 a
Ice Shape: Ice Block
Certification: CE
Condition: New

Product Description

Block-ice plants are still commonly found in many countries because they are relatively simple to operate and maintain. Often, these plants were built to supply local stores, bars, market places and domestic households as well as the fishing industry.

Block ice is preferred by fishermen in many parts of the world because it will last longer and takes up less space in the fish hold. However, as already mentioned, for block ice to be used effectively for stowage of fish, and to make full use of its cooling power, it first has to be crushed or ground into small pieces. Common practice in many countries is for the ice to be transported and stored as blocks, and ground into pieces as required. In order for the broken ice to make good contact with the fish it must be broken into small enough pieces. In many instances the ice is broken into smaller pieces by simply using an ice pick or hammer. Generally this does not break the ice sufficiently for it to make good contact with the fish and thus the fish can still be exposed to high ambient temperatures. A much more effective means of crushing block ice is to use a mechanical grinder or crusher that can reduce block ice to small pieces.

Containerized block ice plants are available that house the ice plant, ice store and complete refrigeration and electrical systems inside standard containers. This allows portability, ease of transport by sea and land, better reliability and significantly shorter installation and break-in periods than traditional non-containerized types. They only require a levelled foundation and to be under cover for protection against the weather, and they can be built in tropical climates and coastal conditions.

Things need to know before optimal use of ice1. All ice used must be clean and of small particle size for maximum contact. Block ice must be finely crushed to prevent large particles from damaging the fish.
2. The proper ratios of fish to ice must be observed. In temperate climates, one part fish to one part ice is common. In tropical conditions, one part fish to three parts ice is not unusual.
3. Areas of heat penetration into the hold, such as the engine room bulkhead and hull sides, must be given extra layers of ice to compensate for rapid ice loss in these areas, particularly if insulation is poor.
4. The last layers of fish near the deckhead should have extra layers of ice to fully cover the fish and allow for any extra melting from heat penetration through the deck.
5. Fish and ice must be carefully and evenly stowed to allow even distribution of both. Shelves and boxes must not be overfilled or crushing damage to the fish will result.
6. Fish temperatures at the dockside when discharging should be between 0 °C and 2 °C, and there should also be considerable amounts of ice still evenly distributed among the fish.
Ice must be layered under, around and on top of the fish.
7. Ice must be layered under, around and on top of the fish.

Component List:
Component ListDetails
CompressorGEA Bock/Bitzer/Copeland/Danfoss
CondenserJiangche
Expansion ValvesDanfoss
Water Cooling TowerLINKE
Condensor Cooling Fan/
Oil SeperatorO&F
AccumulatorO&F
Electric PartsSchneider


Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.

Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.

Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.

After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
