| Prod Model: |
FP SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| THD: |
<0.03% |
| Noise: |
<95dB |
| Certification: |
CCC |
Product Description

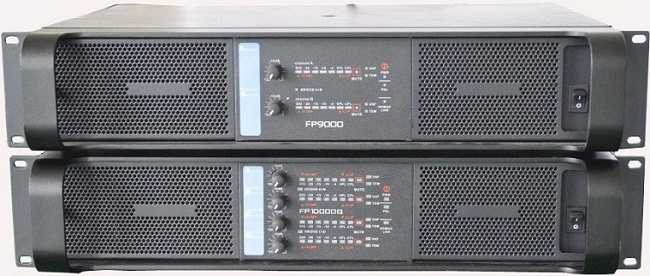

FP series amplifiers are with switch power supply. Its compact and precise structure makes it high-performance. Each channel has independent adjustable peak output voltage, which enables the amplifier to drive speakers with different power easily. Intelligent protecting circuit provides advanced technology to protect the internal circuits and connected loads, so that the amplifiers and speakers can still be operated in extreme conditons. Applied to situations like Performance, Night Club, etc.
|
Model |
FP7000 |
FP9000 |
FP14000 |
FP10000Q |
|
20Hz-20KHz,0.1% THD+N |
|
8ΩStereo Power(RMS) |
1450WX2 |
1600WX2 |
2350WX2 |
1350WX4 |
|
4ΩStereo Power(RMS) |
2800WX2 |
3000WX2 |
4400WX2 |
2100WX4 |
|
2ΩStereo Power(RMS) |
3500WX2 |
4500WX2 |
7000WX2 |
2500WX4 |
|
8ΩBridged Power(RMS) |
5600W |
6000W |
8800W |
4200WX2 |
|
4ΩBridged Power(RMS) |
7000W |
9000W |
14000W |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Operating voltage |
110V/60Hz;220V/50Hz |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 kOhm |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Net weight(kg) |
12 |
Located in Panyu District, Guangzhou Devon is an audio manufactory which is engaged in production, R&D, sale and after-sales service.
With a professional technical research team & large production line, Our Mainly Products include Professional Power Amplifier, KTV Amplifiers& Professional Loudspeaker, Speaker, Amplifier Module, Wired&Wireless Microphone, Processor and some other Peripheral audio devices. After years of hard working and development, we put our brands DEVON AUDIO into market, and now it has already occupied a large market share both at home and abroad.
Based on our hardworking staffs, strong technical support, advanced production equipment and excellent test system, more and more clients choose our qualified products at reasonable prices.
At present, we are looking forward to even greater cooperation with overseas customers. Please feel free to contact us for more information!
