| Prod Model: |
M series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Conductive Mode: |
AB |
| Sound Channel: |
2.0 |
Product Description

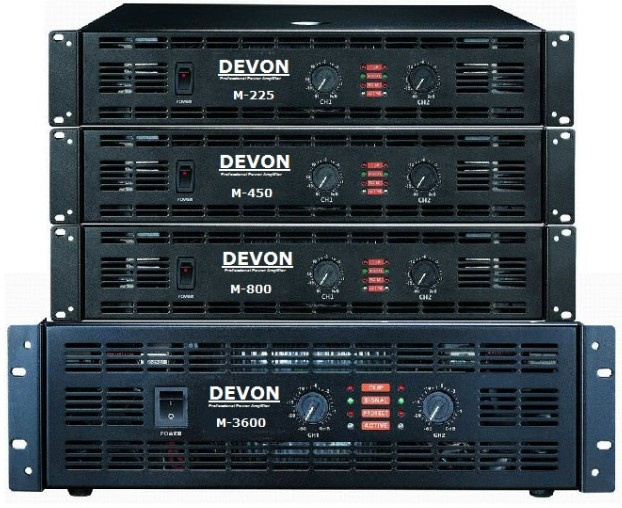

2U standard engine case altitude, which cover wide range output powe from 300W to 800W. It inherited the high power and current, the long time work stablility. With protection for soft-start, over-load, superheat, mute the static sound on switch on/off, the DC cocurrent, suitable for disco, bar, night club, church, conference room, super Karaoke&KTV room etc.
|
Model |
M-330 |
M-450 |
M-650 |
M-800 |
|
20Hz-20KHz, 0.1% THD+N |
|
|
8Ω Stereo Power |
330Wx2 |
450Wx2 |
650Wx2 |
800Wx2 |
|
4Ω Stereo Power |
480W |
680W |
950W |
1200W |
|
8Ω Bridge Mono Power |
950W |
1380W |
1900W |
2250W |
|
4Ω Bridge Mono power |
1200 |
1650W |
2400W |
3050W |
|
Max RMS Output Voltage (Each Channel) |
49V |
56V |
69V |
80V |
|
Max Peak Output Voltage |
68V |
78V |
89V |
100V |
|
Frequency Response (+/-0.3dB, 1W/8Ω ) |
20Hz-20KHz |
|
Protection |
Short-circuit, thermal, ultrasonic, infrasonic
DC fault, over current, ACL. |
|
Distortion(SMPTE-IMD) |
< 0.03% |
< 0.03% |
0.05% |
0.05% |
|
Typical Distortion |
|
|
1/8Rrated Power, 20Hz-20KHz |
< 0.03% |
< 0.03% |
< 0.05% |
< 0.05% |
|
Full Rated Power, 20Hz-20KHz |
< 0.05% |
< 0.05% |
< 0.08% |
< 0.08% |
|
Damping Factor |
368: 1 |
440: 1 |
500: 1 |
600: 1 |
|
Standard Input sensitivity |
1.0V |
|
Input CMRR(1KHz) |
> -60dB |
|
Input Impedance (Balance/Unbalance) |
20KΩ Balance, 10KΩ Unbalance |
|
Hum and Noise(A Weight, Full power at 8Ω ) |
> 95dB |
|
Crosstalk (" A" Weight, Full power at 8Ω ) |
> -60dB |
|
Circuitry |
AB |
H |
|
Input Connectors(per channel) |
3-pin XLR |
|
Output Connectors(per channel) |
2-Way Binding Posts or Neutrik ® NL4 Speakon ® |
|
Power Supply(Factory Configured) |
220V-240V, 50-60Hz |
|
Cooling |
Two rear panel variable speed DC fans. |
|
Led Indicators |
Protect, Clip, Signal, Power |
|
Construction |
Steel chassis, 16gauge, double thickness in rack ear areas |
|
Dimensions |
3.5" x19" x17.5" 89x483x429mm |
|
Net Weight |
22.0kgs |
24.0kgs |
26.0kgs |
28.0kgs |
|
Gross Weight |
25.0kgs |
26.0kgs |
28.0kgs |
30.0kgs |
|
warranty |
1year |
