| Prod Model: |
P8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256mm*128mm |
| LED Chip Spec: |
SMD3535 |
| Best View Distance: |
8~150m |
| Viewing Angle-Horizontal: |
110 Degree |
| Viewing Angle-Vertical: |
90 Degree |
| Max Power: |
1500W/M2 |
| Control Mode: |
Synchronous Control |
| Driving IC: |
Mbi LED Driver |
| Video Signals: |
PAL/NTSC |
| Life-Span: |
100,000 Hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
8mm |
| Average Power Consumption: |
550W/Sqm |
| Pixel Density: |
15625 Dots/Sqm |
Product Description
Brilliantopto co., limited (Jingcai(fujian) photoelectronic co., ltd )
Professional development manufacturing LED display system products and lighting products, was founded in 2005, with the registered capital 20.18 million, own workshop area 20000 m2, branch office and agents cover all over China, with about 400 employees.
Why choosed us:
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.

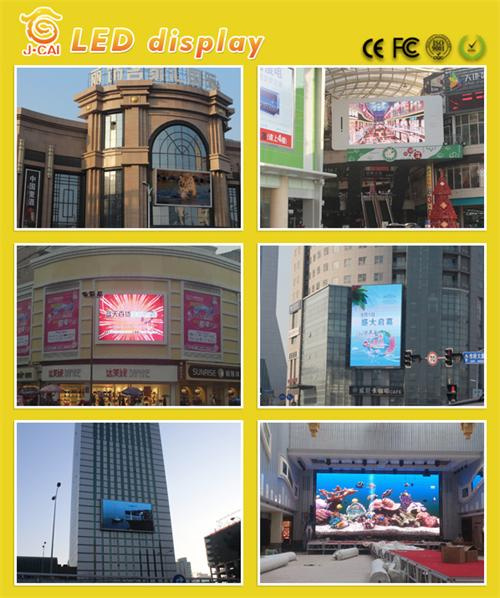

Photos show:
Products list:
1. P3\P4\P5\P6...Indoor full color led display;
2. P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Our features
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight
Aluminum cabinet greatly saving fright cost and conveniently installing.
3. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction dot rate
Less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 2-year QA.
Pixel pitch(mm)
|
8 mm
|
Size(W×H)
|
256mm×128mm
|
Density(dots/ m2)
|
15625dots/sqm
|
Resolution(W×H)
|
32*16 dots
|
Lamp orgin
|
R:Opto G/B:Silan
|
Colors
|
1R1G1B
|
Led pecs
|
DIP 246
|
Module resolution
|
W32×H16 dots
|
Best viewing distance
|
10-150m
|
Best view angle
|
H110,V90
|
Environment temperature
|
-40°C ~ +85°C
|
Working temperature
|
-20°C ~ +50°C
|
RH
|
≤10~90%
|
Module Weight
|
About 880g
|
Working voltage
|
220V±10%
|
Suitable voltage
|
DC5V
|
Average Power consumption
|
400W/m2
|
Largest power consumption
|
800W/m2
|
Computer
|
More than p4-80G/512m
|
Control system
|
WIN 2000/ NT/XP/7
|
Control method
|
LINSN synchronous control system
|
Spending card
|
kilomega network card
|
Scanning method
|
4s constant current
|
Frame frequency
|
≥60HZ
|
Refresh frequency
|
≥300HZ
|
Gray color
|
4096 lever, can display 16.7M colors
|
Brightness
|
≥8000cd/m2
|
Brightness control lever
|
software can chance 100 lever
|
Video signal
|
PAL/NTSC
|
Input/Output
|
8 input/8output
|
MTBF
|
≥10000H
|
life
|
100000H
|
Power
|
5V/40A
|
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
