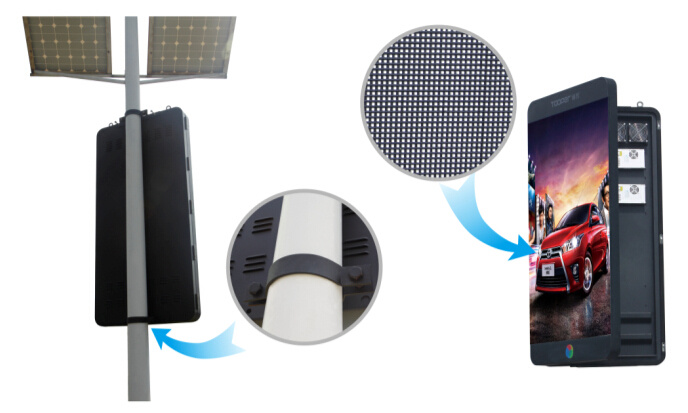

SMD Outdoor Full Color Poster LED Display
| Price: |
US $ 3650/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P3 SMD Outdoor Full Color Poster LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
More Than 3000 CD/Sqm |
| Module Size: |
192*96 |
| Cabinet Size: |
888*1600 |
| Warranty: |
Two Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/16 Scan |
| Average Power Consumption: |
350W / m² |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 DOT / Sqm |
Product Description
SMD Outdoor Poster LED Display detail specification :| item | P3 | P4 | P5 | P6 |
| Pixel Pitch: | 3mm | 4mm | 5mm | 6mm |
| Pixel Density: | 111111 dot /m2 | 62500 dot /m2 | 40000 dot /m2 | 27777dot/m2 |
| Brightness: | ≥3000CD/m2 | ≥3000CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 |
| LED Configuration: | SMD2020 | SMD2020 | SMD2727 | SMD2727 |
| Viewing Angle: | 120 | 120 | 120 | 120 |
| Refresh Rate: | 960HZ | 960HZ | 960HZ | 960HZ |
| IP Rating(F/B): | IP65 | IP65 | IP65 | IP65 |
| Module size: | 192*96 mm | 128*128mm | 160*160mm | 192*96mm |
| Module resolution: | 64*32 dot | 32*32 dot | 32*32 dot | 32*16 dot |
| Cabinet size: | 888*1600 mm | 894*1606 mm | 800*1600 mm | 768*1604 mm |
| LED Display Size: | 768*1344 mm | 768*1280 mm | 800*1280 mm | 768*1344 mm |
| Cabinet resolution: | 256*488 dot | 192*320 dot | 160*256 dot | 128*224 dot |
| Cabinet weight(approx): | 55KG | 57 KG | 57 KG | 57 KG |
| Max.Power consumption: | 900W/sqm | 720W/sqm | 800W/sqm | 900W/sqm |
| Ave.Power consumption: | 390W/sqm | 210W/sqm | 280W/sqm | 300W/sqm |
| Gray Scale: | 13 bit | 13 bit | 13 bit | 13 bit |
| Display Scale: | 16.7 M | 16.7 M | 16.7 M | 16.7 M |
| Operating temperature: | -20ºC to +60ºC | -20ºC to +60ºC | -20ºC to +60ºC | -20ºC to +60ºC |
| Operating Humidity: | 10-90% RH | 10-90% RH | 10-90% RH | 10-90% RH |
| Lifetime: | 100,000Hours | 100,000Hours | 100,000Hours | 100,000Hours |
| Environmental: | Outdoor | Outdoor | Outdoor | Outdoor |
This Poster LED Display with Wifi , 3G /4G intelligent management core modules inside, it can change advertisement any place , any time .Multi LED Display operation
Function and Technology Character (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal. (2) 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade. (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously. (4) Line-Double technology is adopted for the picture adjustment. (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL. (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof. Warranty:-We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided. Technology Training We provide the technology training for free, which contains the operation training and maintenance training in the factory.We will send our engineers to your country by negotiation.Documents and Certification We provide the operation manual, software, test report and so on. We can also provide all kinds of certification such as CE, IP65 and so on. CAD Drawing and Fixing (1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion (2) We will send our engineers to your place if we are expected after our negotiation.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
