| Prod Model: |
SCR80 |
| Capacity: |
32GB |
| Interface: |
USB |
| Type: |
Id Card |
| Card Slots: |
All in 1 & Multi in 1 |
| Installation: |
External |

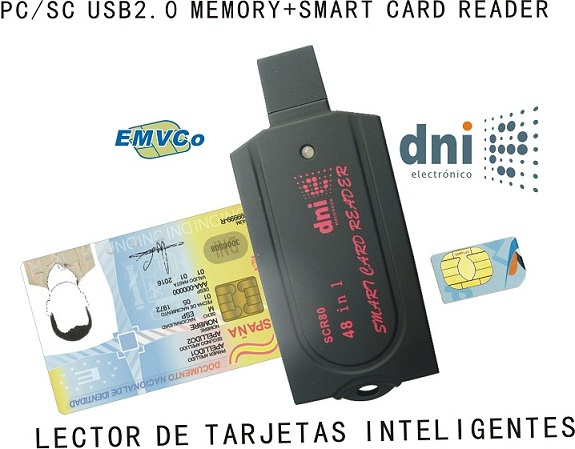

Product Description
1) SD/SDHC/MMC/ MMC 4.0/ RS MMC/ MMC Mobile/
2) MS / MS PRO/ MS DUO/ MS PRO DUO
3) Micro SD (T-Flash)
4) M2
5) SIM
6) Smart Card
1. Plug & play
2.40 in1 card reader
3. Auto detect card memory
4. Up to 480 Mbps/sec
5. Support USB port power
6. No external power required
7. System Requirements:
Memory card: Win ME / 2003 / XP / Vista/ 7 / Mac 10.4.5 / Linux Fedora Core 5
SIM Card editor: Windows ME, 2003, XP, Vista, 7
Smart Card: Windows ME, 2003, XP, Vista, 7
Attention:
*For SIM & Smart Card Editor, please install the CD software
1. Home Banking and Home Shopping
2. Electronic Commerce
3. Account balance check and re-loading of electronic purse
4. Network access control
5. GSM SIM/SAM Cards Editing and Management
Smart Card Support ISO 7816 T=0, T=1, EMV, CAC, 2/3 BUS I2C/Extended I2C memory cards.
Host Interface USB 2.0 Full Speed 12Mbit/s
Card-Reader Communication Up to 323 Kbps at 4 MHz.
Smart Card Acceptor ISO 8 contacts. Landing type, minimum 200, 000 cycles.
Card operating voltage 5V (ISO7816 Class A), 3V (ISO7816 Class B)
Power Source USB port
Safety & Environmental Standard FCC Class B, VCCI, CE
Card operating frequency 4 MHz
Operating System Support Windows 98, 98SE, Me, 2000, XP, XP 64-bit, Vista, Vista 64-bit, Server 2003, , WIN7, Linux, Mac OS X
Smart Card Reader Approvals Microsoft WHQL Me, 2000, XP, PC/SC Compliant, USB Logo, EMV Level 1USB2.0 SMART CARD READER, WEB-ATM, SIM, SIM
