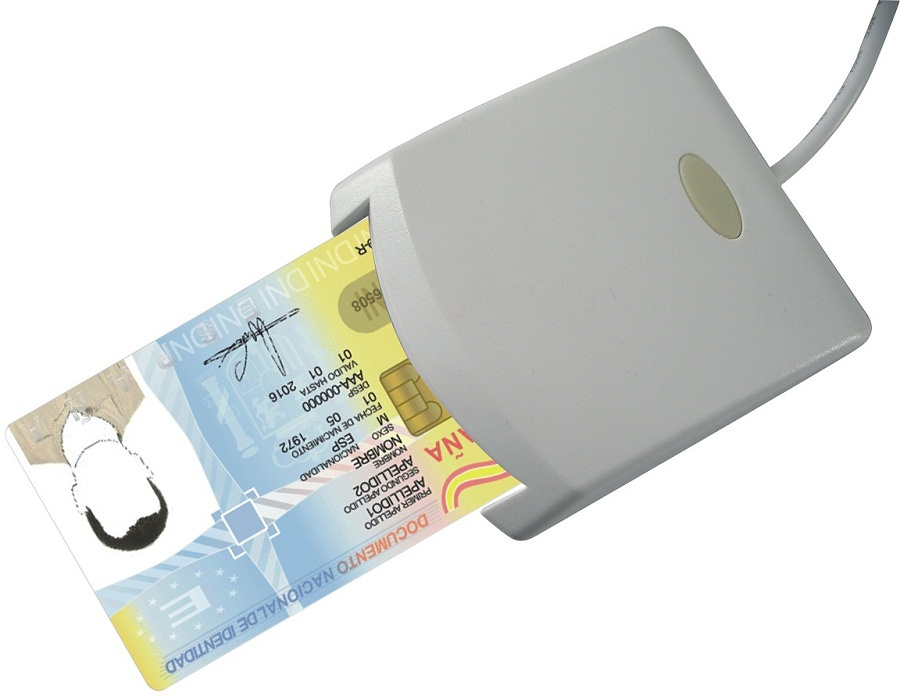

| Prod Model: |
N99 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Capacity: |
ID/Bank Card |
| Interface: |
USB |
| Card Slots: |
Single |
| Type: |
Smart Card / SIM Card |
| Installation: |
External |
Product Description
I Home Banking and Home Shopping
II Electronic Commerce
III Account balance check and re-loading of electronic purse
IV Network access control
V GSM SIM/SAM Cards Editing and Management
1. Support EMV specification.
2. Support the USB Specification, version 2.0 FULL SPEED.
3. Based on ISO7816 implementation
4. Support PC Smart Card industry standard-PC/SC 1.0
5. Support Microsoft Smart Card for Windows
6. Meet Microsoft WHQL USB Smart Card Reader requirements
7. Include WDM driver to work on Windows 98 and Windows 2000
8. Support dual slots for higher security application
9. Support T0, T1 protocol, I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608 and AT45D041 card.
11. Implemented as an USB full speed device with bulk transfer endpoint
12. Support 3V/5V card
|
Interfaces |
|
|
N99 |
N58 |
N59 |
N68 |
N78 |
|
Host |
USB |
• Full speed USB 2.0 (12 Mbps)
• USB Bus powered device
• CCID compliant |
√ |
√ |
√ |
√ |
√ |
|
Human |
optical |
• yellow (blue) / red LED,
|
√ |
√ |
√ |
√ |
√ |
|
Software |
API
|
• PC/SC
• CT-API (thru wrapper on top of PC/SC) |
√ |
√ |
√ |
√ |
√ |
Operating
Systems |
|
• Windows® 7(32bit/64bit)
• Windows® Vista(32bit/64bit), XP, Server 2003, 2000, ME, 98
• Windows® CE 3.0, 4.1, 4.2, 5.0, 6.0
• MacOS 10.4, Solaris, Linux (2.4.x, 2.6.x) |
√ |
√ |
√ |
√ |
√ |
|
Cable |
|
• Cable: 120cm long with USB type A connector |
√ |
√ |
√ |
√ |
√ |
|
Solt |
ISO7816 |
1 |
√ |
√ |
√ |
√ |
√ |
|
|
sim |
1 |
|
|
|
√ |
|
material
|
|
ABS |
√ |
√ |
√ |
√ |
|
|
|
|
PVC |
|
|
|
|
√ |
|
Smart Card |
contact |
1. Support EMV Level 1 specification
2. Support USB 2.0 full speed
3. Based on ISO7816 implementation
4. Support PC Smart Card industry standard – PC/SC 1.0/2.0
5. Support Microsoft Smart Card for Windows
6. Support Power Saving Mode
7. Support single slot
8. Support T0, T1 protocol
9. Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via
10. Support ISO7816 Class A, B and C (5V/3V/1.8V) card
11. Support T0, T1 protocol, I2C memory card,
12. Based on USB-CCID class, short APDU level
13. Compatible with Microsoft USB-CCID driver
14. Support 1.8V/3V/5V card
15. Support Windows 98/me/2000/xp/vista/7,
Mac OS10.4, Linux or above System.
16.Frictioncontact,200,000insertions |
√ |
√ |
√ |
√ |
√ |
|
Dimensions |
LxWxH[mm] |
• 85 x 72 x 17 |
√ |
|
|
|
|
|
|
|
• 65 x 84 x 18 |
|
√ |
|
|
|
|
|
|
• 85 x 65 x 25 |
|
|
√ |
|
|
|
|
|
• 65 x 65 x 10 |
|
|
|
√ |
|
|
|
|
• 68.3 x 61.8 x 15.7 |
|
|
|
|
√ |
|
W eight |
[g] |
• 120 |
√ |
|
|
|
|
|
|
|
• 72 |
|
√ |
|
|
|
|
|
|
• 80 |
|
|
√ |
|
|
|
|
|
• 45 |
|
|
|
√ |
|
|
|
|
• 42 |
|
|
|
|
√ |
Operating
Conditions |
Temperature[°C]
Humidity[%] |
• -20°C ------60 °C
• 90 (non-condensing) |
√ |
√ |
√ |
√ |
√ |
|
Approvals |
Functional |
• USB-IF
• Microsoft® WHQL 2000, XP, Server2003,Vista,7
• EMV 2000 Level 1
• Application Programs
• Corporate Network
• Access
• Internet / Intranet Access
• Electronic Cash
• Credit and Debit
• Loyalty
• GSM |
√ |
√ |
√ |
√ |
√ |
|
Environmental |
• RoHS, WEEE,CE,FCC,WHQL
• REACH compliance |
√ |
√ |
√ |
√ |
√ |
