Product Description

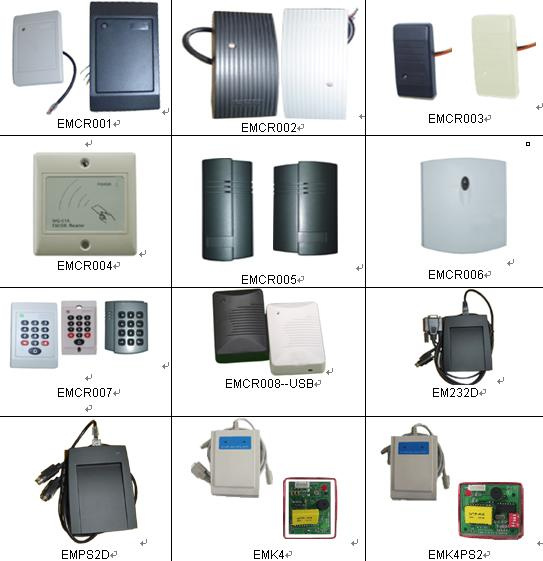

Item name: EMCR001
PowerRequirements +12V DC
Current Consumption 65mA nominal
Weight: 250 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree Dimensions: 100mm*40mm
Output: WG26, RS232, WG42, RS485, SY485 and ABA only available to special order.
Reading range: 10-15cm
Item name: EMCR002
Power Requirements +12V DC
Current Consumption 65mA nominal
Weight: 150 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 120mm*80mm
Output: WG26, SY485
Reading range: 8-10cm available to special order.
Item name: EMCR003
Power Requirements +12V DC
Current Consumption 65mA nominal
Weight: 100 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 150mm*80mm*43mm
Output: WG26, SY485
Reading range: 8-10cm
Item name: EMCR004
Power Requirements: +12V DC
Current Consumption 65mA nominal
Weight: 200 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 80mm*60mm(Standard 86 box reader)
Output: WG26,
Reading range: 10-15cm
Item name: EMCR005
Power Requirements +12V DC
Current Consumption 65mA nominal Weight: 150 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 100mm*40mm
Output: WG26, SY485, RS485, RS232
Reading range: 8-15cm
Item name: EMCR006
Power Requirements +12V DC
Current Consumption 65mA nominal Weight: 300 g
Frequency 125 kHz Proximity EM ID Card
Transponder Read-only 64 bits, Manchester encoded
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 120mm*80mm
Output: WG26, SY485, RS485, RS232
Reading range: 8-15cm
Item name: EMCR007
Power Requirements +12V DC
3x4 keypad available Weight: 250 g
Frequency 125 kHz Proximity EM ID Card
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 120mm*80mm
Output: Standard WG26
Reading range: 8-15cm
Item name: EMCR008--USB
Keyboard emulation without external power
Weight: 200 g
Frequency 125 kHz Proximity EM ID Card
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 120mm*90mm
No drivers, no programming.
Reading range: 8-15cm
Item name: EM232D
Without external power
Weight: 200 g
Frequency 125 kHz Proximity EM ID Card
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 110mm*80mm
Output: RS232 with 9600BPS 1n 8
Reading range: 10-15cm
Item name: EMPS2D
Keyboard emulation without external power
Weight: 200 g
Frequency 125 kHz Proximity EM ID Card
Read Indication LED and Beeper
Temperature: -15Degree and +55Degree
Dimensions: 110mm*80mm
Reading range: 10-15cm.
TEFECT is one of the biggest domestic manufacturers in contact card, RFID and RFIC series products including card, special size card, key tag, label, card reader and writer, and terminals (More details check our catalogue). Our factory boasts a production base covering a land area of 2500 square meters, 250 staffs, and more than 20 technicians, with yearly output 20, 000, 000PCS of standard cards, special size card and more than 100, 000PCS readers. During passed more than 15years, we devoted ourselves to the Hi-tech development and intelligent products. Through these years' endeavor, now we have formed an aggregation in studying, manufacturing, marketing, and after services.
Cards products include various available chips covering 125KHz, 13.56MHz and 915MHz( ISO 14443, ISO15693, ISO18000 and ISO EPC), no battery, such as EM4100, EM4102, TK4100, Temic5557, Mifare1kS50, Mifare4KS70, Ultralight, Hitag1, Hitag2, HitagS, I-code1, I-codeSLI, SLE66R35, SHC1104, FM11RF08, SR176, ATMEL 88RF020, Ti2048, Ti256, Legic256, Inside 2k\16K, U-code HSL, U-code EPC, GEN2, XRA00.
Reader products include reading and writing module, readers, writers, long-range readers which ranges from 125 KHz, 13.56 MHz to915 MHz, with various output Port such as RS232, RS485, USB, TCP-IP, PS2, WG26, WG34, WG42, ABA, ABA2.
We would like to cooperate with every old and potential client hand in hand and create a wonderful and bright tomorrow jointly.
