Prod Model: |
Sanway W8LM |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Sensitivity: |
Lf+Mf:100db, Hf:106db |
Finish: |
Textured Paint |
Dimensions: |
243X620X400mm |
Noise: |
<102dB |
Application: |
Commercial |
THD: |
0.005%-0.01% |
Product Description

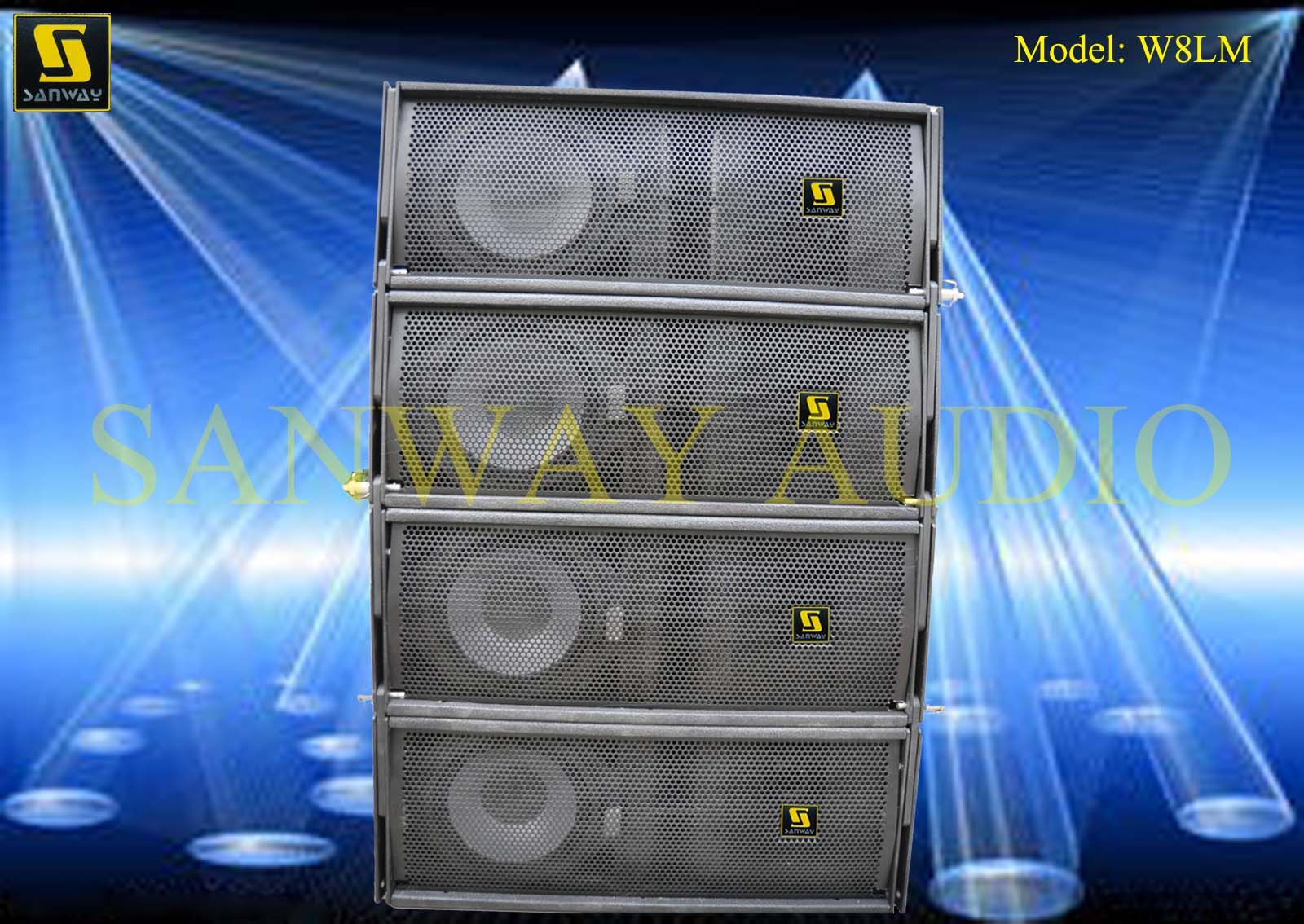

Small Line Array, 8'' Audio W8LM
1). Compact Mini Line Array Speaker System
2). Water Proof, with LF8''x1, MF8''x1 and HF1.4''x2 Neodymium Dirivers
3). Textured Paint Waterproof Line Array Speaker Cabinet
4). Small Line Array, 8'' Audio Professional Speaker
APPLICATIONS
Theatre Sound Reinforcement, line array dj speaker
Live Sound Reinforcement, line array sound system
Corporate Events, professional line array audio
Fixed Installations
Delay systems for large scale outdoor pro audio sound reinforcement
Specification:
Type | W8lm 12 Inch Passive Line Array DJ Speaker |
Drivers: LF+MF section | 8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator 8" (200mm)/2" (50mm) voice coil, front horn loaded, rear reflex loaded |
Drivers: HF section | 2 x 1" (25mm) exit HF compression drivers, horn loaded |
Rated Power: | LF + MF: 400W AES, 1600W peak HF: 75W AES, 300W peak |
Sensitivity: | LF+MF:100dB, HF:106dB |
Maximum SPL | LF + MF: 125dB continuous, 131dB peak HF: 125dB continuous, 131dB peak |
Nominal Impedance | LF + MF: 12 ohms HF: 12 ohms |
Enclosure | Vertical , trapezoid with 3.75º wall angle, multi-laminate ply-wood construction |
Finish | Textured paint |
Protective Grille | Perforated steel |
Connectors | 2xNeutrik NL4 |
Dimensions: | W) 620mm * (H) 243 mm * (D) 400mm |
Weight: | 29kg |
