| Prod Model: |
FP9000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Impedance: |
2 Ohms Load Stable |
| Heatsink: |
Pure Copper |
| Two Version: |
110V or 220V Are Avaliable |
| Warranty: |
2 Years |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 110V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
Td |
Product Description
Quick details :
8ΩStereo Power(RMS) | 1600WX2 |
4ΩStereo Power(RMS) | 3000WX2 |
2ΩStereo Power(RMS) | 4500WX2 |
8ΩBridged Power(RMS) | 6000W |
4ΩBridged Power(RMS) | 9000W |
Net weight(kg) | 13 |
Gross weight(kg) | 18 |
Dimensions (W×H×D) | 483×88×396mm |
Packing dimension | 580×180×560mm |
Features
1 : It is a small size , light weight and high efficiency ,high power and high reliability.
Both mobile and fixed installation performance are the best choice for you .
2 : High-efficiency amplifier output circuit , small size ,high power density,Hifi-lever tone .
3 : It has full function protection, it includes power soft start,overload and short circuit,DC, overheating , clipping limiter function,especially without output relay protection, it has reflected the rapid,accurate, is the relay cant not be compared.
Applications :
1. Churches, Museums, Sports venues, Conference centres,
2. Theatres, Auditoria, Shopping malls, Transport terminals,
3. Concert halls, Bars, Restaurants, Lecture theatres
Specifications :
Output Power | 20-20kHz, 1W with 1 khz |
Frequency Response(+o/-0.3dB, 1W/8Ω) | 20 Hz - 34 kHz |
Signal-to-Noise Ratio | >112 dBA |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
Class | TD |
Channel separation (Crosstalk) at 1 kHz | >70 dB |
TourClass Protection | short circuit, DC voltage, turn-on/off transient,
current inrush |
Operating voltage | 130-265 V / 65-135 V selectable |
Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance | 20 Kohms |
Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Binding Posts 2-pole |
Level adjustment (per ch.) | Front-panel potentiometer, 31 position
detented from -inf to 0 dB |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.

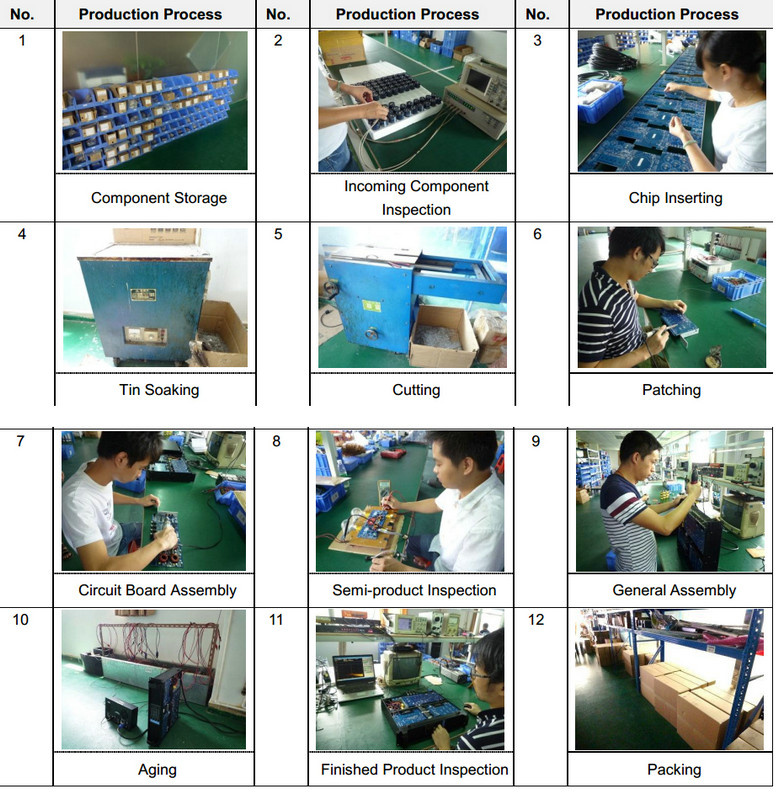

With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
