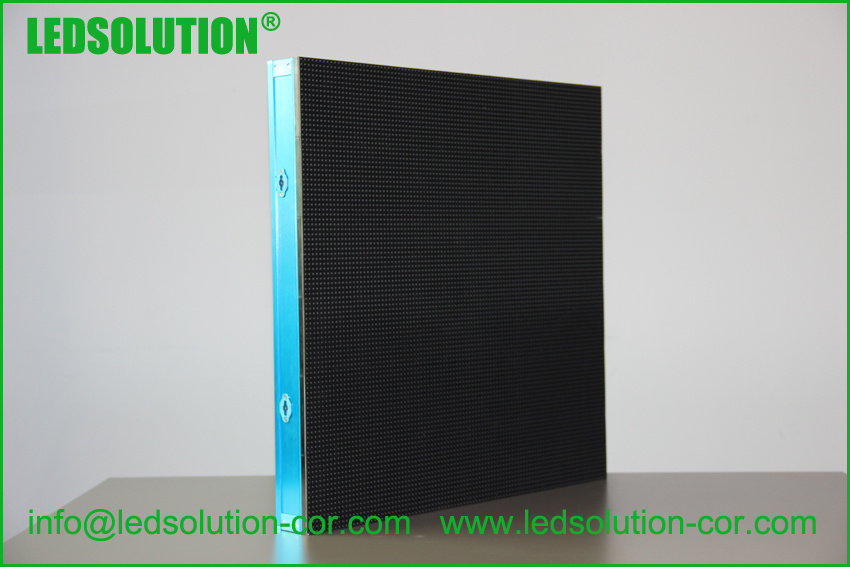

Slim Indoor LED Display P6

Slim Indoor LED Display P6
Price: Negotiable/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LS-SI-P6-0.576mx0.576m
Markets: North America,South America,Eastern Europe
Brightness: 1800 Nits
Viewing Angle: 140/140
Panel Weight: 9 Kg
Panel Size: 576X576mm
Resolution Per Panel: 96X96
Panel Mode: Slim Rental
Mounting System: Hanging / Fixed
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 6mm
Display Type: LED Video Display
Application: Shopping Guide
Certification: ETL
Pixel Configuration: 3in1 SMD
Pixel Density: 27,778 Dots Per Sq. Meter
IP Rating: 22

Product Description


Introduction
LEDSOLUTION is a professional manufacturer of LED display.We dedicate to supply high quality products with competitive prices.Our products and services are well-received around the world . It's our mission to satisfy every customer's expectation to the greatest extend.

General
Slim LED display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.

Specification
* CE, RoHS, ISO, UL, ETL certificates;
* 3-years warranty;
* Light weight;
* Ultra thin;
* Fast and safe assembly


 Model Parameter

Parameter

Unit

Value

Pitch

mm

6

Brightness

nits

1,800

Color temperature

deg. K

6,500

Viewing angle - Horizontal (50% brightness)

deg.

140(-70 ~ +70)

Viewing angle - Vertical (50% brightness)

deg.

140(-70 ~ +70)

Panel weight

kg

9

Panel width

mm

576

Panel height

mm

576

Panel depth

mm

50

Panel area

sq. m.

0.332

Panel material



Epoxy paint coated Aluminum

Panel Mode



Slim rental

Operating temperature range

deg. C

-30 to +60

Humidity operating

RH

10% ~ 90%

Pixel type and configuration

R/G/B

3in1 SMD

Resolution per panel



96x96

Dot per panel



9,216

Dot per sq. meter



27,778

LED per sq. meter



27,778

Recommended minimum viewing distance

m

4.5

Recommended best viewing distance

m

6~18

Colors



281 Trillion

Grey scale (linear)

Levels

65,536 levels per color

Brightness control

Levels

100

Contrast ratio



1,000:1

Processing depth

bit

16

Video frame rate

Hertz

60

Display refresh rate

Hertz

180~3,000

Input voltage (nominal)

VAC

110 to 240

Input power frequency

Hertz

50 to 60

Input power (max)

Watts / panel.

200

Input power (typical)

Watts / panel.

80

Lifetime (50% brightness)

Hours

≥100,000

Red wavelength (dominant)

nm

620~625

Green wavelength (dominant)

nm

520~525

Blue wavelength (dominant)

nm

470~475

Multimedia data format



DVI,MPG,AVI,WMV,RM etc.

Data interconnection



UTP Cat 5/Optical Fiber

Mounting system



Hanging / Fixed
