P10 High Quality Outdoor Full Color LED Display with Competitive Price
| Price: |
US $ 1000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LS-O-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
6,000nits |
| Viewing Angle: |
130/60 |
| Panel Width: |
1,280mm |
| Panel Height: |
960mm |
| Panel Depth: |
170mm |
| Resolution Per Panel: |
128 X 96 |
| Panel Material: |
Epoxy Paint Coated Cold Rolled Steel |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Average Power Consumption: |
480W/M&Sup2 |
Product Description

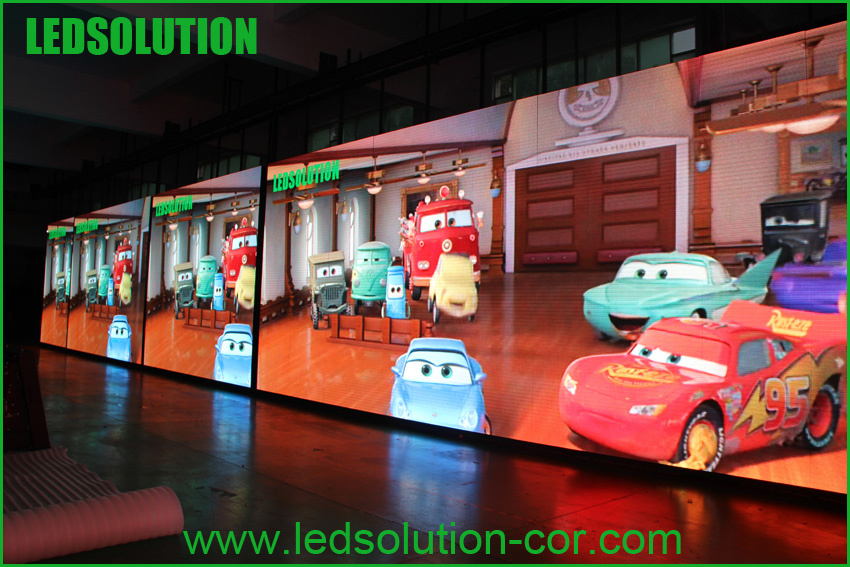

LEDSOLUTION P10 Outdoor LED Display
LEDSOLUTION's Outdoor LED Display use state-of-art LEDs, with high brightness of 6000 to 8000nit.
The display has the advantage of excellent flatness, super uniform color and brightness and long viewing distance.
Main Features:*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness over 6000 nits
Specifications:| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 6, 000 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle - Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 69 |
| Panel width | mm | 1, 280 |
| Panel height | mm | 960 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 1.2288 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 1, 1, 1 |
| Resolution per panel |
| 128 x 96 |
| Dot per panel |
| 12, 288 |
| Dot per sq. meter |
| 10, 000 |
| LED per sq. meter |
| 30, 000 |
| Recommended minimum viewing distance | m | 7 |
| Recommended best viewing distance | m | 10~30 |
| Colors |
| 281 Trillion |
| Grey scale (linear) | Levels | 5536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/Cabinet | 1, 200 |
| Input power (typical) | Watts/Cabinet | 480 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with 4pcs M10 bolts |
Product Photos:
