| Prod Model: |
sle5542 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Original: |
Shenzhen.China(Mainland) |
| Protocol: |
ISO14443A/15693 |
| Chip: |
Sle5542 |
| Materials: |
ABS PVC etc |
| Waterproof: |
Yes |
| Free Sample: |
Available |
| Export Markets: |
USA/Brazil/France etc |
| Factory: |
Yes |
| Function: |
Information |
| Material: |
ABS |
| Frequency: |
Low Frequency |
Product Description

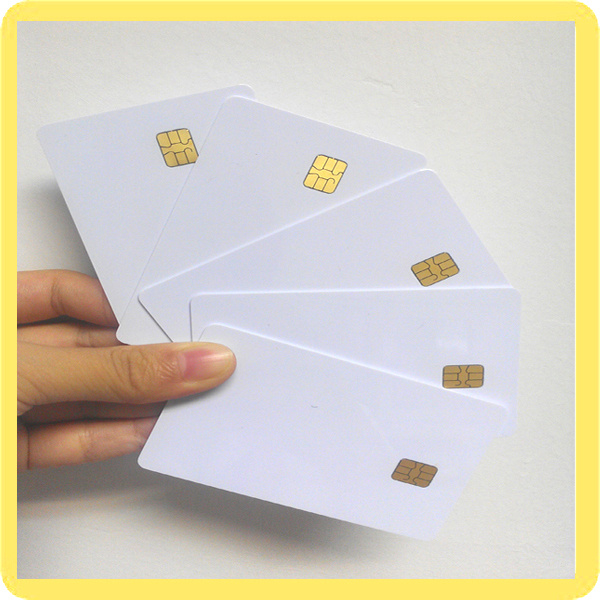

SLE5542 card
Features:
100% functional compatibility to SLE 4442.
256 x 8 bit EEPROM organization of Data Memory.
32 x 1 bit Protection Memory.
-Byte-wise write protection of first 32 addresses (byte 031) of Data Memory
-Manufacturer Code for unique identification of application
Data Memory (addresses 0.255) alterable only after verification of 3-Byte.
Programmable Security Code (PSC).
Two-wire link protocol.
-Byte-wise addressing
-End of processing indicated at data output
Contact configuration and Answer-to-Reset (synchronous transmission) in accordance to standard ISO/IEC 7816.
Sophisticated electrical characteristics.
-Ambient temperature. 40. +80° C for chip, . 25. +80° C for module
-Supply voltage 5 V ± 10 %
-Supply current < 3 mA (typical 600 µ A)
-EEPROM erase / write time 5 ms
-ESD protection typical 4, 000 V
-EEPROM Endurance minimum 100, 000 erase / write cycles
-Data retention for minimum of 10 years
Ms. Amy Lee
Shenzhen Yongkaida Technology Co., Ltd.
Tel: 86 755 83242651
|
Dimensios: |
L86 × W54 × T0.8 (+/- 0.04)mm |
|
L80 × W120 × T1.0 (+/- 0.04)mm |
|
L70 × W100 × T1.0 (+/- 0.04)mm |
|
Weight: |
5.8g+/-0.5g |
|
Standard Color: |
White |
|
Printing Method: |
Offset Printing, Silkscreen Printing |
|
Silver , Gold, Bronze Glittering Effect, UV Printing |
|
Number Printing Options: |
Ink Jet Number, Embossing Number |
|
Thermal Transfer Number, Laser Number |
|
Material Options: |
PVC, PET, ABS, Paper |
|
Surface Options: |
Glossy, Matte |
|
Magnetic Stripe Options: |
Loco 300Oe, 350Oe |
|
Hico 650Oe, 2750Oe, 4000Oe |
|
Other Available Options: |
Chip Encoding, Barcode Printing |
|
Signature Panel, Hole Punching |
|
TRW Thermo Rewrite Foil |
|
Hole Punching, Lanyard Slot |
|
Ballpoint pen Writable / Stamp writable Foil |
|
125KHz Chips: |
EM4100 / H4100 / TK4100 / SMC 4001 |
|
EM4102 / H4102, EM4200 |
|
EM4205, EM4305, EM4450, EM4550 |
|
T5557 / T5567 / ATA5567 / ATA5577 |
|
Hitag1, Hitag2, HitagS |
|
13.56MHz Chips: |
LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048 |
|
M1 1K S50 / MF1 S50, M1 4K S70 / MF1 S70 |
|
M1 PLUS S 2K, M1 PLUS S 4K, M1 S20 |
|
M1 ULTRALIGHT, M1 ULTRALIGHT C |
|
M1 DESFire, M1 DESFire EV1 8K (MF3 IC D81) |
|
M1 DESFire EV1 4K (MF3 IC D40) |
|
M1 DESFire EV1 4K (MF3 IC D41) |
|
M1 1K-Compatible / FUDAN 1K / TKS50 |
|
I.CODE SLI SI2 / I.CODE 2, I.CODE 1, LRIS2K, LRI64 |
|
Tag-IT Ti2048, Tag-IT Ti256 |
|
INSIDE Picopass 32KS, INSIDE Picopass 2K |
|
ST SR176, SRI512, SRIS4K |
|
868MHz / 915MHz Chips: |
NXP UCODE HSL, NXP UCODE EPC Gen 2, |
|
UCODE GEN2 XL, UCODE GEN2 XM, |
|
XRA000, XRA Gen 2, ATA5590 |
|
ALIEN ALN-9540 / 9662 Squiggle, |
|
UCODE GEN2 XL, UCODE GEN2 XM |
|
NXP UCODE EPC V1.19, Impinj Monza Gen2 |
|
EM4324 , EM4444, EM4033, EM 4133 |
|
Key applications |
Public transportation |
|
Access management |
|
Event ticketing |
|
Gaming |
|
Identity |
|
Sample Availability: |
Free samples are available upon request. |
|
Stock Availability: |
Large quantities of the best-selling products are normally available in stock and can be shipped immediately. |
|
Packing Details: |
1pc/opp, 200 pieces per box, 2000 pieces per carton. |
|
Carton Size: 33*25*13CM / 14kg per carton. |
Shenzhen Yongkaida Technology Co., Ltd created in 2005, the company gathered in the high-tech enterprises in Shenzhen City, Nanshan District, the company has so far been committed to using the most advanced technology to create high-quality brand, product quality and human of service to win customers for a long time uphold the "talent thriving enterprise" concept, vigorously to attract a large number of talents to our company office, management is more strict and efficient known. Companies with "integrity-based, timeless quality, service satisfaction" business philosophy, integrity and first class technology, rich experience for our customers to provide high quality products and good service.
Products for contact and contactless IC card and RFID tag products, the industry focused on the production of Shenzhen Integrated Circuit cards and RFID products, professional manufacturers. The company has printed, laminated, contact packaging, chip packaging and other advanced production lines, while addressing the follow-up play yards, personalize and other auxiliary services; An extension of time with different customer needs Yongkaida accumulated rich production experience to create, while small to large development process starting from nothing and some are a reminder of the Yongkaida people: To advance awareness of quality should be excellent, high quality company will have to survive.
Currently, Yongkaida business network throughout the country, while all around the world in recent years with the industry to actively promote the application of RFID products, domestic and foreign industries the demand for RFID products big increase, the product is widely used in public transport, highways, schools, telecommunications, Internet cafes, shopping malls, logistics, consumer and safety, field identification. Adhering to the quality of survival, integrity and development, backed by the principle of technological innovation in the industry to go before, and will continue to strive to meet the needs of different products from the market, and we look forward to Yongkaida people hand in hand brilliant.
By the quality of survival, relying on the customer service satisfaction.
