| Prod Model: |
SLE5542 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Original: |
Shenzhen.China(Mainland) |
| Protocol: |
ISO14443A/15693 |
| Chip: |
Sle5542 |
| Materials: |
ABS PVC etc |
| Waterproof: |
Yes |
| Free Sample: |
Available |
| Export Markets: |
USA/Brazil/France etc |
| Factory: |
Yes |
| Function: |
Information |
| Material: |
ABS |
| Frequency: |
Low Frequency |
Product Description

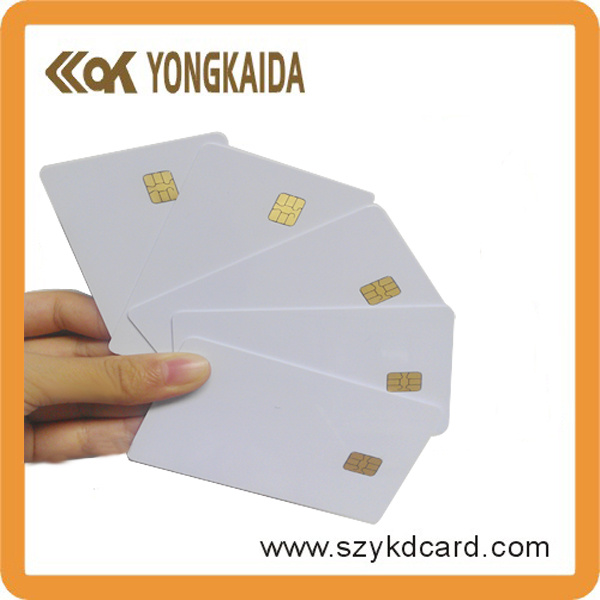

SLE5542 card
Features:
100% functional compatibility to SLE 4442.
256 x 8 bit EEPROM organization of Data Memory.
32 x 1 bit Protection Memory.
-Byte-wise write protection of first 32 addresses (byte 031) of Data Memory
-Manufacturer Code for unique identification of application
Data Memory (addresses 0.255) alterable only after verification of 3-Byte.
Programmable Security Code (PSC).
Two-wire link protocol.
-Byte-wise addressing
-End of processing indicated at data output
Contact configuration and Answer-to-Reset (synchronous transmission) in accordance to standard ISO/IEC 7816.
Sophisticated electrical characteristics.
-Ambient temperature. 40. +80° C for chip, . 25. +80° C for module
-Supply voltage 5 V ± 10 %
-Supply current < 3 mA (typical 600 µ A)
-EEPROM erase / write time 5 ms
-ESD protection typical 4, 000 V
-EEPROM Endurance minimum 100, 000 erase / write cycles
-Data retention for minimum of 10 years
Ms. Amy Lee
Shenzhen Yongkaida Technology Co., Ltd.
Tel: 86 755 83242651
|
Dimensios: |
L86 × W54 × T0.8 (+/- 0.04)mm |
|
L80 × W120 × T1.0 (+/- 0.04)mm |
|
L70 × W100 × T1.0 (+/- 0.04)mm |
|
Weight: |
5.8g+/-0.5g |
|
Standard Color: |
White |
|
Printing Method: |
Offset Printing, Silkscreen Printing |
|
Silver , Gold, Bronze Glittering Effect, UV Printing |
|
Number Printing Options: |
Ink Jet Number, Embossing Number |
|
Thermal Transfer Number, Laser Number |
|
Material Options: |
PVC, PET, ABS, Paper |
|
Surface Options: |
Glossy, Matte |
|
Magnetic Stripe Options: |
Loco 300Oe, 350Oe |
|
Hico 650Oe, 2750Oe, 4000Oe |
|
Other Available Options: |
Chip Encoding, Barcode Printing |
|
Signature Panel, Hole Punching |
|
TRW Thermo Rewrite Foil |
|
Hole Punching, Lanyard Slot |
|
Ballpoint pen Writable / Stamp writable Foil |
|
125KHz Chips: |
EM4100 / H4100 / TK4100 / SMC 4001 |
|
EM4102 / H4102, EM4200 |
|
EM4205, EM4305, EM4450, EM4550 |
|
T5557 / T5567 / ATA5567 / ATA5577 |
|
Hitag1, Hitag2, HitagS |
|
13.56MHz Chips: |
LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048 |
|
M1 1K S50 / MF1 S50, M1 4K S70 / MF1 S70 |
|
M1 PLUS S 2K, M1 PLUS S 4K, M1 S20 |
|
M1 ULTRALIGHT, M1 ULTRALIGHT C |
|
M1 DESFire, M1 DESFire EV1 8K (MF3 IC D81) |
|
M1 DESFire EV1 4K (MF3 IC D40) |
|
M1 DESFire EV1 4K (MF3 IC D41) |
|
M1 1K-Compatible / FUDAN 1K / TKS50 |
|
I.CODE SLI SI2 / I.CODE 2, I.CODE 1, LRIS2K, LRI64 |
|
Tag-IT Ti2048, Tag-IT Ti256 |
|
INSIDE Picopass 32KS, INSIDE Picopass 2K |
|
ST SR176, SRI512, SRIS4K |
|
868MHz / 915MHz Chips: |
NXP UCODE HSL, NXP UCODE EPC Gen 2, |
|
UCODE GEN2 XL, UCODE GEN2 XM, |
|
XRA000, XRA Gen 2, ATA5590 |
|
ALIEN ALN-9540 / 9662 Squiggle, |
|
UCODE GEN2 XL, UCODE GEN2 XM |
|
NXP UCODE EPC V1.19, Impinj Monza Gen2 |
|
EM4324 , EM4444, EM4033, EM 4133 |
|
Key applications |
Public transportation |
|
Access management |
|
Event ticketing |
|
Gaming |
|
Identity |
|
Sample Availability: |
Free samples are available upon request. |
|
Stock Availability: |
Large quantities of the best-selling products are normally available in stock and can be shipped immediately. |
|
Packing Details: |
1pc/opp, 200 pieces per box, 2000 pieces per carton. |
|
Carton Size: 33*25*13CM / 14kg per carton. |
