| Prod Model: |
JL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Rate: |
1.9m3/H |
| Lift: |
5m |
| Cleanness: |
7nas |
| Power: |
0.75kw |
| Power Supplier: |
380V 50Hz 3pH(as Per User's Option) |
| Weight: |
95kg |
Product Description

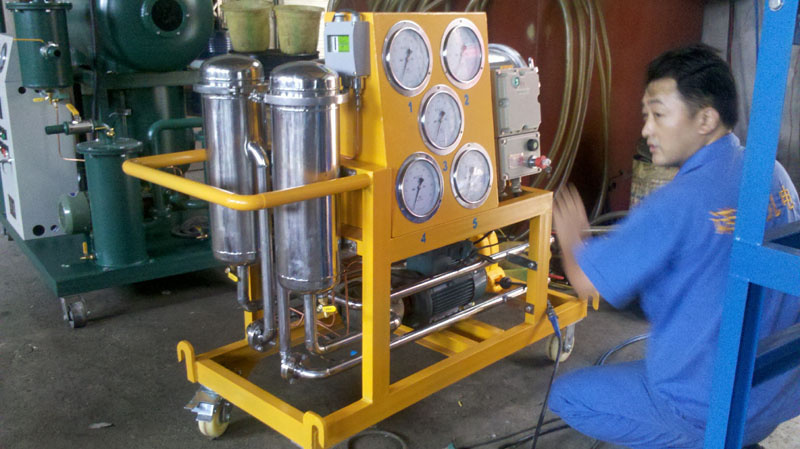

Series JL portable oil purifier
Application:Series JL portable oil purifier can do precision filtering of unqualified insulating oil, turbine oil, lubricating oil etc. According to the customer's requirements, it can be equipped multi-stage filters.Series JL oil filtration device has practical design, which can be convenient moved and maintained, with low noise, high adsorption and stable operation. It also can be used as oiling machine for long distance and high-lift oiling works.
Technical parameters:
Index name |
Unit |
JL-32 |
JL-50 |
JL-80 |
JL-150 |
JL-200 |
Flow rate |
m3/h |
1.9 |
3 |
6 |
9 |
12 |
Lift |
m |
5 |
8 |
8 |
10 |
15 |
Cleanness |
NAS |
7 |
6 |
6 |
6 |
6 |
Power |
KW |
0.75 |
0.75 |
2.2 |
3 |
4 |
Power supplier |
|
380V 50HZ 3Ph(As per user's option) |
Weight |
KG |
95 |
105 |
120 |
130 |
140 |
Special options:Our company provide good quality machine with competitive price; machine warranty time is 18 months from the delivery date. We can make the specified machine as per user's options:
1. Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2. Choosing different kinds vacuum pump, oil pump, and electric parts.
3. Anti-explosion (EX type) electric parts.
4. Equips moisture sensor and dielectric strength tester on the machine.
5. Filter elements for different requirements on filtering precision
6. Stainless steel material for oil purifier body.
7. Automatic PLC control system

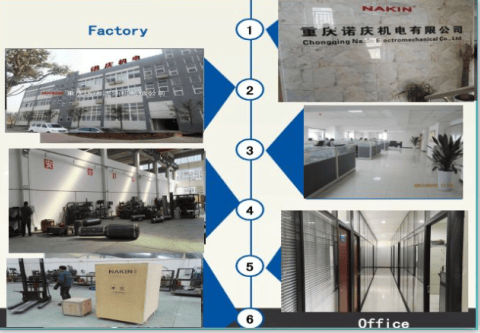

Company Show:
Delivery service
Our Products List :
ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator
Contact us ,we will recommend the most suitable oil purifier to you.
