| Prod Model: |
SGDLCM1612A301(1.1t, normal temp. ) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driving Conditions: |
1/128duty 1/11bias |
| Connection Mode: |
COB |
| Display Mode: |
Transflective/Positive |
| Operating Temperature: |
0~50 C Degrees |
| Storage Temperature: |
-10~60 C Degrees |
| Screen Size: |
≤17" |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:10 |
| Type: |
STN |
| Widescreen: |
Not Widescreen |
| Response Time: |
30ms |
| 3D: |
Not 3D |
| Feature: |
No Touch Panel |
| Optimum Resolution: |
160*128 |
| Interface Type: |
COB |

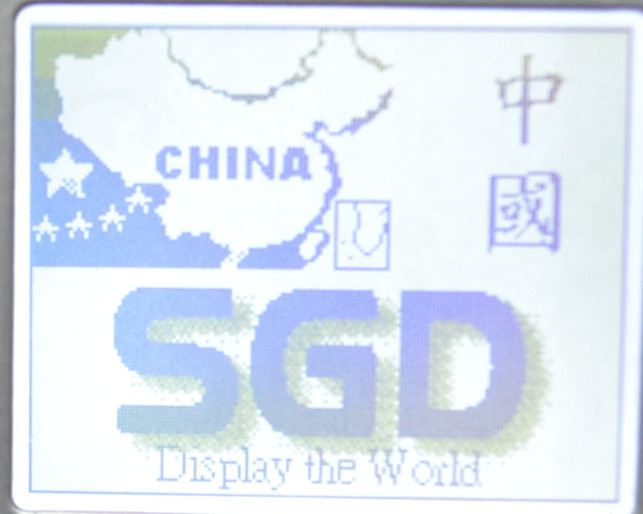

Product Description
Display Color positive/Transflective
Drive IC:IST3754TA0
Interface Input DATA: 8-BIT high speed bus interface
Delivery Term:45 days
Display mode:FSTN
The thickness of single glass:1.1t
| Viewing direction | 6 O'CLOK |
| Module Size | 50.0(W)*63.75(H)*4.0(T) |
| Viewing area | 44.0Min(W)*37Min(H) |
| Resolution | 160*128 |
| Effective display area | 41.105(W)*32.88(H) |
| Dot size | 0.242(W)*0.242(H) |
| Dot Pitch | 0.257(W)*0.257(H) |
| Driving voltage of LCD | 6.0V |
Solomon Goldentek Display Corp. (SGD) established in 1990, is committed to continuous efforts to be the leading trend in display industry. SGD manufactures products such as TN/STN LCD, LCM, TFT and provides turn key solution in research and development, production and technical consultancy. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives. SGD has profound manufacturing structure such as: Complete factory facility, reasonable workshop layout, state of the art equipments, professional technical support, well-trained operators, secured quality control and efficient process management.
SGD follows the rule of ABC management theory: A, Act in concert, it is the fundamental aspects for efficient operation; B, Bring out innovation, for everlasting motivation; C, Creative ahead step, to maintain energetic. In this highly competitive industry, SGD distinguished itself by providing high quality products. SGD manufactures the highest quality products throughout SGD' S management, protocols and Total Quality Control. SGD has passed ISO 9001, ISO14001, TS16949 certifications as well as RoHS and REACH certifications. SGD is confident and determined to overcome endless challenges to become the best small-to-medium sized display customization company. SGD' S promises: To provide services to customer' S satisfaction is our faith and to create win-win situation for both customer and SGD is our ultimate goal.
