| Prod Model: |
GWTO15NNFJ1E01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1.54 Inch |
| Resolution: |
2400*240 Dots |
| Connection Type: |
FPC |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Aspect Ratio: |
5:4 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
30ms |
| 3D: |
Not 3D |
| Feature: |
Portable Device Display |
| Optimum Resolution: |
240*240 |
| Interface Type: |
FPC |
Product Description
1.54 inch TFT LCM
Resolution: 240*240
Driven approach:
VCC: 2.8V
Operating mode: TFT
Product perspective:
Connection: FPC
Operating Temperature: -10~60 degree
Storage Temperature: -20~70 degree.
| | 1.54" |

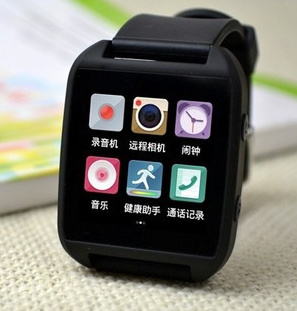

| | | Wearable device |
| Model name | | GWTO15NNFJ1E0 |
| Diagonal size | Inch | 1.54" |
| Image representation | | TFT |
| (Display technology) |
| Active area | mm | 27.72mm*27.72mm |
| module Outline: | mm | 31.50mm*35.00mm |
| Thickness | mm | 1.8mm |
| Resolution Pixel | Pixel | 240*240 dots |
| Pixel size | mm | - |
| Pixel pitch | mm | |
| Surface Treatment | % | |
| Data transfer (Interface) | | 3-SPI or 2 data line |
| (eg : Parallel or Serial) |
| Connector type | | FPC |
| Power voltage | V | 2.8V |
| Backlight type | | 3 pcs LED |
| (Light Source) | (white color) |
| Viewing Angle(U/D/L/R), Cr = 10 | ° | 30/30/30/30 |
| Contrast Ratio ( Typ. ) | | 4.5 |
| Brightness | cd/m2 | 400 min. |
| Operating temp | ºC | -10 to 60 |
| Storage temp | ºC | -20 to 70 |
