| Markets: |
North America,Eastern Europe,Western Europe |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
Product Description
Solar water heater, ISO, CE. CCC passed. Long Guarantee, Sample avaible.
Description of goods:

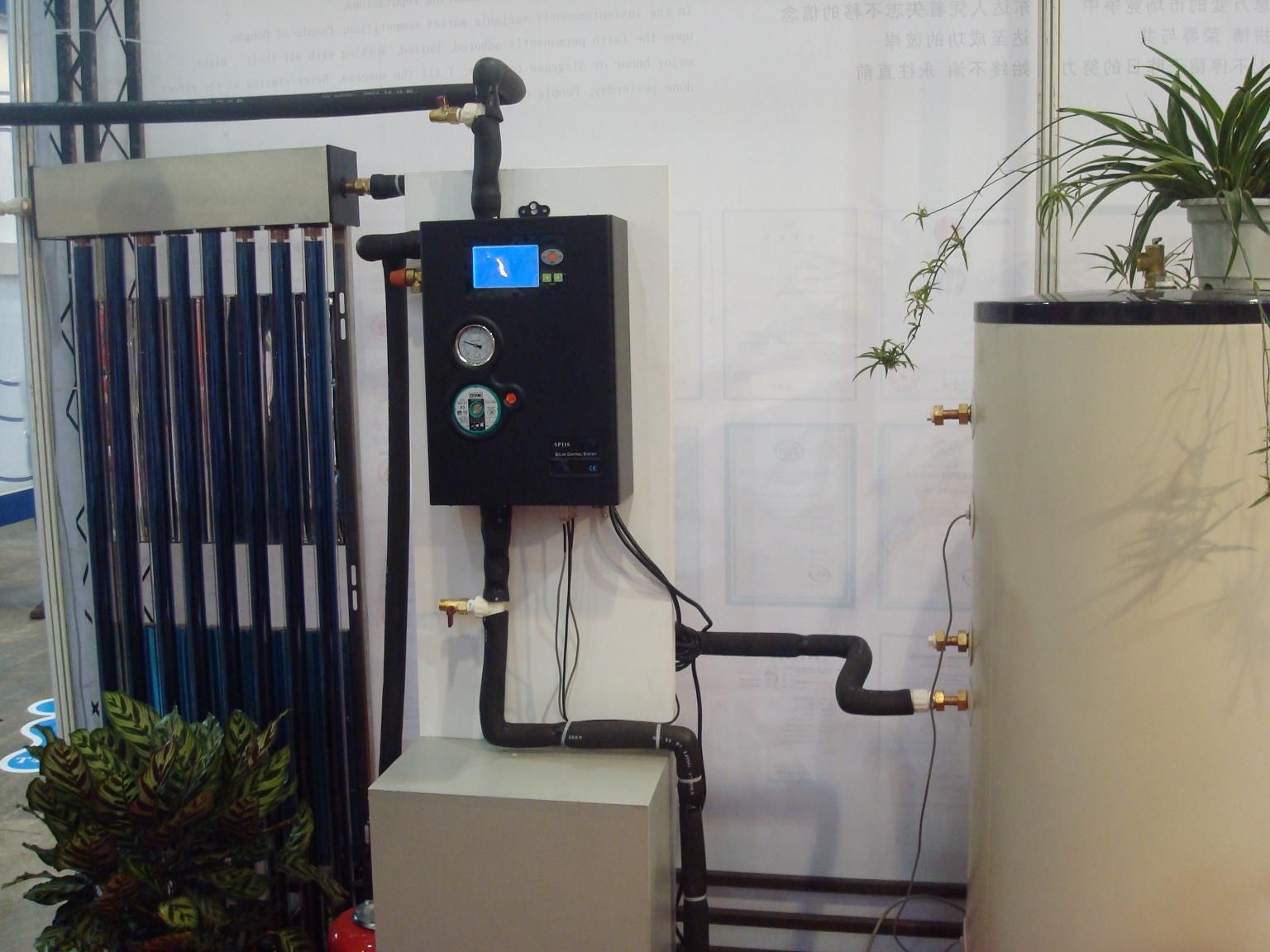

Split pressurized solar water heater is composed of heat pipe solar collector, working station (including circulation pump, intelligent controller, expansion vessel, pressure gauge, sensors and etc) and pressurized water tank
Working principle:
1) When the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically
2) The circulation pump makes heat-conducting liquid circulate automatically
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank
4) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device
5) In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be shut automatically
Features:
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on the inclined roof or flat place
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: No water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) Workable at anytime and enjoyable Multifunction
8) Bathing, washing, domestic heating
Materials:
Inner tank: SUS304-2B food grade stainless steel
Outer tank: Galvanized steel-alloy
Bracket: Complete aluminum-alloy
Thickness: Inner tank: 2mm Outer tank: 0.4mm Bracket: 1.6mm
Heat pipe vacuum tube:
Tri-elements of rose copper, stainless steel and aluminum nitride planting
Straight copper heat pipe with anti-freeze liquid inside will not allow the tube to brake in low temperature
Heat absorption rate: More than 93%
Diameter: 47mm or 58mm
Length: 1500 or 1800mm
Temperature insulation: Rockwool
Thickness: 50mm
Temperature conservation: Maximum 72 hours
Capacity:
Optional 100.150, 200, 250, 300, 400and 500 Liters
Copper coil in water tank for heat transferring as twice heat exchange
Warranty: 3 years for whole system
Standards: ISO9001: 2008, CE
Outer packing: Carton box
ZHONGYI SOLAR TECHNOLOGY Co., Ltd is located at Shuangfeng Industrial Part, Yuanhua Town, Haining City, Zhejiang, China Where is nearly Shanghai and Ningbo Port. We are a national Hi-tech enterprise and founded in 2009 with total investment of 20 million RMB and more than 5000 square meter area.
At the beginning, we specialize in R&D, manufacturing for solar water heater and solar vacuum tube. As the demand of market and customer, In the year 2011, we had expanded our business line to solar light system and solar pump.
For the solar water heater, Our company had exported more than 30, 000PCS per year to Europe, North & South America, Middle-east and Africa Area, total more than 30 other countries and regions. And especially our solar water heater is sold very well in the Mexico market. Also we can design the solar floor heating system and swimming system as customer's requirements.
We had designed a new solar water heater frame that is very easy install and also the packing size is very small. And we had got the certificate of utility model patent for this new frame in 2013.
For the solar light and solar pump, we just start this line in 2011, but the business grows very fast and sold very well in Africa market, South America and Mild- Middle-east. All products had got the CE and TUV certificate.
OEM&ODM service can be provided by ZHONGYI SOLAR and also customer can sell our own brand"SUN-SEEKER".
ZHONGYI SOLAR regards "reasonable prices, good quality and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. Welcome potential buyers to contact us.
