| Prod Model: |

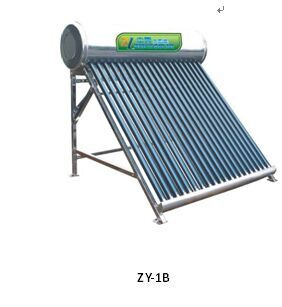

ZY-1B |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Bracket |
| Certification: |
CCC |
| Max. Capacity: |
500 |
Product Description
Working principle
Compact solar water heater relies on density of the water , cold water down, hot water up . To circulate through the collector and water tank. When water in the collector is heated up, it becomes lighter and naturally rises into the water tank. Meanwhile, cooler water in the tank flows down to the collectors
Features:
Compact non- pressured solar water heater system is a kind of solar water heating systems that solar collector and water tank are connected together with the cylinder storage on the top and collector on the bottom .There is no need of pump to push the fluid and no need of pipeline between the collector and water tank. It is a simple and safe solution to get heat power from the sun.
Specification:
1. Vacuum tubes: Three "high" new technology tube with 30% higher performance, Ø 47X1500mm, Ø 58X1800mm, Ø 70X2000mm;
2. Inner tank material: SUS304-2B food grade stainless steel plate with thickness 0.31mm, 0.41mm, 0.51mm;
3. Outer tank material: Imported color steel plate with thickness 0.31mm, 0.41mm;
4. Insulation material: 50mm -60mm polyurethane;
5. Frame material: Imported galvanized steel plate with 18°, 27°,45°;
6. Capacity of water than; 80L,100L,120L,150L,180L,200L,250L,300L,400L,500L;
| Bitmap | Bitmap | Bitmap | Contact us:
Mao-Sale manager
Tel:0086-579-85304084
Http:www.zonyisolar.com |
| Model | Capactity | Vacuum tube | Tank Specification | Frame | Loading Quantity | Price |
| Inner tank | Outer tank | Insulation | Material/Thickness | 20GP | 40HQ |
| Material/thickness | Material/thickness | Material/thickness |
| ZY-1B-5808 | 80L | 58*1800*08pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 90 | 220 | 68.57 |
| ZY-1B-5810 | 100L | 58*1800*10pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 75 | 185 | 78.97 |
| ZY-1B-5812 | 120L | 58*1800*12pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 62 | 150 | 88.47 |
| ZY-1B-5815 | 150L | 58*1800*15pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 52 | 126 | 102.45 |
| ZY-1B-5818 | 180L | 58*1800*18pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 44 | 107 | 116.42 |
| ZY-1B-5820 | 200L | 58*1800*20pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 41 | 98 | 125.49 |
| ZY-1B-5824 | 240L | 58*1800*24pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 34 | 84 | 159.18 |
| ZY-1B-5830 | 300L | 58*1800*30pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 28 | 67 | 183.43 |
| ZY-1B-5836 | 360L | 58*1800*36pcs | SUS304/0.31MM | 201 stainless steel/0.31mm | polyurethane/50mm | 201 SS /1.2mm | 24 | 57 | 220.54 |
ZHONGYI SOLAR TECHNOLOGY Co., Ltd is located at Shuangfeng Industrial Part, Yuanhua Town, Haining City, Zhejiang, China Where is nearly Shanghai and Ningbo Port. We are a national Hi-tech enterprise and founded in 2009 with total investment of 20 million RMB and more than 5000 square meter area.
At the beginning, we specialize in R&D, manufacturing for solar water heater and solar vacuum tube. As the demand of market and customer, In the year 2011, we had expanded our business line to solar light system and solar pump.
For the solar water heater, Our company had exported more than 30, 000PCS per year to Europe, North & South America, Middle-east and Africa Area, total more than 30 other countries and regions. And especially our solar water heater is sold very well in the Mexico market. Also we can design the solar floor heating system and swimming system as customer's requirements.
We had designed a new solar water heater frame that is very easy install and also the packing size is very small. And we had got the certificate of utility model patent for this new frame in 2013.
For the solar light and solar pump, we just start this line in 2011, but the business grows very fast and sold very well in Africa market, South America and Mild- Middle-east. All products had got the CE and TUV certificate.
OEM&ODM service can be provided by ZHONGYI SOLAR and also customer can sell our own brand"SUN-SEEKER".
ZHONGYI SOLAR regards "reasonable prices, good quality and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. Welcome potential buyers to contact us.
