| Prod Model: |
CT-S01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
Stainless Steel |
| Outer Tank: |
Galvanized Steel |
| Insulation: |
High Density Polyurethane Foam 50mm |
| Vacuum Tube: |
Three Coating Layers 58*1800mm |
| Collector: |
Aluminum Alloy Casting and Red Copper Pipe Channel |
| Heat Pipe: |
Red Coper |
| Life Span: |
15years |
| Guaranty: |
5years |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description
Characteristics

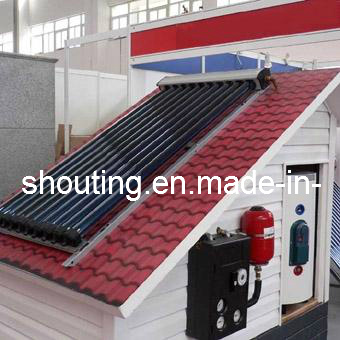

1. The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts.
2. Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof.
3. Module design, arbitrary combination, harmony with the building perfectly.
4. Intelligent control and automatic operation.
5. Anti-freeze No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature.
6. Multifunction bathing, washing, domestic heating, etc.
7. Could work at anytime and use enjoyably.
Technical Parameters
Inner tank SUS 304-2B/2mm
Outer tank Galvanized steel/0.5mm
Insulation high density polyurethane foam 50mm
Vacuum tube 58*1800mm
SS-CU-AIN/ALN coating
Colletor aluminum alloy casting and copper pipe chanel
Bracket Aluminum alloy 1.5mm
0-50 degree
Accessories: Circulation pump, expansion vessel, piezometer, flowmeter
Working pressure 0.7bar
Working temperature -35-50° C
Capacity: 150L 200L 250L 300L 500L
Remark:
Three models of Shouting-S01
Shouting-S010 no coiler Shouting-S011 single coiler Shouting-S012 two coilers in the tank
| Type | Area(M 2 ) | Vacuum tube | Volume(L) | 20GP/40GP/40HQ
Loading Qty(sets) |
| Φ (mm) | Length(mm) | Qty(pcs) |
| CT -S01-15 | 1.939 | 58 | 1800 | 15 | 150 | 29/59/70 |
| CT-S01-20 | 2.595 | 58 | 1800 | 20 | 200 | 22/46/54 |
| CT-S01-25 | 3.251 | 58 | 1800 | 25 | 250 | 20/40/48 |
| CT -S01-30 | 3.907 | 58 | 1800 | 30 | 300 | 18/38/45 |
