Integrative Solar Water Heater

Integrative Solar Water Heater
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CT-IP01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Tank: SUS 304-2b/1.2mm
Outer Tank: Galvanized Steel 0.4mm
Frame: Galvanized Steel
Tube: Three Target Vacuum Tube
Tube Size: 58*1800
Tube Thickness: 1.6-2.2mm
Insulation: High Density Polyurethane Foam 50mm
Warranty: 5 Years for Whole System, 15 Years for Tube
Life Span: 10 Years
Structure: Compact Type
Pressure: Pressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: ISO9001

Product Description

High grade copper coil solar water heater, Sturdy inner tank, Capacity 80L-350L, Good Looking. With CE, ISO, SGS GMC and solar key mark product approvals. 7 years guarantee.

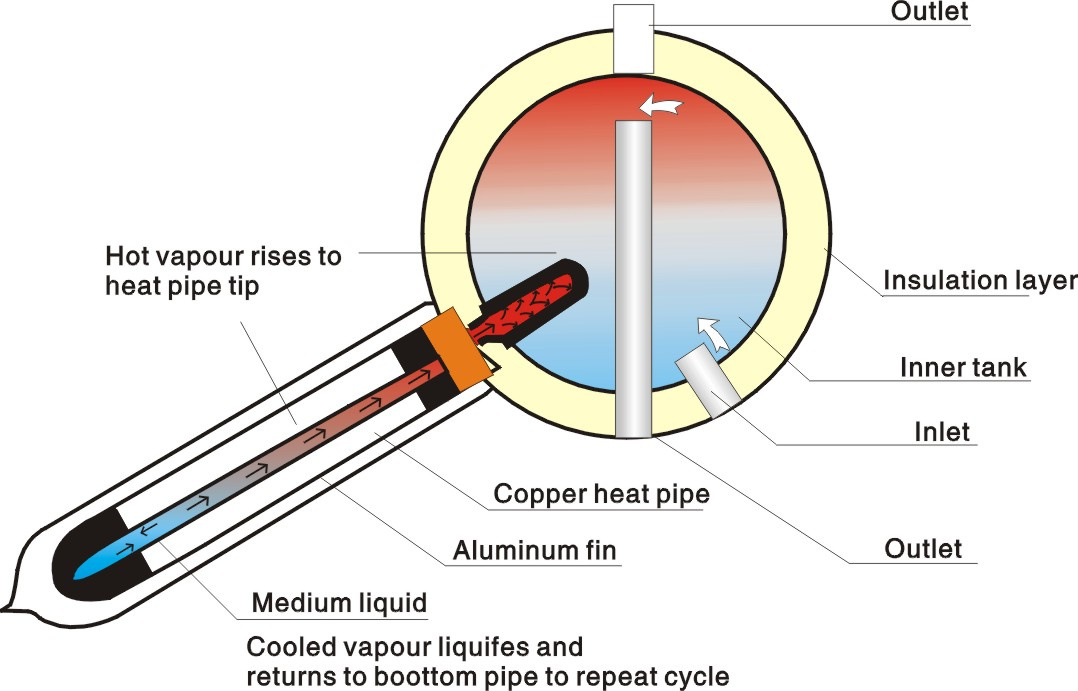

Thermosiphon solar collector provides heat through efficient copper coil. It is different from normal water heater, water can be put directly in collector but adding heat oil. When cold water goes through copper heat pipe, it will be heated by heated oil. There is no water entering such kinds of collector so that can avoid corrosion and rust. Thermosiphon collector is not allowed to be connected directly with pressure water.

Tank installation is subject to local area. Circled thermosiphon solar collector system is suitable for single or multiple solar system, for example, family solar water heater, solar water swimming pool and solar water furnace system. It is the best choice in cold area or poor water quality areas.


Three target vacuum tube performance and specification
Tube structureAll-glass double deck co-axial structure
Glass materialHigh borosilicate 3.3 glass
Outer tube diameter and glass thicknessΦ47±0.7mm;Glass thickness 1.6+0.15mm
Φ58±0.7mm;Glass thickness 1.6+0.15mm
Φ70±0.7mm;Glass thickness 2.0+0.15mm
Inner tube diameter and galss thicknessΦ37±0.7mm;Glass thickness 1.6+0.15mm
Φ47±0.7mm;Glass thickness 1.6+0.15mm
Φ58±0.7mm;Glass thickness 1.6+0.15mm
Tube length800mm,1200mm,1500mm,1600mm,               1800mm,1900mm,2000mm,2100mm etc
Absorption coating propertyCoating materialCU/SS-ALN(H)/SS-ALN(L)/ALN
Sediment methodThree target magnetron spputtering plation
AbsorptivityA=0.94~0.96(AM1.5)
Emission ratioE=0.04~0.06(80ºC±5ºC)
Vacuum degreeP≤5.0×10-3 (PA)
Stagnation temperature (temperature inside of empty evacuated tubes)260~350ºC
Average heat lossULT0.4~0.6W/(M2ºC)
Hail resistanceΦ35mm
Pressure-endure1MPa
