| Prod Model: |
ST-A23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
SUS304-2b with Food Grade |
| Outer Tank: |
Galvanized Steel |
| Insulation: |
High Density Polyurethane Foam 50mm |
| Heat Pipe: |
Red Copper |
| Evacuated Tube: |
Three Target Vacuum Tube |
| Aluminum Fin: |
1620mm Length |
| Frame: |
Galvanized Steel |
| Capacity: |
80-500L |
| Warranty: |
5 Years for Whole System, 15 Years for Tube |
| Life Span: |
10 Years |
| Application: |
Water Heater Controller |
| Rated Voltage: |
12V |
Product Description

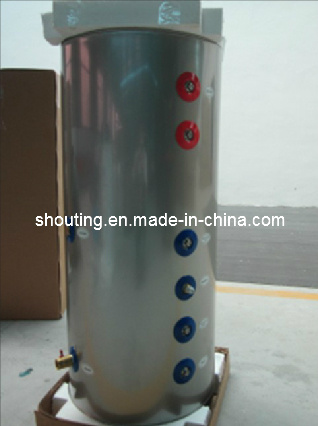

This kind of separate pressurized solar water heater is with CE certificate. We can ensure the quality.
Usually, this kind of tank is together with heat pipe solar collector(s), and work station to form the separate pressurized solar water heating system.
Separated pressurized solar water heating system is very suitable for villa, household, small unit, and solar project.
The white color makes the tank much cleaner and more beautiful.
We use SUS304-2B food grade stainless steel as the inner/outer tank material. It can keep the clean water as clean.
No copper coil inner tank.
The tank can bear 6 bar pressure, and it is safer.
You can directly put the tank on the floor. Or if you like, we can install supporting feet in the bottom of the tank, so that the tank will not touch the floor.
You can put the tank everywhere you like, such as basement.
2. Applications:
For separated pressurized solar heating system
For villa
For project
| Three target vacuum tube performance and specification |
| Tube structure | All-glass double deck co-axial structure |
| Glass material | High borosilicate 3.3 glass |
| Outer tube diameter and glass thickness | Φ47±0.7mm;Glass thickness 1.6+0.15mm |
| Φ58±0.7mm;Glass thickness 1.6+0.15mm |
| Φ70±0.7mm;Glass thickness 2.0+0.15mm |
| Inner tube diameter and galss thickness | Φ37±0.7mm;Glass thickness 1.6+0.15mm |
| Φ47±0.7mm;Glass thickness 1.6+0.15mm |
| Φ58±0.7mm;Glass thickness 1.6+0.15mm |
| Tube length | 800mm,1200mm,1500mm,1600mm, 1800mm,1900mm,2000mm,2100mm etc |
|
| Absorption coating property | Coating material | CU/SS-ALN(H)/SS-ALN(L)/ALN |
| Sediment method | Three target magnetron spputtering plation |
| Absorptivity | A=0.94~0.96(AM1.5) |
| Emission ratio | E=0.04~0.06(80ºC±5ºC) |
| Vacuum degree | P≤5.0×10-3 (PA) |
| Stagnation temperature (temperature inside of empty evacuated tubes) | 260~350ºC |
|
| Average heat loss | ULT0.4~0.6W/(M2ºC) |
| Hail resistance | Φ35mm |
| Pressure-endure | 1MPa |
