| Prod Model: |
CT-NP02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
SABS Approved |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description
Characteristics:

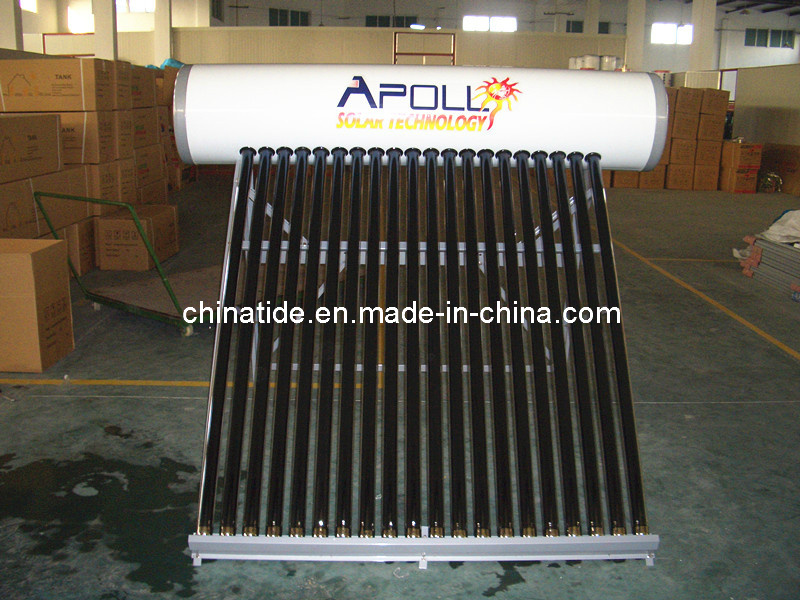

This type uses all-glasses evacuated tubes as the solar collector for absorbing and transferring the sun energy into heat energy. The high absorption and low emittance rate of chinatide' vacuum tube layer coating is unique. Depending on the different density between hot water and cold water, the water flowing cycle is crated in the tube. Hot water flows automatically upwards while the cold water flows down. The water in the storage tank will be heated from this natural circulation.
Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm
SUS304-2B/0.41mm
Insulation: High density polyurethane foam 50mm
Vacuum tube: 47*1500mm/58*1800mm
SS-CU-AIN/ALN or AL-N-AL coating
Bracket: Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Accessories: UV stabilized high temperature silicon
Capacity: 100L 150L 200L 250L 300L(according to customers' requirement)
| Type | Area(M2) | Vacuum tube | Volume(L) | GrossWeight (KG) | 20GP/40GP/40HQ Loading Qty(sets) |
| Φ(mm) | Length(mm) | Qty(pcs) |
| CT-NP02-10 | 1.224 | 58 | 1800 | 10 | 100 | 53 | 84/173/203 |
| CT-NP02-15 | 1.904 | 58 | 1800 | 15 | 150 | 73 | 61/116/142 |
| CT-NP02-20 | 2.584 | 58 | 1800 | 20 | 200 | 90 | 48/84/112 |
| CT-NP02-25 | 3.264 | 58 | 1800 | 25 | 250 | 118 | 40/77/92 |
| CT-NP02-30 | 3.944 | 58 | 1800 | 30 | 300 | 136 | 34/68/82 |
Zhejiang Chinatide Solar & Luminous Energy Co., Ltd. Was founded in 2001. Our company specializes in the import and export. We carried out practical business in 2008 though newly established division, and have set up good business relationship with customers. Our main markets are in Europe, meanwhile, in order to expand our company's future business, we will gradually enlarge the scope of business to America, Oceania and Africa. We can meet more demands with good customer service.
We have a team composed of talented people and high-quality businessmen. We continue to promote excellent performance. We sincerely hope to win customer satisfaction with first-class products and excellent service.
