| Prod Model: |
GWF-PCIe05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Chipset: |
Ralink Rt5390 |
| Type: |
Wireless |
| Interface: |
PCI Express |
| Transmission Rate: |
150Mbps |
| Application: |
Desktop, Laptop, STB, IP TV, IP Camera |
Product Description

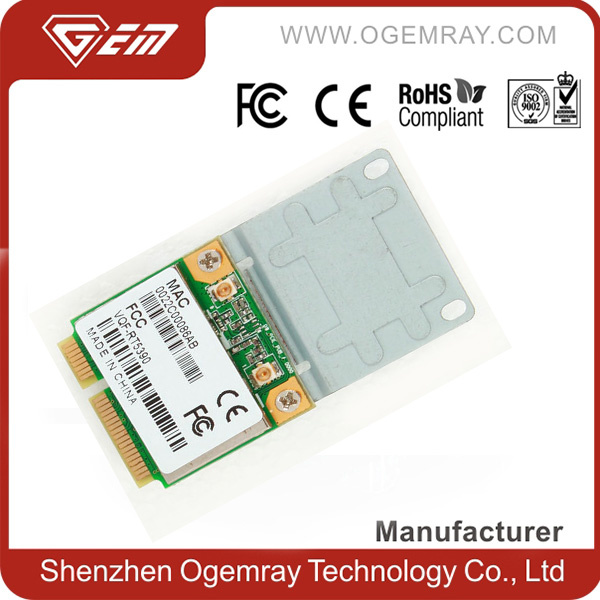

Mini PCI express WiFi module
Two antenna visa IPEX sockets
Hi-speed 150Mbps PCIe WiFi module
Operates in 2.4GHz SIM band
Size: 30x26.8x3.0mm
Weight: 8.5g
Features:
Standards
IEEE 802.11 b/g/n standards compliant
Antenna
IPEX socket for external antenna
Option 1: One antenna for 1T1R
Option 2: One antenna for Tx, the other for Rx.
Supported OS
Windows XP/Vista/2000, MAC OS and linux.
Security
WEP 64/128, WPA, WPA2
Frequency
Range
802.11b/g/n
USA (FCC): 2.412GHz ~ 2.462GHz
Europe (ETSI): 2.412GHz ~ 2.472 GHz
Japan (TELEC): 2.412GHz ~ 2.472GHz
Number of
Selectable
Channels
802.11b/g/n:
USA (FCC) 11 channels;
EU (ETSI) 13 channels;
Japan (TELEC) 13 channels
Data Rate
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n(20MHz): MCS0~7, up to 72.22Mbps
802.11n(40MHz): MCS0~7, up to 150Mbps
Transmit Power
(EIRP)
802.11b: 18+/-1.5 dBm (Typical)
802.11g: 14+/-1.5 dBm (Typical)
11n-HT20: 14+/-1.5dBm
11n-HT40: 14+/-1.5dBm
Receiver
Sensitivity
11b 11Mpbs: -88dBm
11g 54Mpbs: -72dBm
11n-HT20 72.22Mpbs: -69dBm
11n-HT40 150Mpbs: -66dBm
Environment
Specifications
Operating Temp: 0° C to 45° C
Storage Temp: -20° C to 70° C
Operating Humidity: 10% to 90% Non-Condensing
Storage Humidity: 5% to 90% Non-Condensing
Power Requirement
DC 5.0V ± 5%
