| Prod Model: |
GWF-1C6T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Black, |
| Peak Rate: |
150Mbps |
| Size: |
95X26X13.2 Mm |
| Antenna: |
SMA Detachable 2dBi or 5dBi |
| Main Chipset: |
Ralink Rt3070 |
| Certification: |
FCC, CE, RoHS |
| Type: |
Wireless |
| Interface: |
USB |
| Transmission Rate: |
300Mbps |
| Application: |
Server |
Product Description

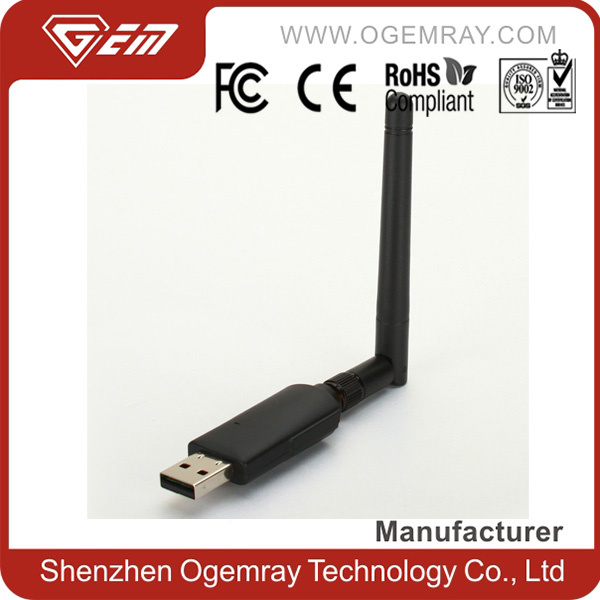

1.1T1R Mode, with 2dBi Or 5dBi external SMA antenna
2.802.11N 300Mbps wireless USB adaptor
3. Ralink RT5372chipset
4. High peak rate WiFi adapter
5. Software AP function.
Model: GWF-1C6T
Ralink RT3070(DC/DC) MAC/BBP
Main Features:
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
Peak rate 54Mbps, Peak throughput 27Mbps
Power management
Certification
Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX, USB-IF
Hardware
Chipset: Ralink RT5372
Host interface: USB2.0/1.1 type A (4 pin header)
LEDs; Link/Acticity
RF
Antenna: External 2dBI / 5dBi SMA antenna
Frequency: 2412~2483.5 MHz, ISM band
Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;
Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps
Software
Operation System: Windows CE/2000/XP/Vista; Linux; Mac OS X
Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage Range: DC 5.0V ± 5%
Operating Temperature: 0° C - 50° C
Storage Temperature: -20° C - 70° C
Operating Humility: RH 95% (Non-Condensing)
Storage Humidity: RH 95% (Non-Condensing)
