| Prod Model: |
RO-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Pressure |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Chemical Industry |
| RO Membrane: |
1 |
Product Description

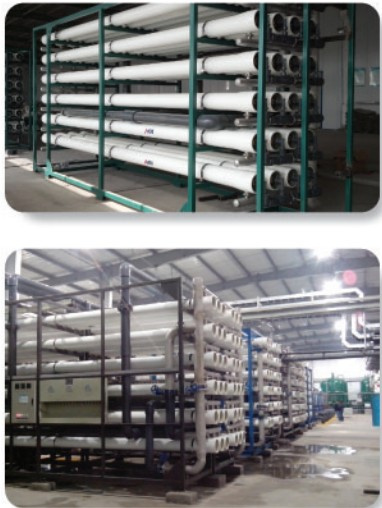

Reverse Osmosis Equipment
Overview
Reverse osmosis is the most advanced membrane separation technology in water treatment field. Its principle is that when the pressure of solution is above osmotic pressure, reverse osmosis membrane only allow water molecules to pass through the membrane, so that the solute and the solvent in the solution are separated, the salt is removed.
CSRO series reverse osmosis device adopts advanced technology and high quality configuration, which can produce high quality water, and can be used for wide water resources. The main components of the apparatus adopt internation products, which have stable and reliable performance, long life and low maintenance cost.
Characteristic
With low energy consumption of RO membrane element, reduce running cost
High recovery rate: 75-80%
Desalination rate: 95-98%
No need for big quantity of chemicals, no environmental pollution
Continuous water output, automatic operation
Standard configuration
Pretreatment device (sand filter, carbon filter and softening/dosing)
5μ M stainless steel security filters
Stainless steel high pressure pump
Glass fiber reinforced plastic shell
Polyamide composite membrane
Stainless steel high pressure pipeline
High and low pressure protection
Membrane cleaning pump, tank, filter
Centralized control device
Typical Applications
Process water
Boiler make-up water
Safe drinking water
Ion-exchange pretreatment
Recycling water treatment
|
Model |
Water Output
(m 3 /h) |
Power
(KW) |
Size:length X width X height (mm) |
Weight
(kg) |
|
CSRO-0.5 |
0.5 |
1.5 |
1500×600×1400 |
180 |
|
CSRO-1 |
1 |
2.75 |
1500×700×1500 |
260 |
|
CSRO-2 |
2 |
3.75 |
2500×700×1500 |
370 |
|
CSRO-3 |
3 |
4.75 |
2500×800×1600 |
480 |
|
CSRO-4 |
4 |
6.25 |
2500×1000×1600 |
650 |
|
CSRO-5 |
5 |
6.6 |
2500×1000×1600 |
720 |
|
CSRO-6 |
6 |
9.0 |
3300×800×1600 |
820 |
|
CSRO-8 |
8 |
12.5 |
3300×800×1800 |
900 |
|
CSRO-10 |
10 |
13.2 |
3300×800×1800 |
1070 |
|
CSRO-15 |
15 |
18 |
4500×800×1800 |
1380 |
|
CSRO-20 |
20 |
21.5 |
4500×1200×2000 |
1780 |
|
CSRO-30 |
30 |
35.5 |
7000×1500×2500 |
2460 |
|
CSRO-40 |
40 |
48 |
7000×1800×2500 |
2780 |
|
CSRO-50 |
50 |
56 |
7000×2000×2500 |
2670 |
